Dell 1905 recapped- need help with shields

dellphinus

New Member

Join Date: Dec 2010

Posts: 2
#1

Dell 1905 recapped- need help with shields

12-27-2010, 03:03 PM

Greetings,
I successfully recapped/restored a Dell 1905FP monitor. It failed three weeks ago. I took it apart, found the badcaps site, ordered caps, and just got them installed last night.

It works now.

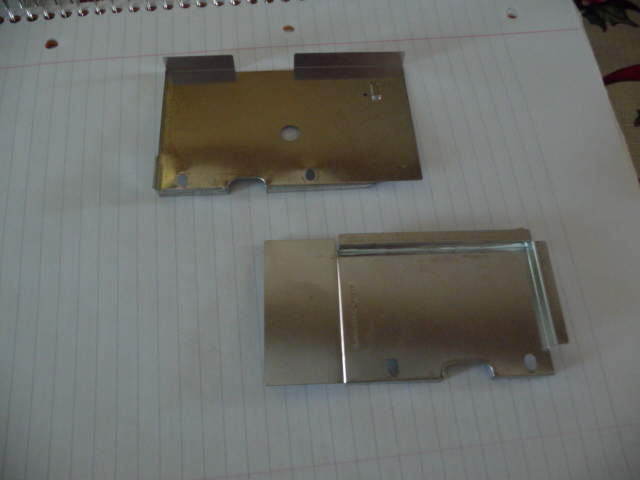

But I have a slight problem- it's been long enough since dis-assembly that I cannot figure out how the two shields were attached to the boards. Anyone have pics with the shields installed? Photo of the shields attached.

Thanks!
DP
Attached Files
Tags: None
alexanna

Member

Join Date: Mar 2010

Posts: 1346
#2

12-27-2010, 03:15 PM

Re: Dell 1905 recapped- need help with shields

They look like covers for ccfl wiring /plugs. Or possibly covers for USB ports.
Post a picture of monitor partially assembled without the back cover on.
Al.
