    Sony SA-CT60 soundbar component ID

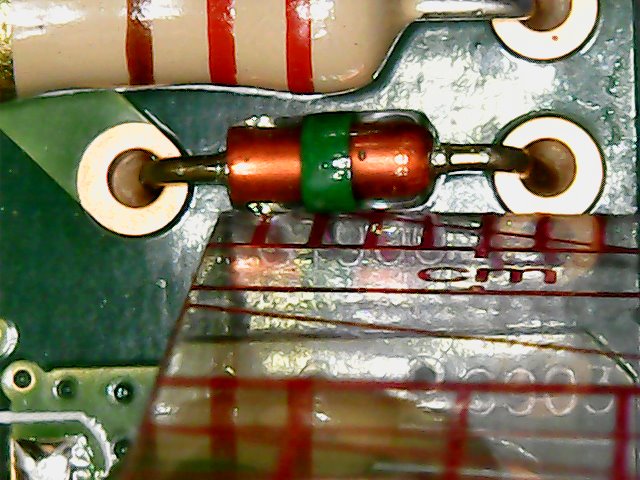

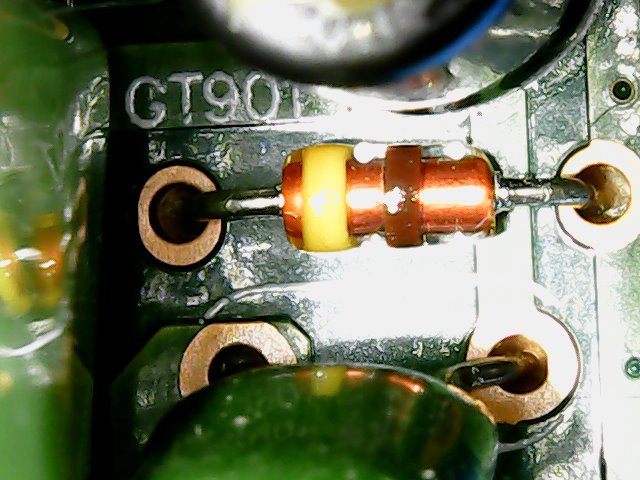

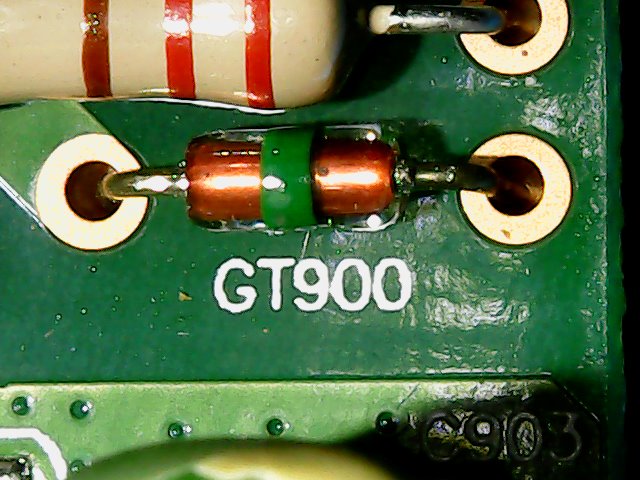

    I have two components on the board that have designator GT that I am unfamiliar with. They look like glass diodes but diodes on this board are labeled with D. My search so far leads me to suspect they might be gas discharge tubes for transient suppression but they don't look quite like any gas tubes I have seen before. I hope somebody will know what they are.







    They are about 4mm long and each has different color bands.
    Attached Files
    Tags: None
    • SMDFlea
      Super Moderator
      • Jan 2018
      • 20781
      • UK
      #2
      Re: Sony SA-CT60 soundbar component ID

      They`re Gas discharge Tubes for overvoltage surge protection.
      All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

        Comment

        • jssamp
          Member
          • Jan 2022
          • 22
          • U.S.
          #3
          Re: Sony SA-CT60 soundbar component ID

          Would you happen to know what the color bars mean?

            Comment

            • R_J
              Badcaps Legend
              • Jun 2012
              • 9535
              • Canada
              #4
              Re: Sony SA-CT60 soundbar component ID

              SPG spark gap. The color bar is the DC spark-over voltage rating. Here is one brand
              Attached Files
              Last edited by R_J; 04-13-2022, 07:01 PM.

                Comment

                • jssamp
                  Member
                  • Jan 2022
                  • 22
                  • U.S.
                  #5
                  Re: Sony SA-CT60 soundbar component ID

                  Thank you, R_J, I've read up on SPG and it is a perfect fit. Knowing what the component is and what it does is helping me figure out the circuit.
