    Estudiar Vizio M470NV TV

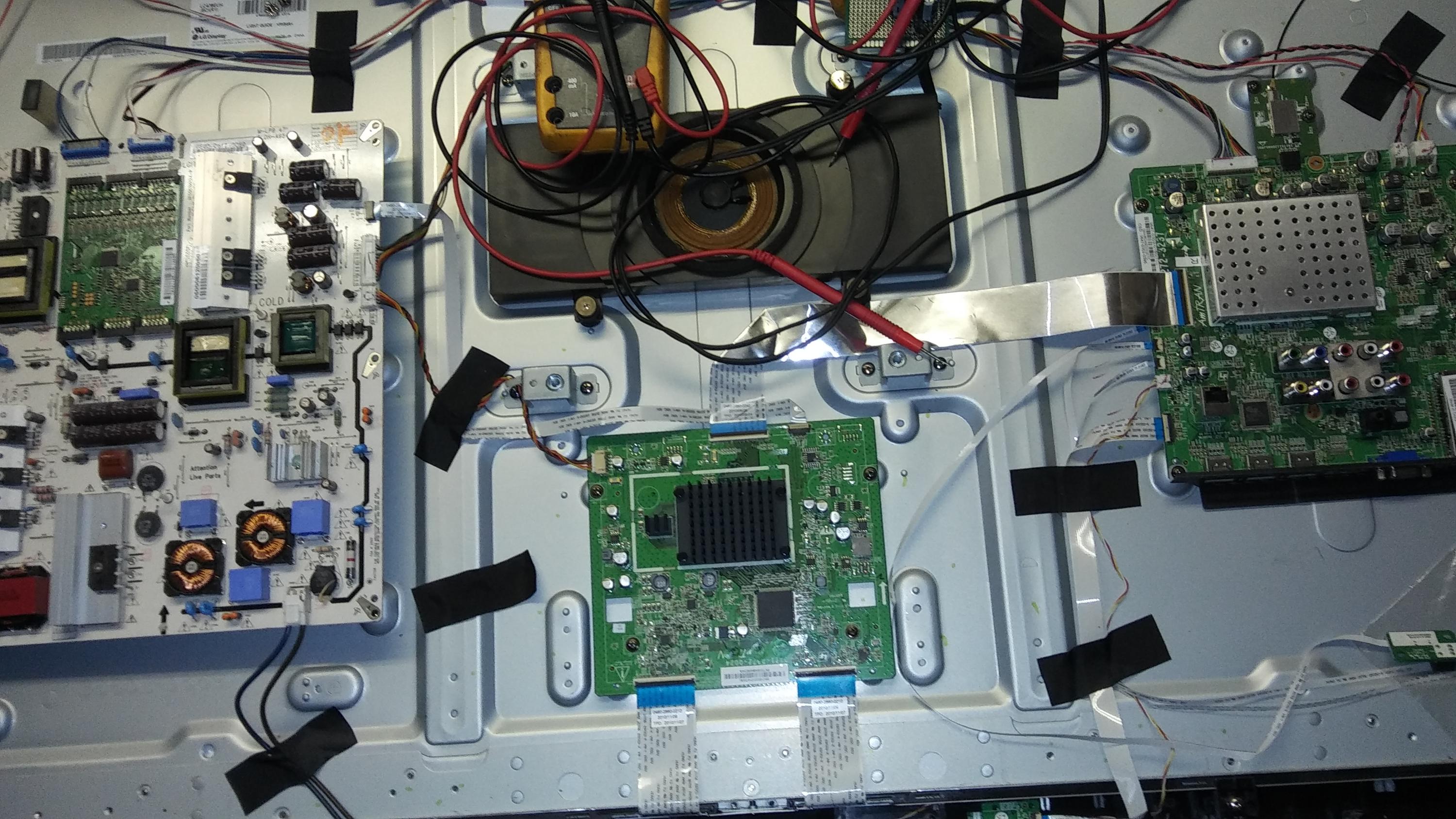

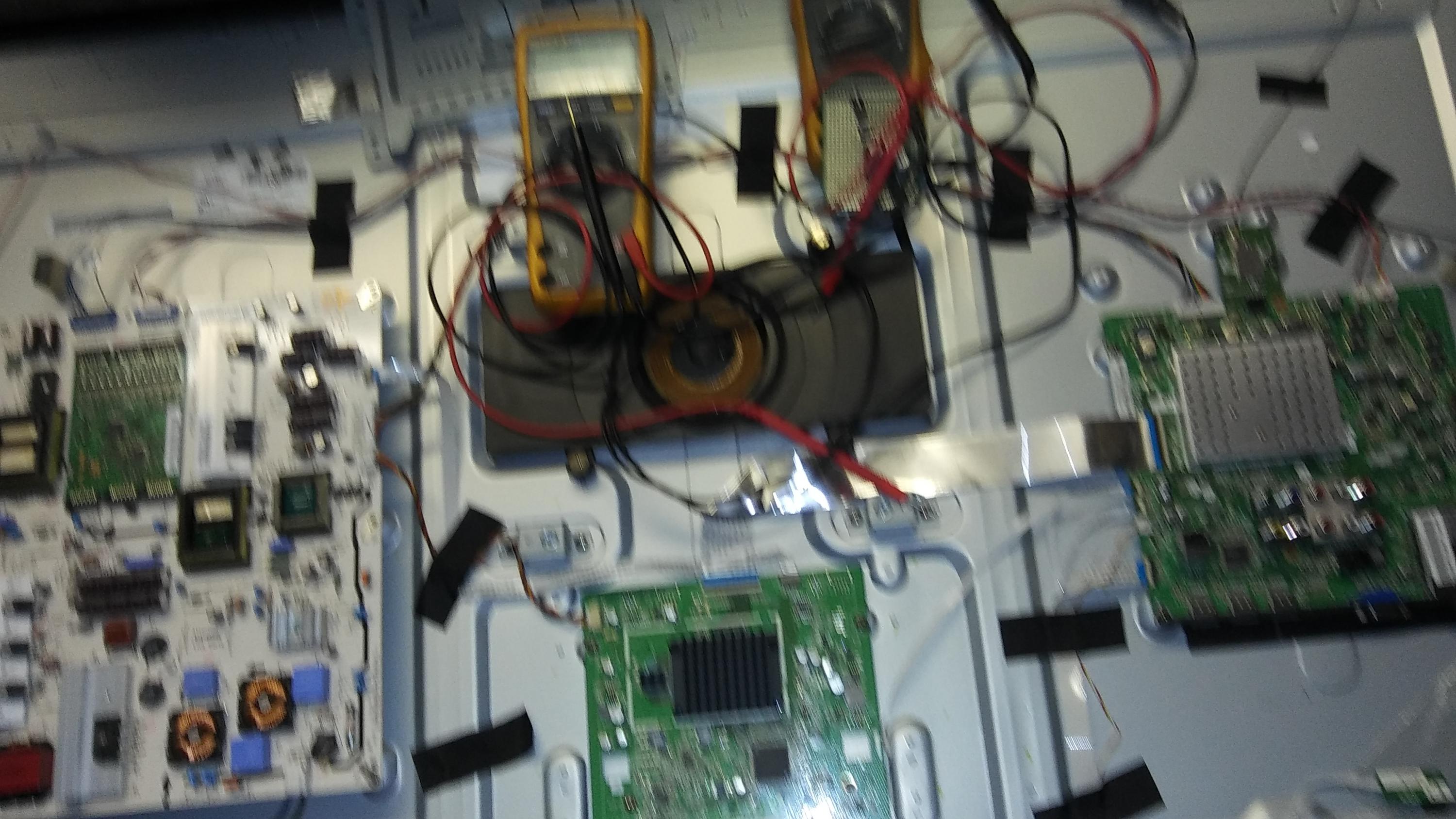

    I have a (Tengo un trabajo) Vizio M470NV, nothing to do (Nada que hacer) I try to autopsy(autopsia) it.

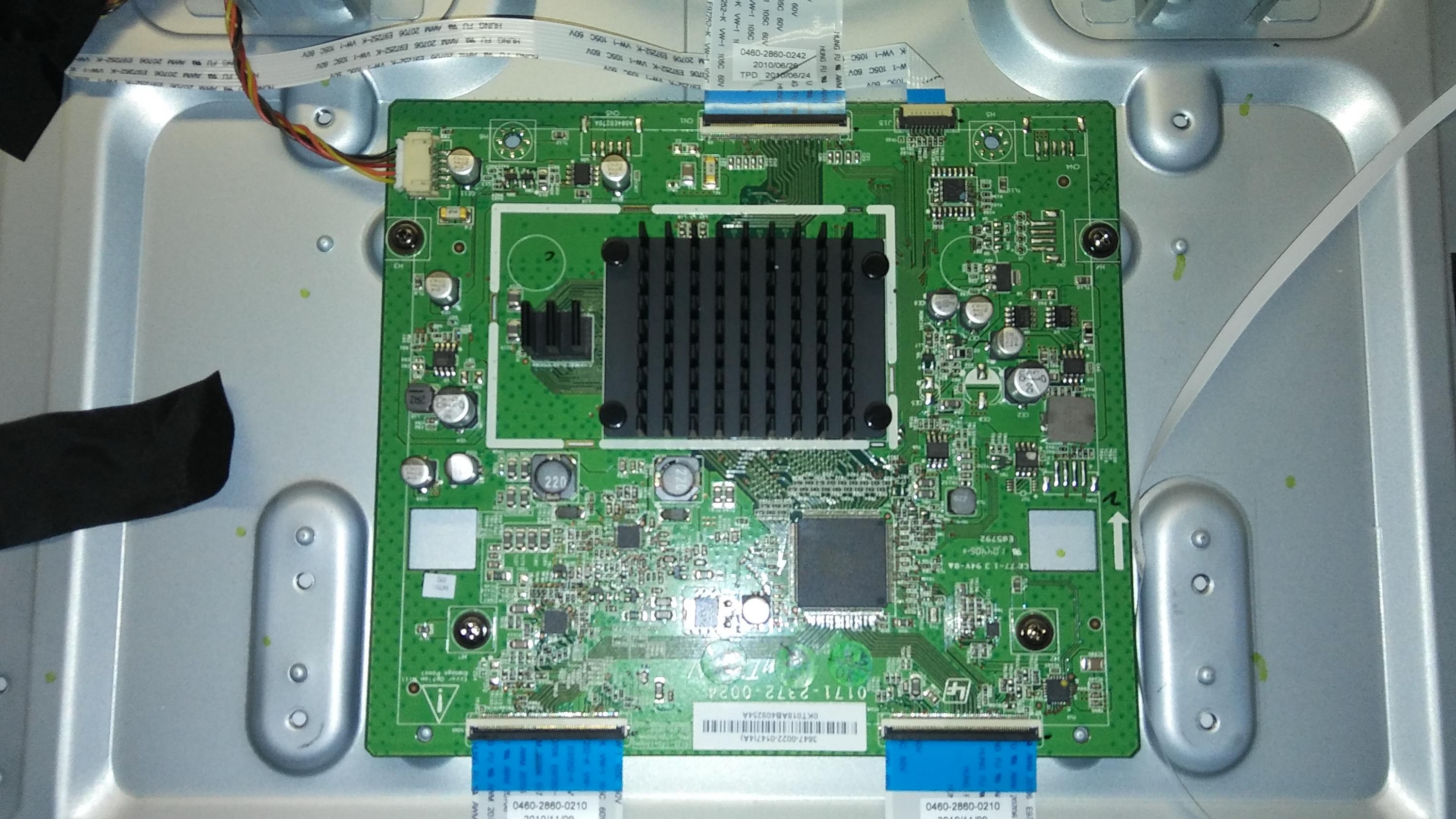

    Why is this TV, it because this TV has a feedback from T-con PCB , It means if screen is broken the TV won't work.

    ¿Por qué es este televisor, porque este televisor tiene una retroalimentación de T-con PCB, significa que si la pantalla está roto, el televisor no funcionará.

    ------------------------------------------------------------------------------------------------
    I hope you guy can understand that I am learning Spanish for make a living.
    Attached Files
    Last edited by capwizard; 03-18-2017, 08:19 AM.
