    MOSFET identification

    Please, help me identify what channel is this FET.
    It was found in a Zealot S-78 bluetooth speaker. I will appreciate the datasheet as I could not lay my hand on any

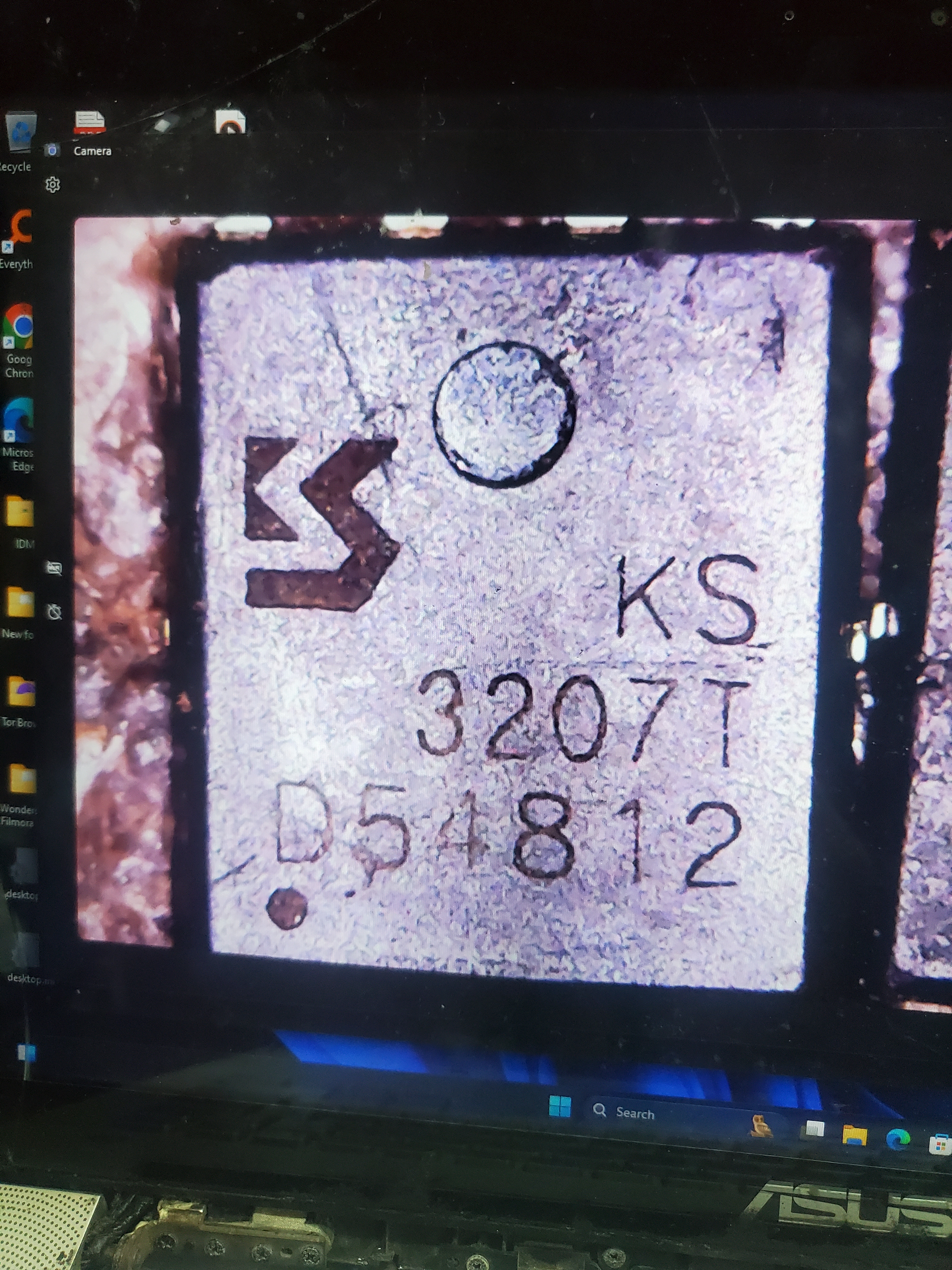

    Attached is the image of the FET.
    Attached Files
    Tags: None
    • R_J
      Badcaps Legend
      • Jun 2012
      • 9532
      • Canada
      #2
      Looks to be Kwansemi, looks like it is the KS3207NAT (PDFN5060), the KS3207MAT is (PDFN3333) different package
      Attached Files
      Last edited by R_J; 09-04-2024, 06:08 PM.

        Comment

        • Zilicon
          Senior Member
          • Nov 2020
          • 141
          • Nigeria
          #3
          Originally posted by R_J
          Looks to be Kwansemi, looks like it is the KS3207NAT (PDFN5060), the KS3207MAT is (PDFN3333) different package
          R_J to the rescue!
          thanks a lot bruv
