    Help identifying a component/circuit

    Hi. this is my father tensiometer. it that drives 6v and someone put a 12v charger on it.

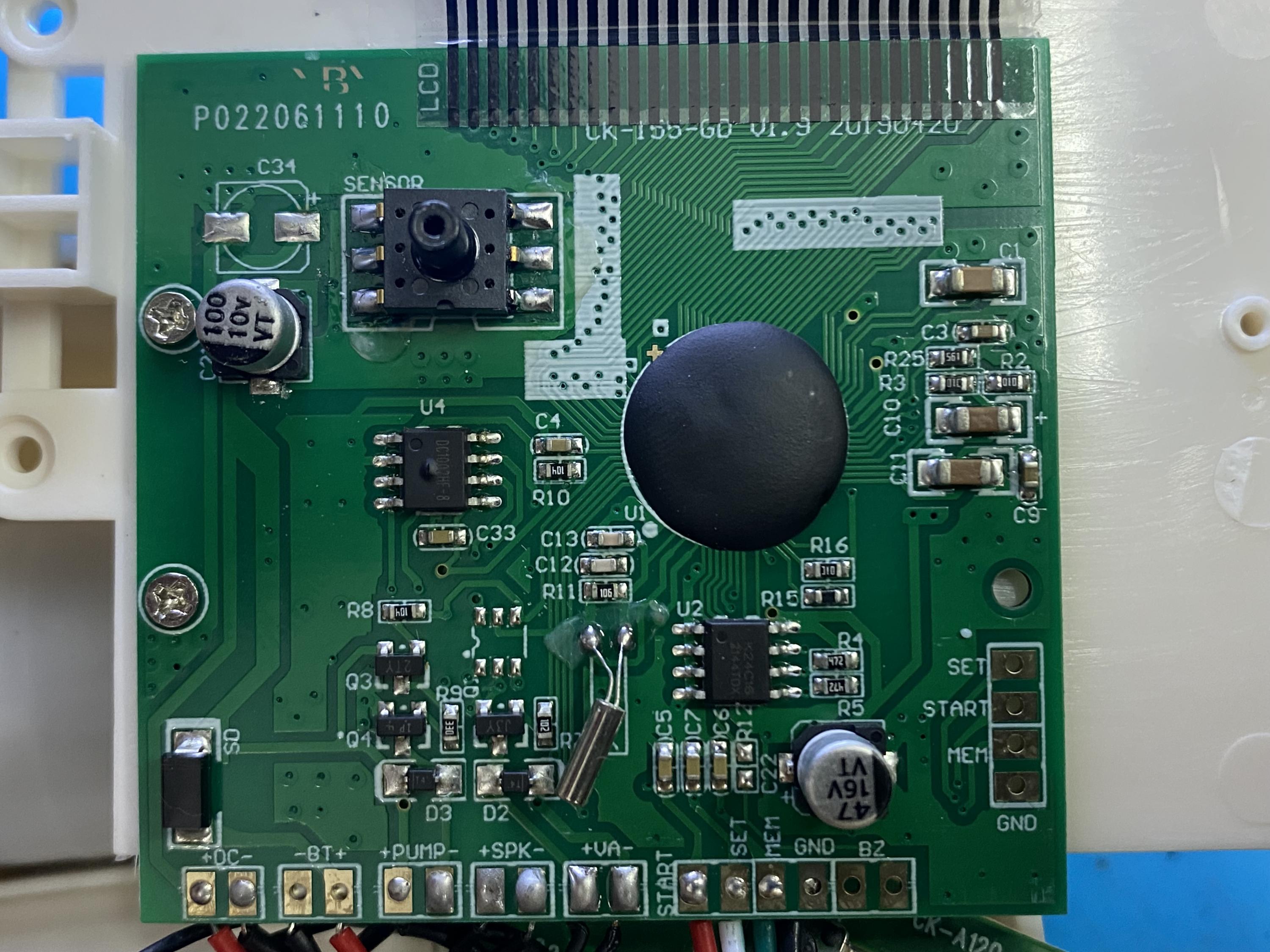

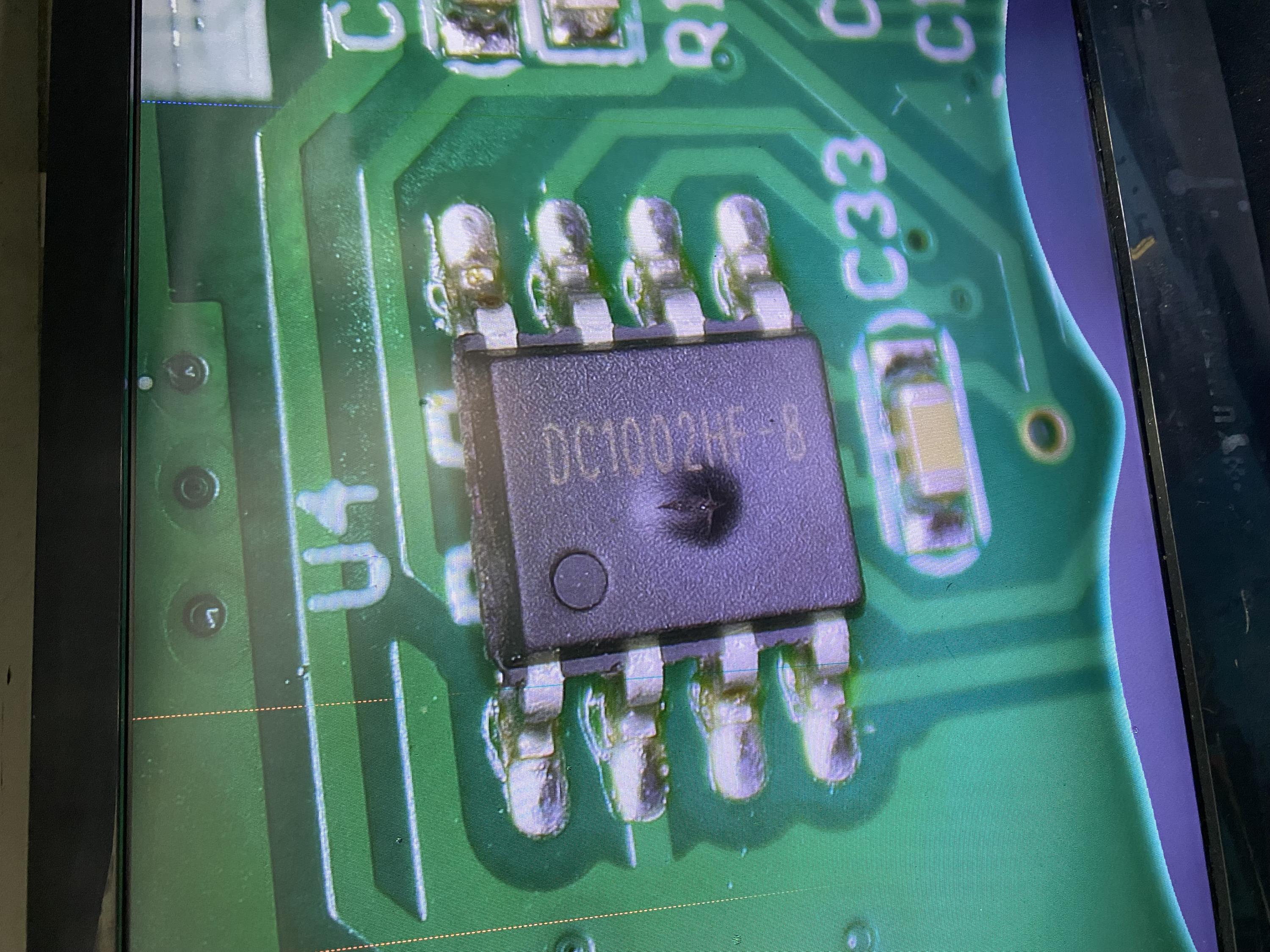

    i have a problem identifying this componet and circuit:
    really apreciate if you guys could help me with this one, thanks in advante
