    Pics of my troubled boards #4

    PC Chips 726MRT
    v1.2A

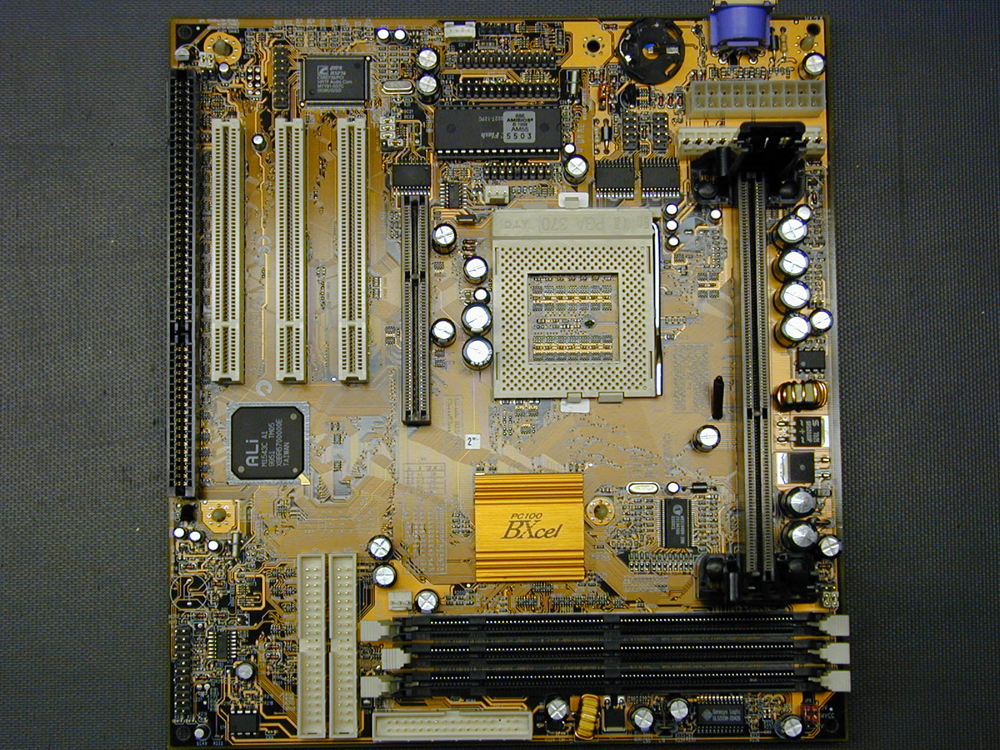

    I know it's a P.O.S., but it has given 3 years of great service and is configurable for different proc generations. I have two of these in service. I even saved my driver disk, because I know from previous boards of theirs I've worked on, they are a bitch to get correct drivers for. One board has the AMR modem and I have to use the other board's CD for its drivers. Damn I can only imagine if I didn't have the second board to use the driver disk to get the modem to work. Whew! Good upgrade board after you get tired of the Slot 1 and want to put a PIII pull in the socket. Of course, recapping is a PITA with the sizes they use and placement.

    Material list:

    1500uF 6.3V (8) Canicon
    1000uF 10V (7) G-Luxon
    470uF 16V (10) G-Luxon
    100uF 16V (2) G-Luxon
    22uF 25V (1) G-Luxon
    10uF 25V (14) G-Luxon
    Attached Files
    Tags: None
    • Topcat
      The Boss Stooge
      • Oct 2003
      • 16956
      • United States
      #2
      Re: Pics of my troubled boards #4

      "Canicon"
      That's a brand I dont ever remember seeing....
      <--- Badcaps.net Founder

      Badcaps.net Services:

      Motherboard Repair Services
      ----------------------------------------------
      Badcaps.net Forum Members Folding Team
      http://folding.stanford.edu/
      Team : 49813
      Join in!!
      Team Stats

        Comment

        • axlmastr
          Senior Member
          • Aug 2005
          • 158
          #3
          Re: Pics of my troubled boards #4

          @Topcat

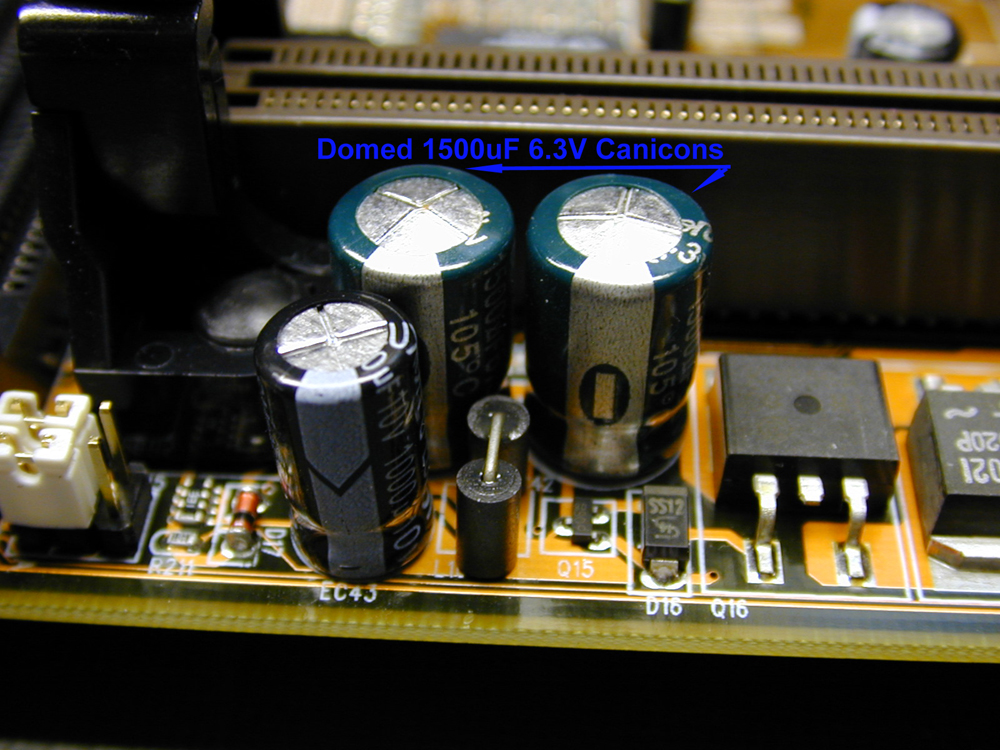

          I'll post a pic of the elusive Canicon when I re-cap the board. It's real!

            Comment

            • kc8adu
              Super Moderator
              • Nov 2003
              • 8832
              • U.S.A!
              #4
              Re: Pics of my troubled boards #4

              canicon are a well known crap brand.
              not a common as others but i have seen lots of bad ones.
              i pulled some from a video card last week.i will see if i can find them and post a pic.

                Comment

                • yanz
                  Badcaps Veteran
                  • Nov 2004
                  • 910
                  #5
                  Re: Pics of my troubled boards #4

                  i have them on a celeron motherboard (tx?). 10 x 1000uF 6.3v. bulged - leaked.
                  days are so short when you actually do something..
