    insignia ns-50d550na15

    Hello All!
    Would anyone have a schematic/service manual for an insignia ns-50d550na15 ?
    I have some wires detached from the infrared sensor plug and need to identify their locations to reattach.

    Many Thanks
    Tags: None
    • diif
      Badcaps Legend
      • Feb 2014
      • 6978
      • England
      #2
      Re: insignia ns-50d550na15

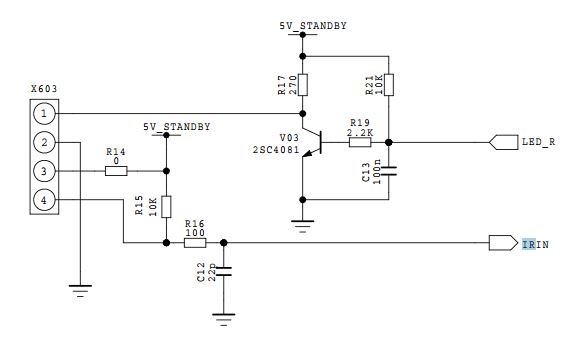

      Does this help ?
      Attached Files

        Comment

        • Andrew F. Ali
          Badcaps Legend
          • Jan 2014
          • 2450
          • Trinidad & Tobago
          #3
          Re: insignia ns-50d550na15

          Originally posted by diif
          Does this help ?
          That should work.

            Comment

            • bstewara
              Member
              • Jun 2019
              • 40
              • USA
              #4
              Re: insignia ns-50d550na15

              Thank You

                Comment
