    samsung tcon board gamma ic

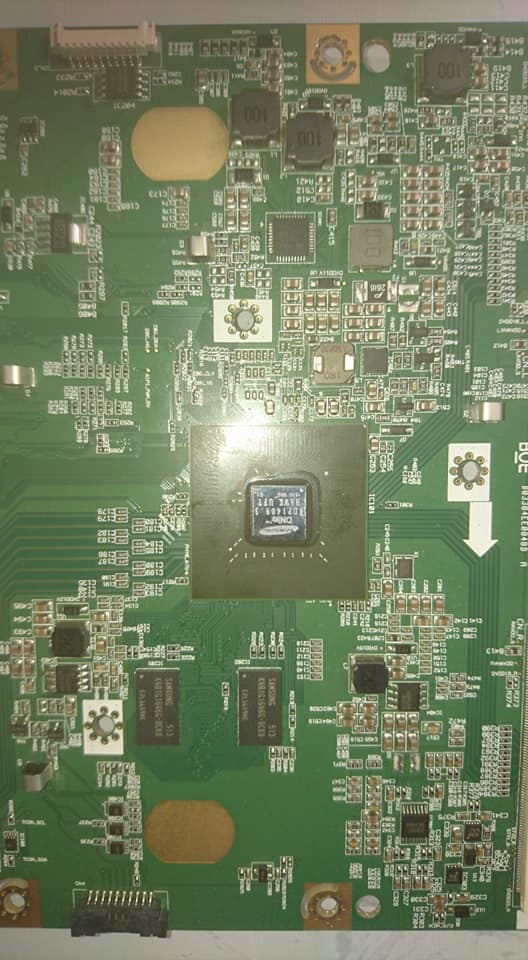

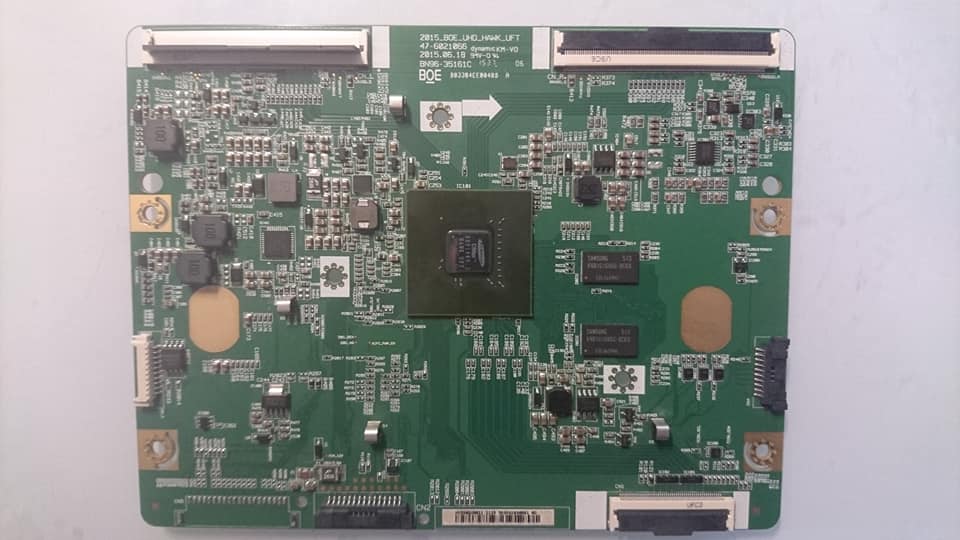

    hello i got this 55inch tv picture has green in places .i never worked on this type board be for could somone point out gamma ic on this image , board is bn96-35161c thank you guys
    Attached Files

    if you find these attachements useful please consider making a small donation to the site

    Tags: None
    • diif
      Badcaps Legend
      • Feb 2014
      • 6978
      • England
      #2
      Re: samsung tcon board gamma ic

      What's written on the top of the 48 pin ic to the left of the big ic in the middle and also on the big ic.

        Comment

        • chrislyons
          Member
          • Apr 2018
          • 39
          • United Kingdom
          #3
          Re: samsung tcon board gamma ic

          hi 48 pin is tps65177, the rest or power ic to supply board

            Comment

            • diif
              Badcaps Legend
              • Feb 2014
              • 6978
              • England
              #4
              Re: samsung tcon board gamma ic

              If you've checked the markings on the little ics then it leaves the big one in the middle. Maybe give it some hot air to see if it changess.
