    Study RCA LED55C55R120Q TV

    I have two working RCA 55" LED TVs.

    A is a LED55C55R120Q
    Serial No. 3527-LE55C55-B100491
    Jan 2014 Made in China
    Panel No. LSC550HJ03-12v...........It is a Samsung panel
    RCA 55120RE01M3393LNA5-B1 Main Board SoC is MSD3393LUM


    B is a LED55C55R120Q
    Serial No. 2505-LE55C55-A105154
    March 2013 Made in China
    Panel No. T550HVN02.1-QYE............It is a AUO panel

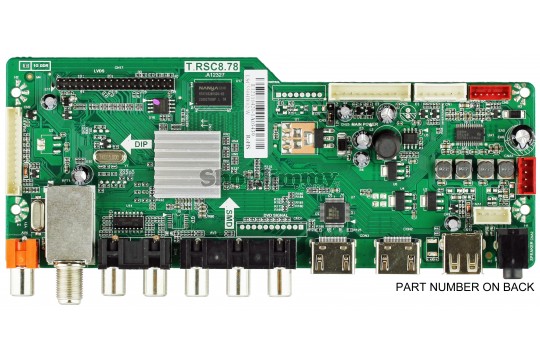

    RCA 55120RE010C878LNA0-A1 Main Board SoC is R8A66983BG

    More is over here
