    Study R8A66983BG

    System on a chip SoC : R8A66983BG

    System on a chip SoC
    A system on a chip or system on chip (SoC or SOC) is an integrated circuit (commonly called a "chip") that integrates all components of a computer or other electronic system. It may contain digital, analog, mixed-signal, and often radio-frequency functions—all on a single substrate. SoCs are very common in the mobile computing market because of their low power-consumption. A typical application is in the area of embedded systems.
    The contrast with a microcontroller, SoC integrates microcontroller (or microprocessor) with advanced peripherals like graphics processing unit (GPU), Wi-Fi module or coprocessor.

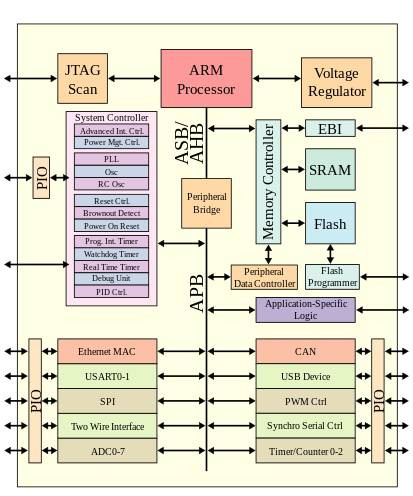

    A typical SoC consists of:
    a microcontroller, microprocessor or digital signal processor (DSP) core – multiprocessor SoCs (MPSoC) having more than one processor core
    memory blocks including a selection of ROM, RAM, EEPROM and flash memory
    timing sources including oscillators and phase-locked loops
    peripherals including counter-timers, real-time timers and power-on reset generators
    external interfaces, including industry standards such as USB, FireWire, Ethernet, USART, SPI
    analog interfaces including ADCs and DACs
    voltage regulators and power management circuits
    A bus – either proprietary or industry-standard such as the AMBA bus from ARM Holdings – connects these blocks. DMA controllers route data directly between external interfaces and memory, bypassing the processor core and thereby increasing the data throughput of the SoC.
    Attached Files
    Last edited by capwizard; 03-09-2017, 01:17 PM.
  • capwizard
    Badcaps Legend
    • Jun 2016
    • 1991
    • USA

    #2
    Re: Study R8A66983BG

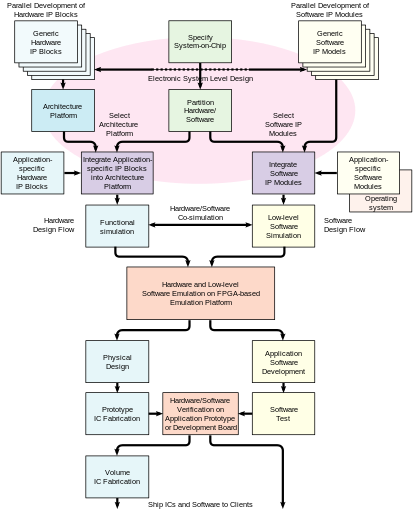

    Most SoCs are developed from pre-qualified hardware blocks for the hardware elements described above, together with the software drivers that control their operation. Of particular importance are the protocol stacks that drive industry-standard interfaces like USB. The hardware blocks are put together using CAD tools; the software modules are integrated using a software-development environment.

    Once the architecture of the SoC has been defined, any new hardware elements are written in an abstract language termed RTL Register-transfer level which defines the circuit behaviour. These elements are connected together in the same RTL language to create the full SoC design.

    With the growing complexity of chips, hardware verification languages like SystemVerilog, SystemC, e, and OpenVera are being used. Bugs found in the verification stage are reported to the designer.

    In parallel, the hardware elements are grouped and passed through a process of logic synthesis, during which performance constraints, such as operational frequency and expected signal delays, are applied. This generates a logical netlist which is a file describing the circuit as a collection of connected silicon gate elements from a library provided by the silicon manufacturer.
    Attached Files

    Comment

    • capwizard
      Badcaps Legend
      • Jun 2016
      • 1991
      • USA

      #3
      Re: Study R8A66983BG

      Renesas Electronics Corporation (ルネサス エレクトロニクス株式会社 Runesasu Erekutoronikusu Kabushiki Gaisha) is a Japanese semiconductor manufacturer headquartered in Tokyo.
      It has manufacturing, design and sales operations in around 20 countries. It was the world's largest auto semiconductor maker in 2014, and the world's largest maker of microcontrollers. It also makes mixed-signal integrated circuits and system on a chip semiconductors.

      Renesas Electronics Introduces Industry's Smallest SoCs for LCD Digital TVs with Full HD Support for the North American Market...........How about now?

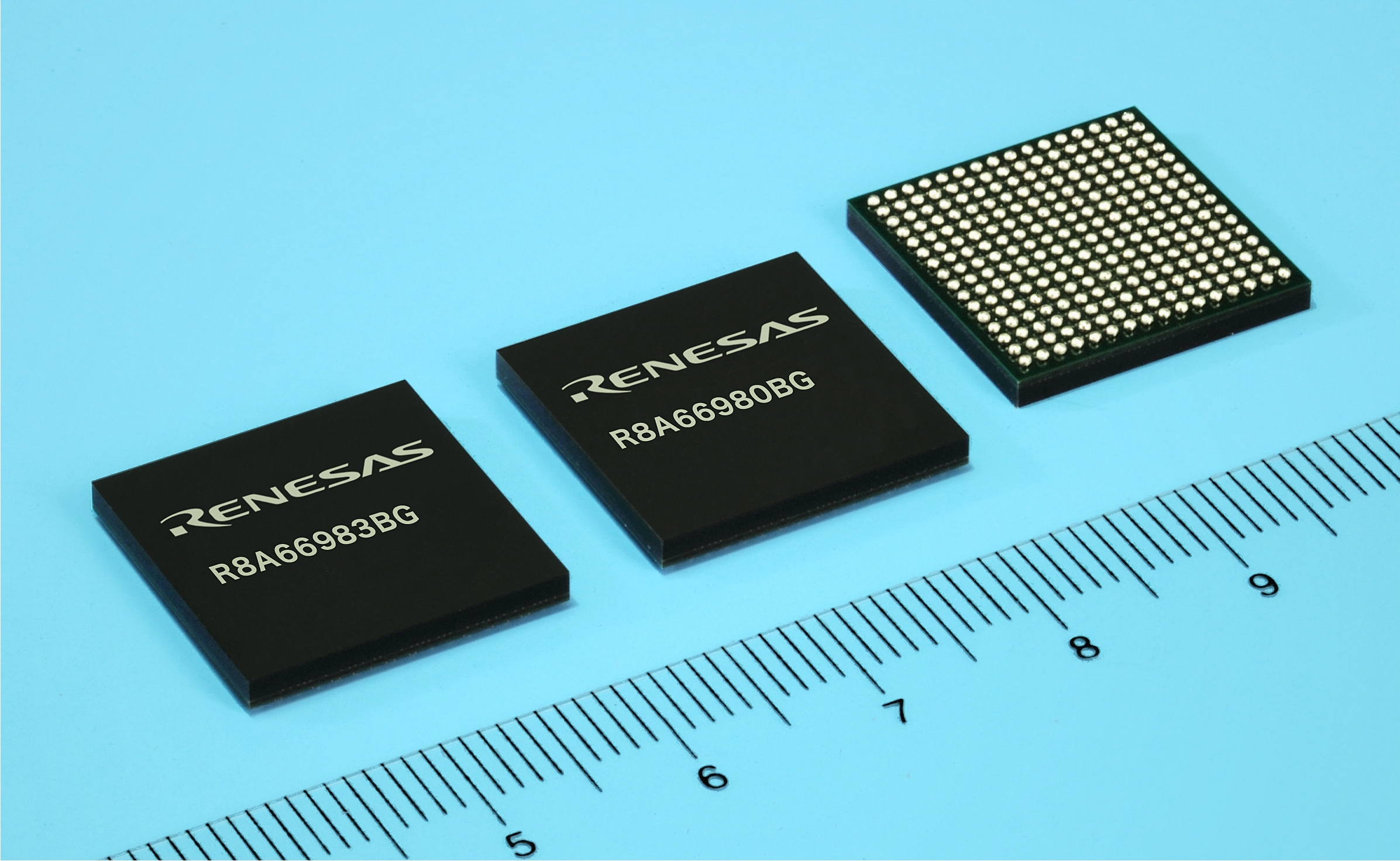

      TOKYO, November 16, 2010 — Renesas Electronics Corporation , a premier supplier of advanced semiconductor solutions, today announced the availability of two new compact and power efficient system-on-chip (SoC) products, the R8A66983BG and R8A66980BG, that integrate in a single package the main signal processing functions, such as video and audio processing, and high-picture quality required in LCD digital TVs for the North American market. The R8A66983BG SoC supports full HD, and the R8A66980BG SoC supports WXGA.

      Renesas Electronics currently mass produces the R8J66977BG (with full HD support) and R8J66975BG (with WXGA support) SoC products for LCD digital TVs for the North American market. These SoCs integrate on a single chip the main signal processing functions and high-picture quality, from demodulation of the digital broadcast signal to signal output to the LCD panel, enabling more compact product design and also reducing the number of external memory (DRAM) chips required from two to one, due to their powerful processing capability. These SoC products also effectively lower the total system cost. And now, Renesas Electronics' new R8A66983BG and R8A66980BG SoCs deliver greater miniaturization while reducing both cost and power consumption even further.
      Main features of the R8A66983BG and R8A66980BG:

      Industry's smallest SoCs for LCD digital TVs with full HD support for the North American market
      By fabricating these SoCs with a 45-nanometer (nm) process, it is possible to reduce the package size from 23 mm x 23 mm to 17 mm x 17 mm while retaining the functions of the earlier products for which they are the successors. The R8A66983BG device is the industry's smallest SoC for full HD LCD digital TVs for the North American market. This makes it possible for the system boards used in the televisions to be more compact, thereby requiring less space within the design.

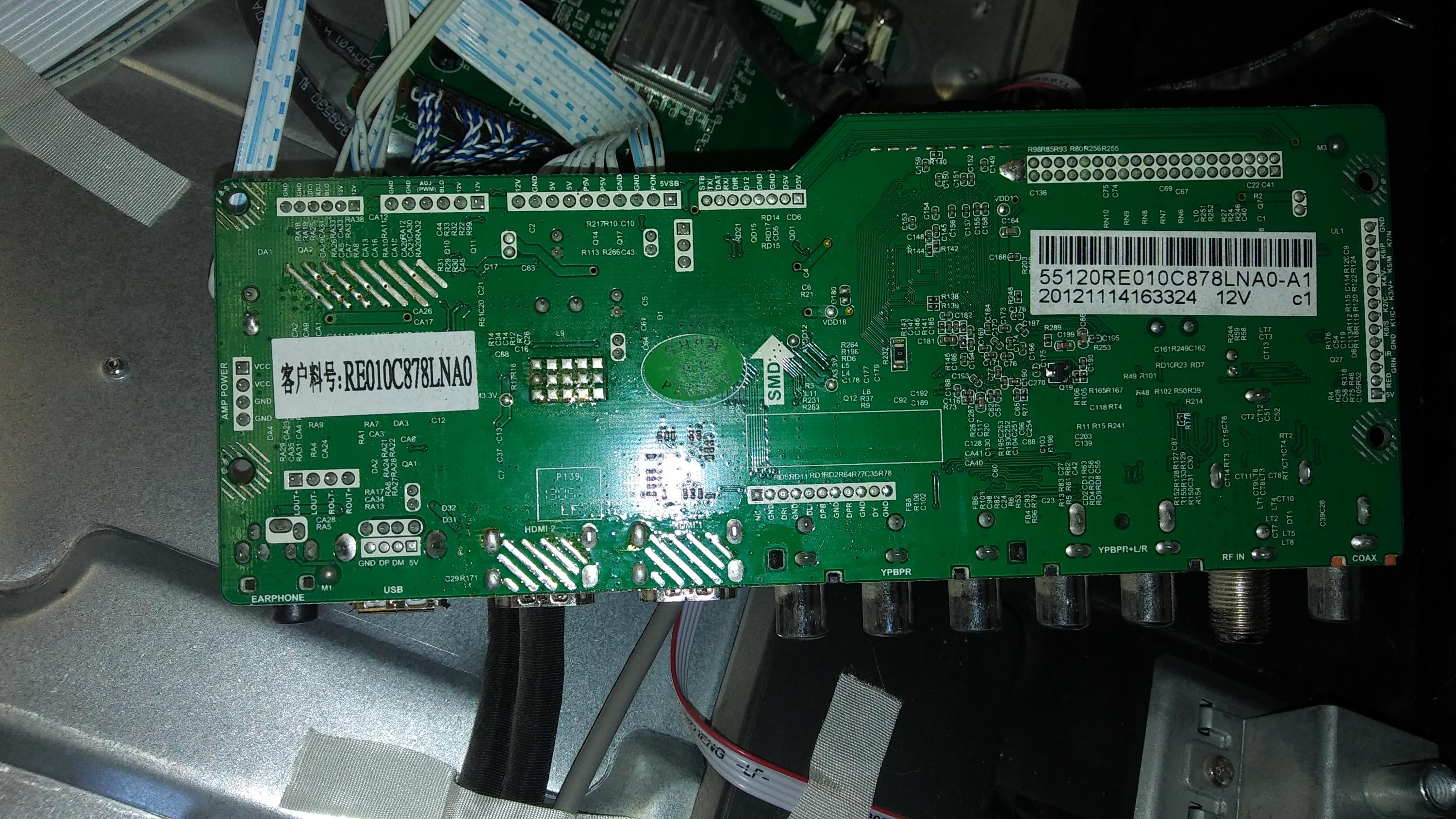

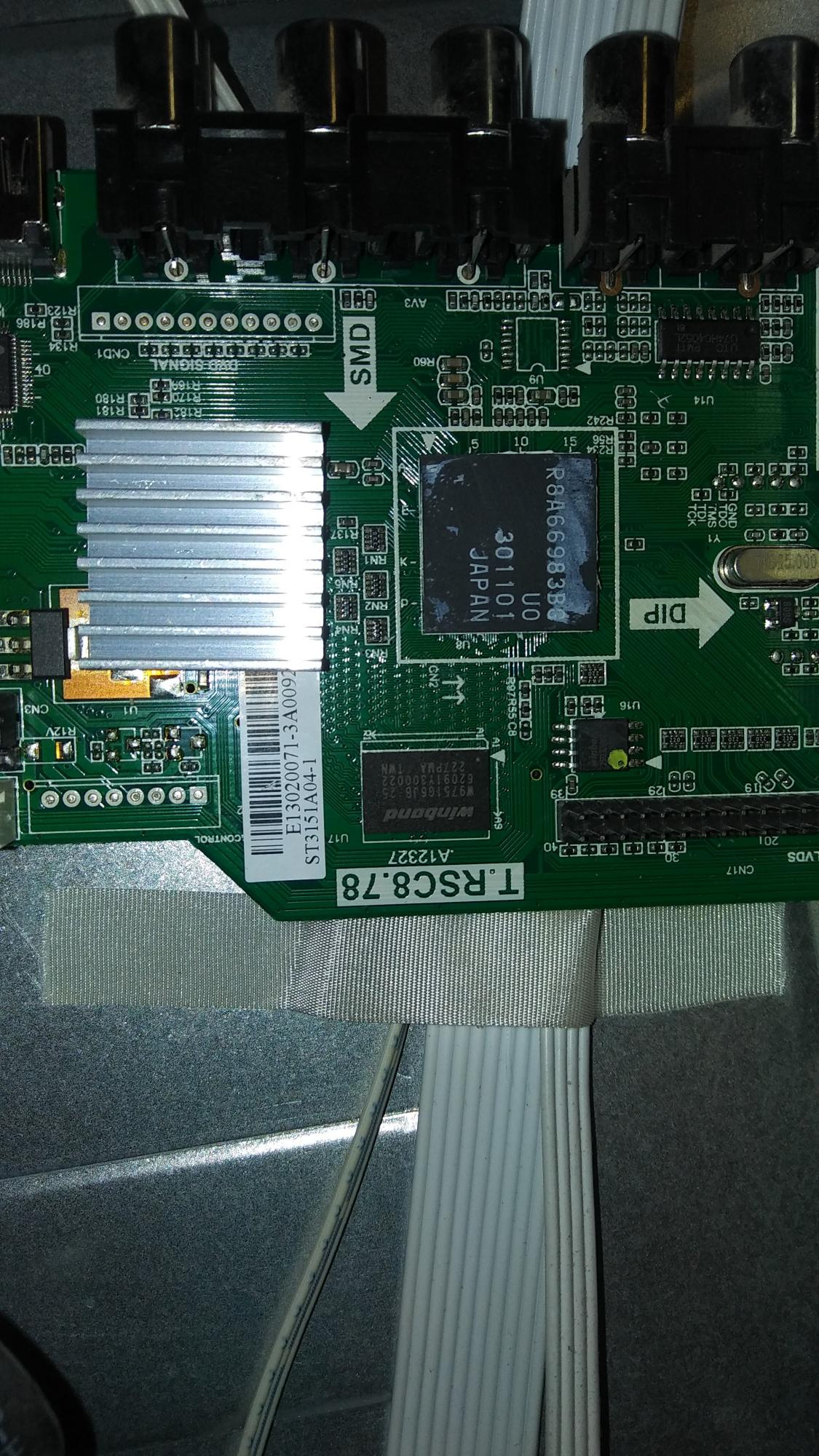

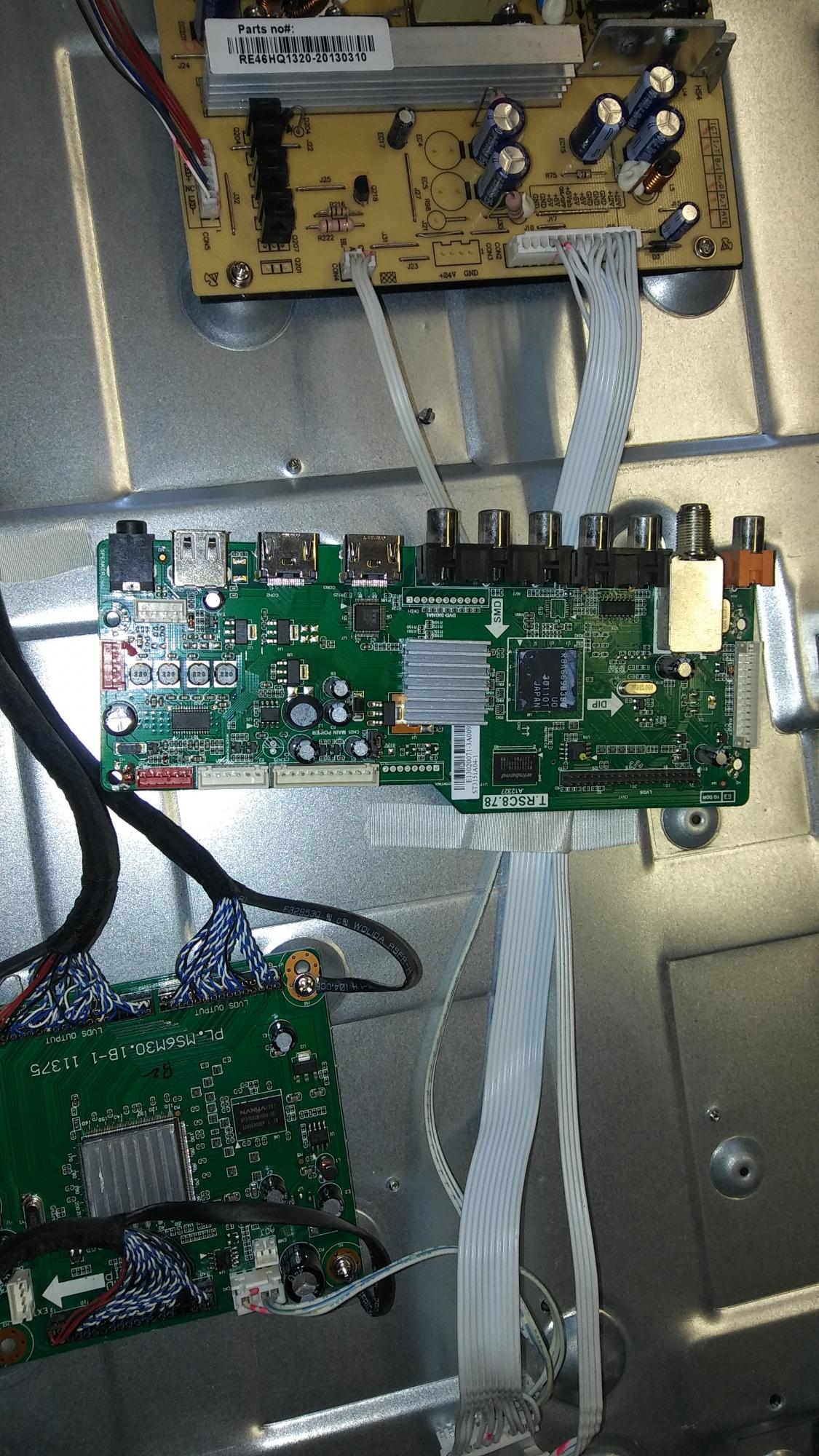

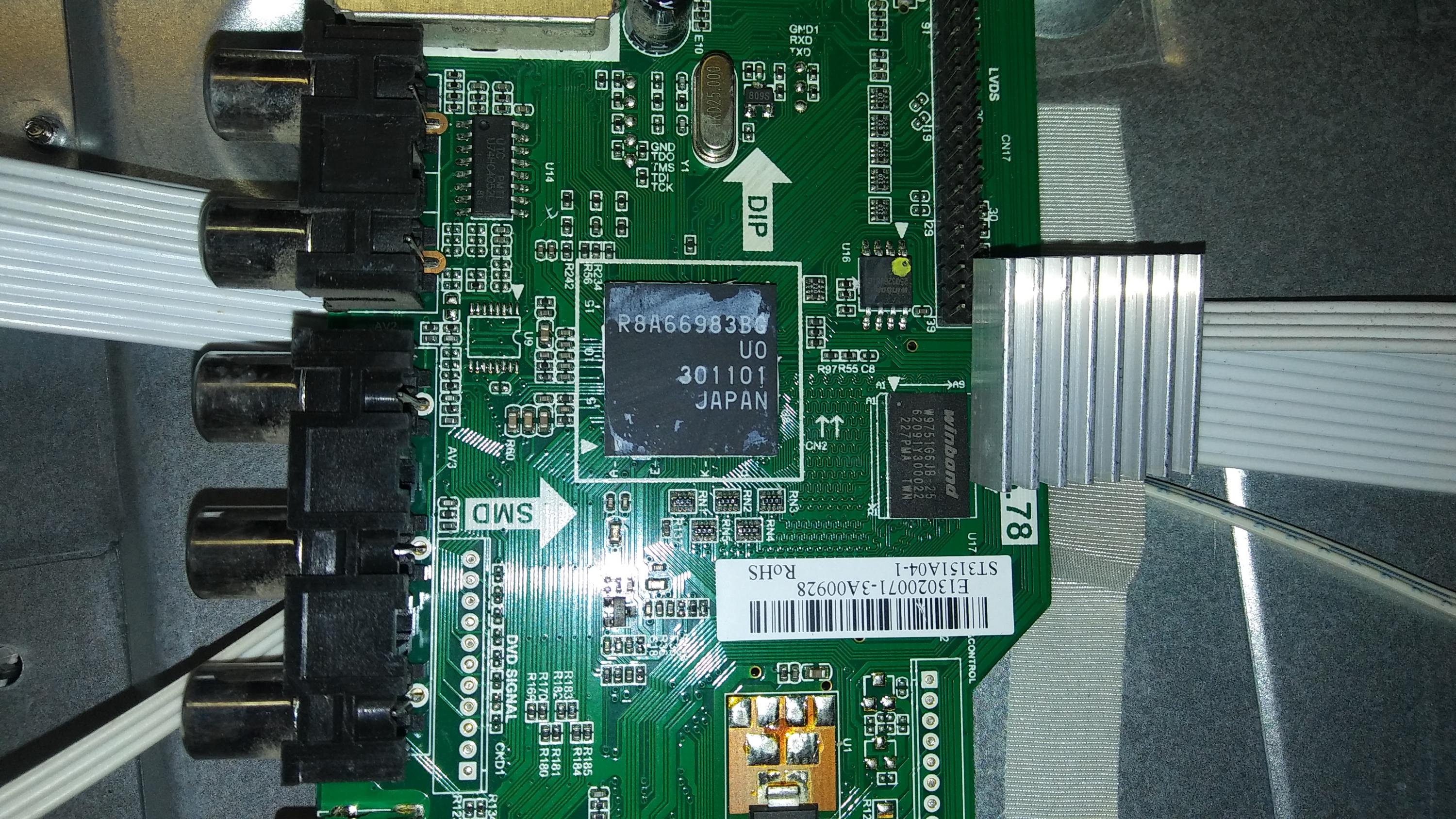

      pic4 : Yes It is the Japan's R8A66983BG : RCA 55120RE010C878LNA0-A1 Main Board for LED55C55R120Q
      Attached Files
      Last edited by capwizard; 03-09-2017, 02:17 PM.

      Comment

      • capwizard
        Badcaps Legend
        • Jun 2016
        • 1991
        • USA

        #4
        Re: Study R8A66983BG

        R8A66983BG Applications

        RCA 50LB45RQ
        https://cdn.badcaps-static.com/pdfs/...b5abe81061.pdf

        Sanyo DP19241
        Attached Files

        Comment
