Vizio model E241i-B1

[Jason616]

Anyone have any ideas on this ?

Tv doesn't turn on at all no power light no nothing ..

I tested for voltages and have +12 volts + 12 volts and 12 volts on the +12 colt audio pin no other voltages are present ..

[budm]

Re: Vizio model E241i-B1

The connector on the power supply that goes to the main board has label for each pin.
So what DCV do you have on all those pins?
You must put down the pin name follow by the DCV reading for each pin.

[Jason616]

Re: Vizio model E241i-B1

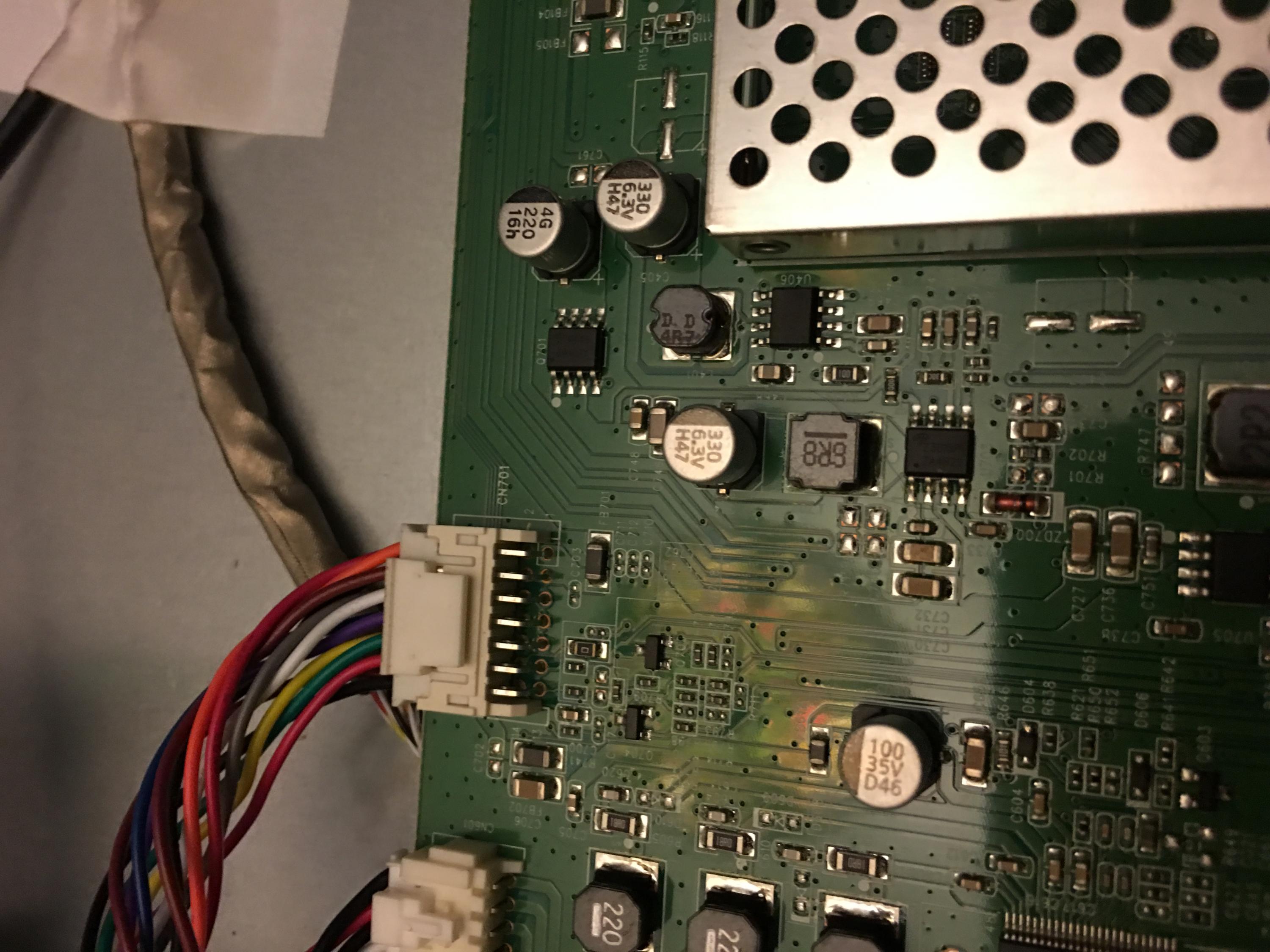

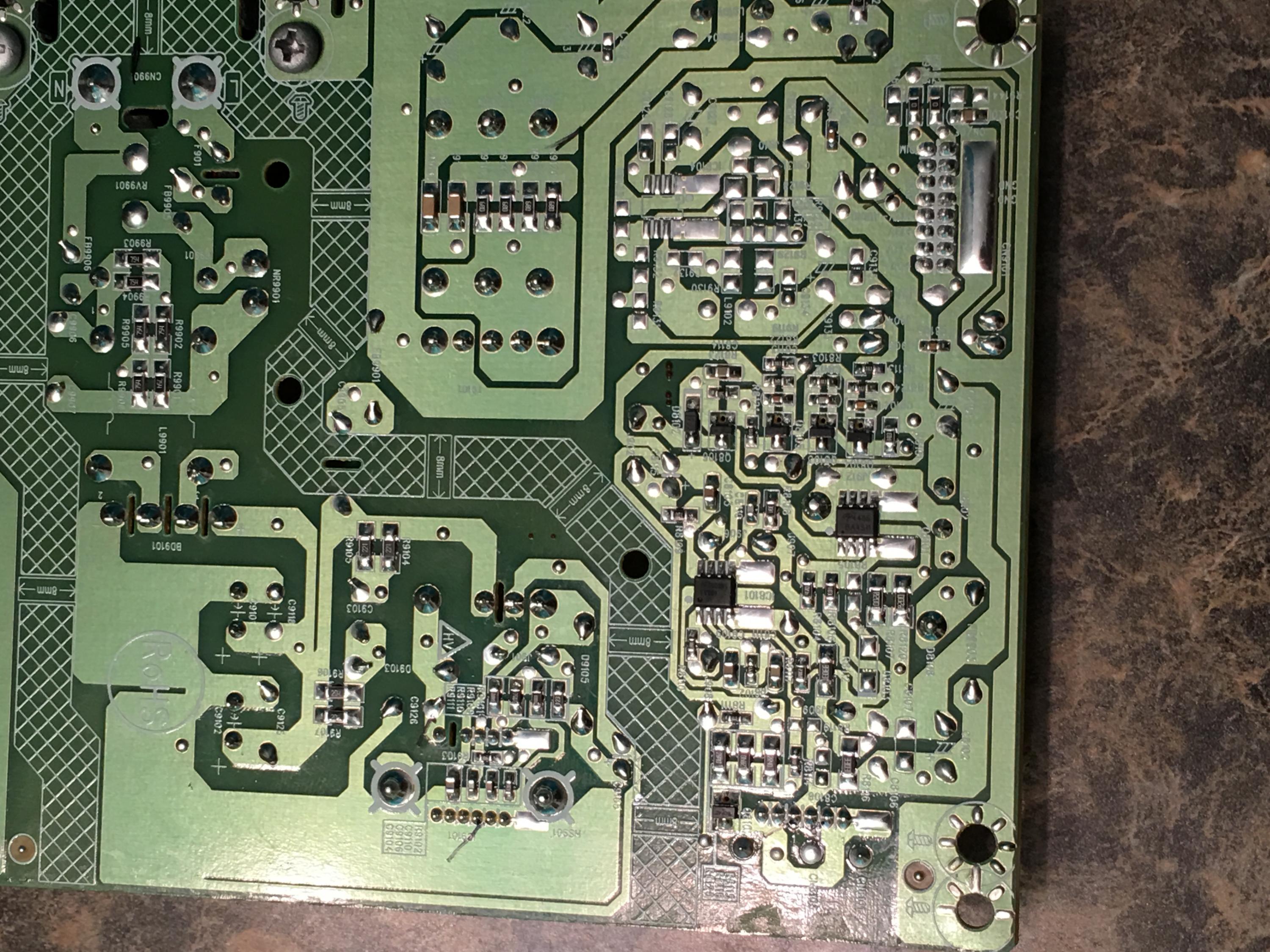

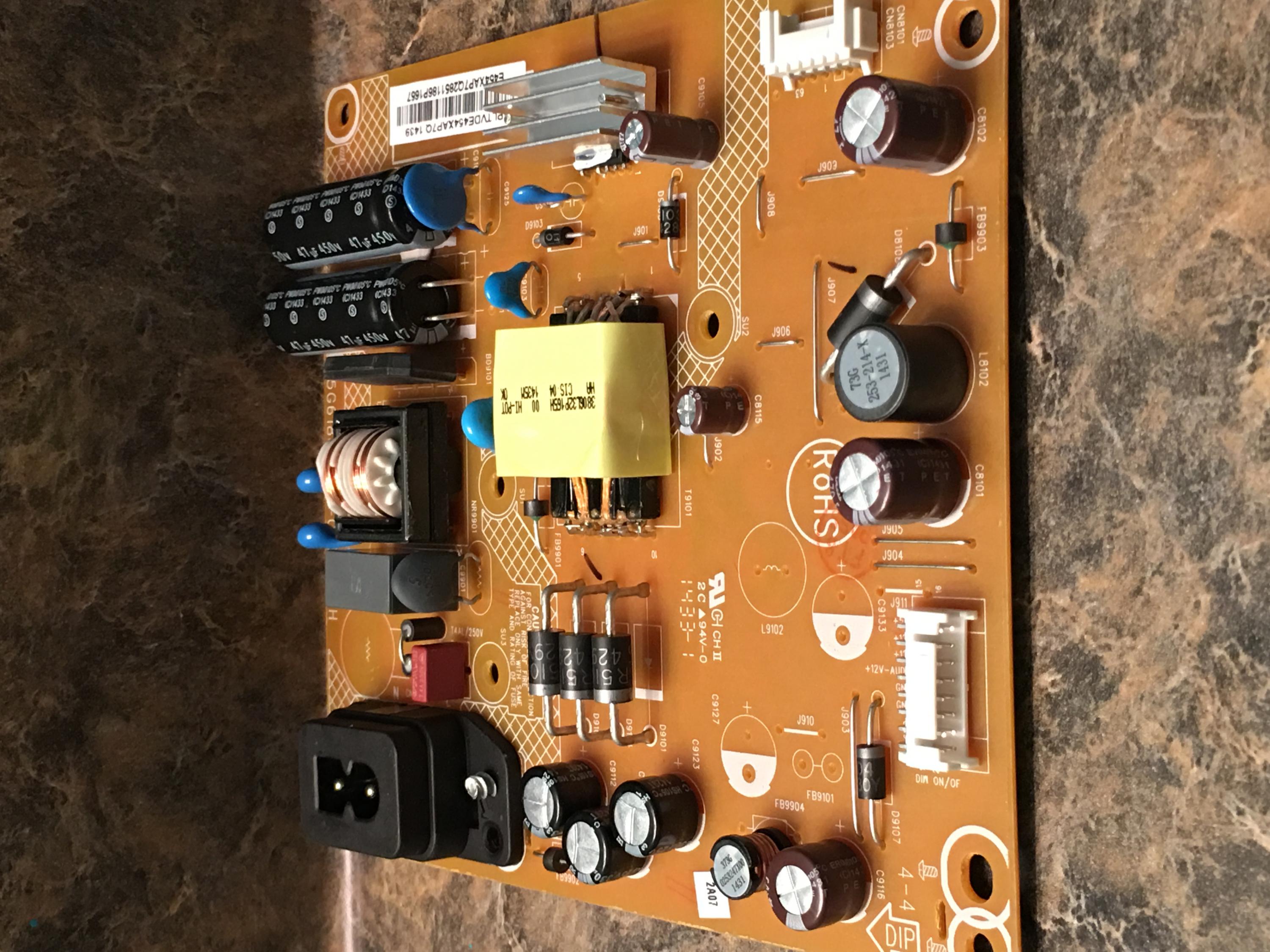

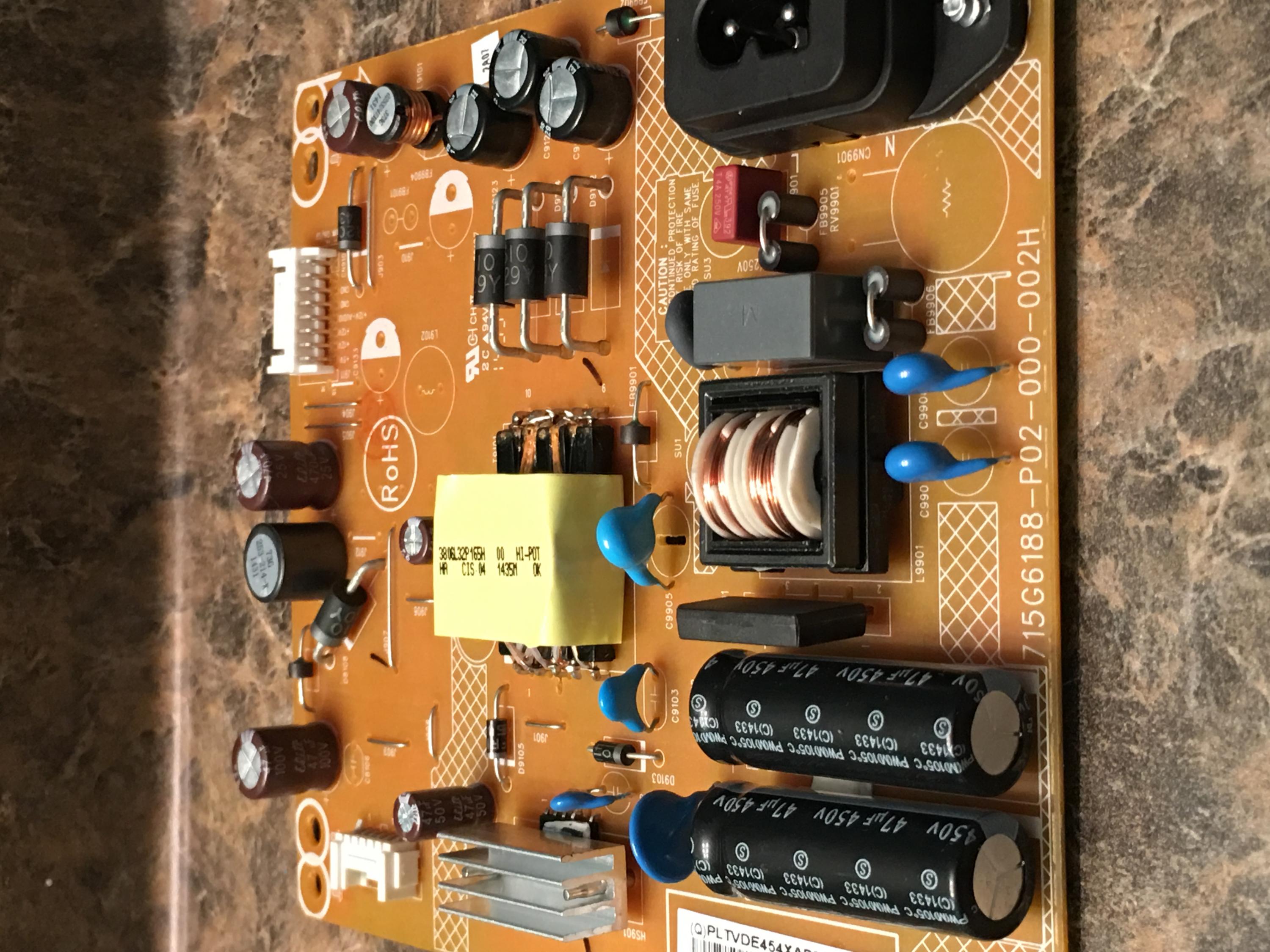

Here's is the pic of the back of the board ..

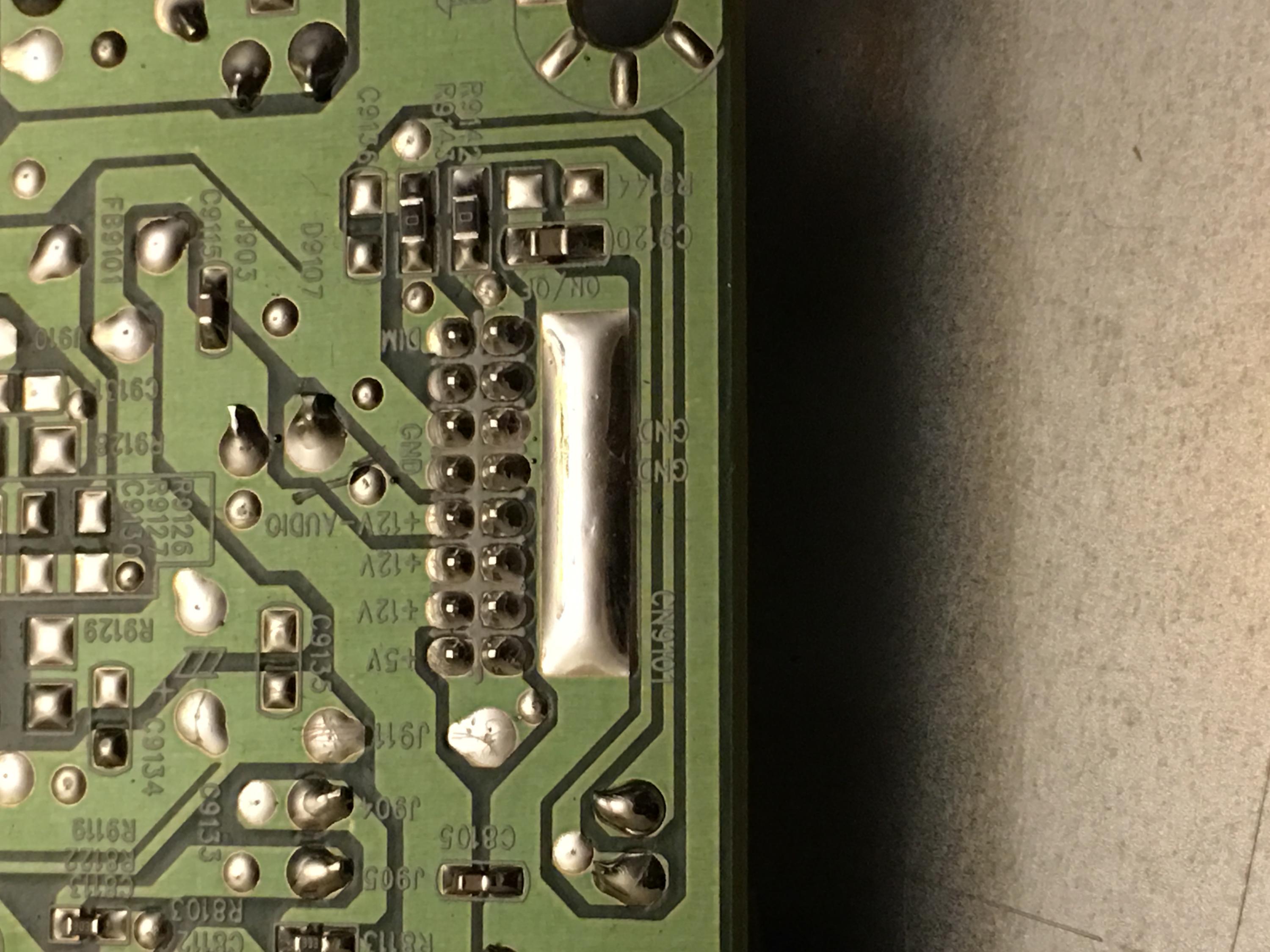

They are labeled as you can see in the pics ..

Starting from the top row working left to right ..

+5 volts: 0.00
+12 volts: 12.89
+12 volts :12.91
+12 volts audio :12.89
Gnd: 0..00
Gnd: 0.00
Next one not labeled but I bet 2.90 volts
Dim:0.07

Bottom row working left to right

Pin 1:0.00
Pin 2:12.33
Pin 3:12.33
Pin 4:12.45
Pin 5:0.00
Pin 6:0.00
Pin 7:0.00
Pin 8:0.00

[budm]

Re: Vizio model E241i-B1

OK, we need to find out why you do not have the 5V.

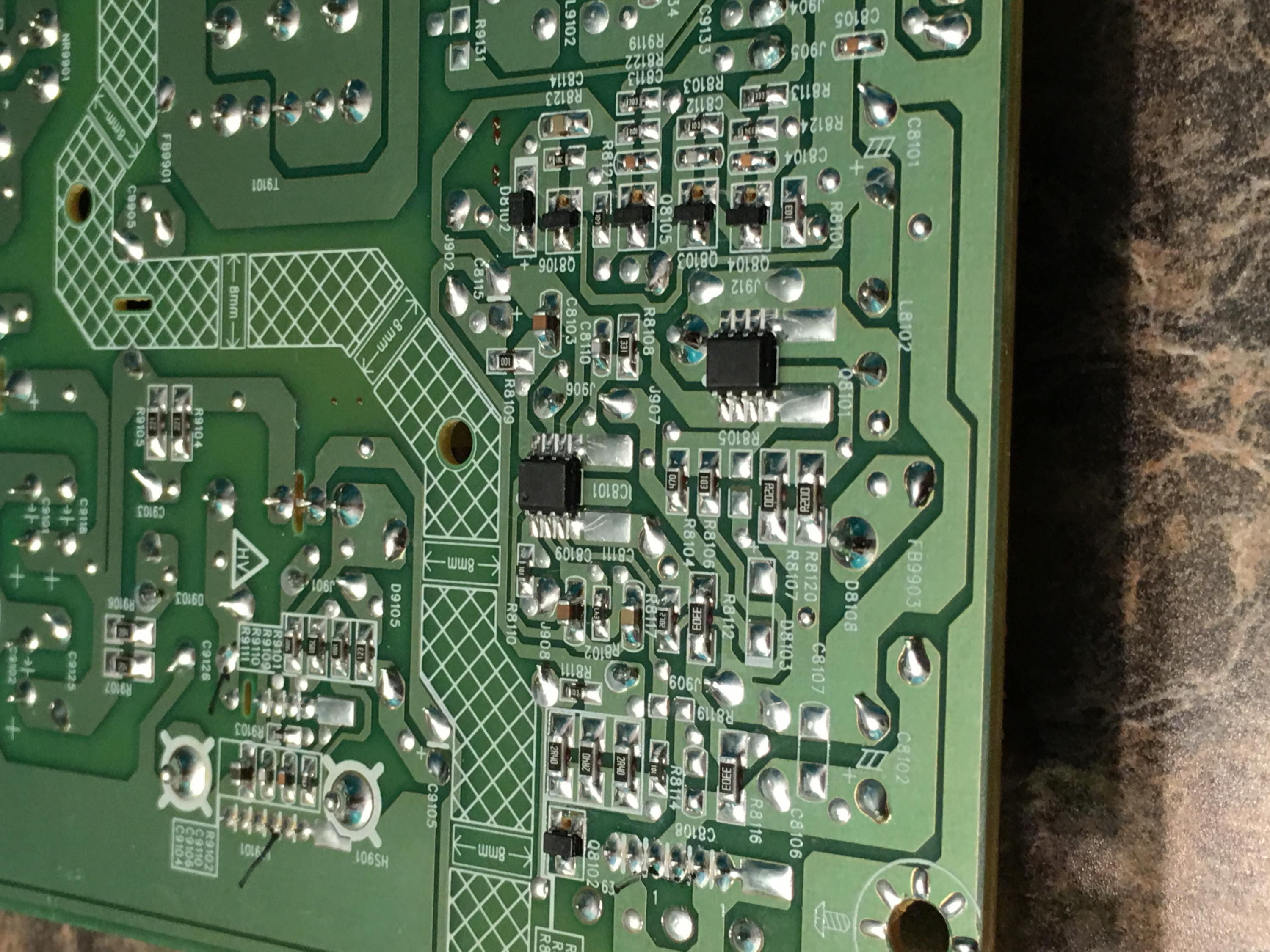

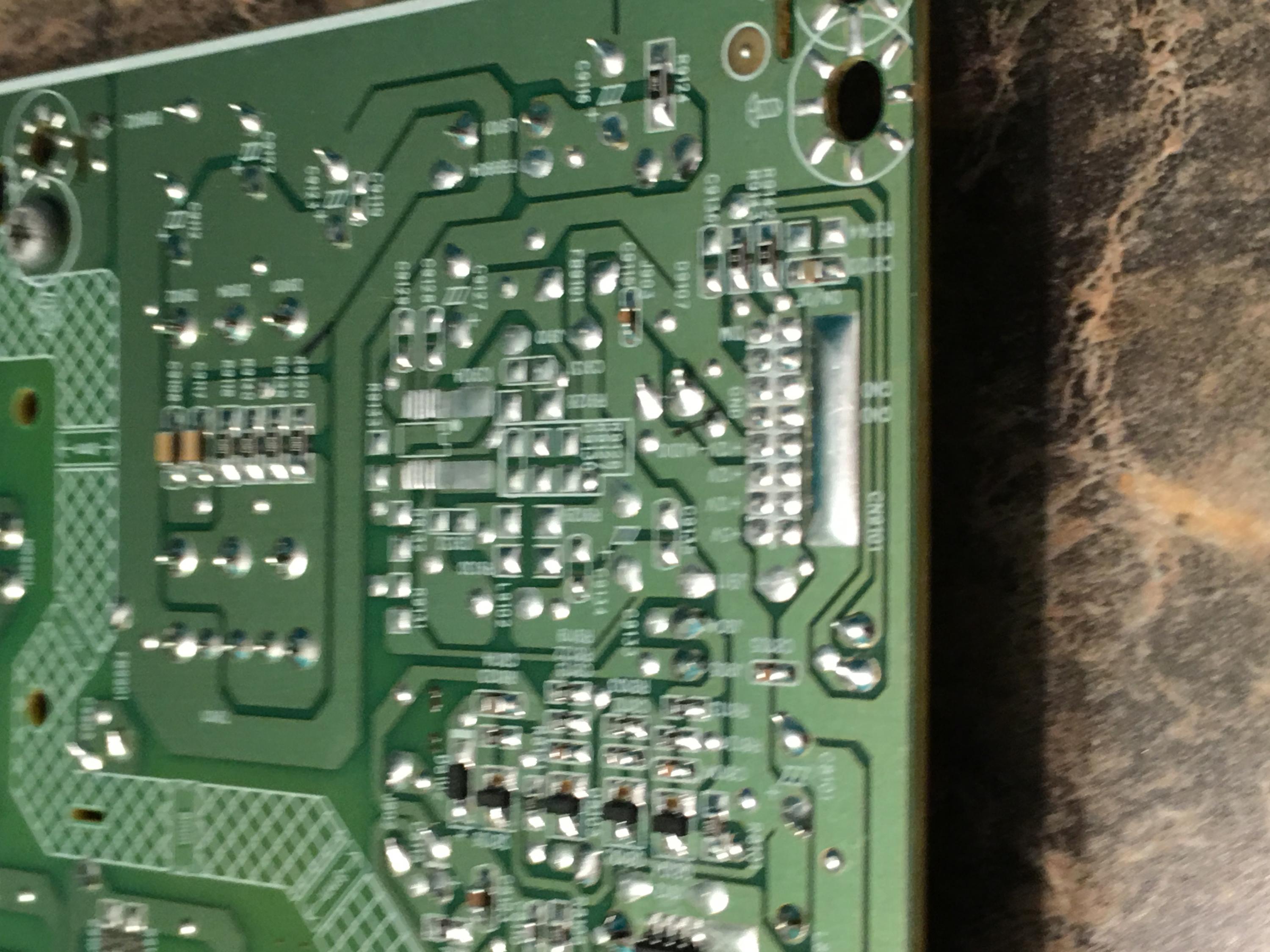

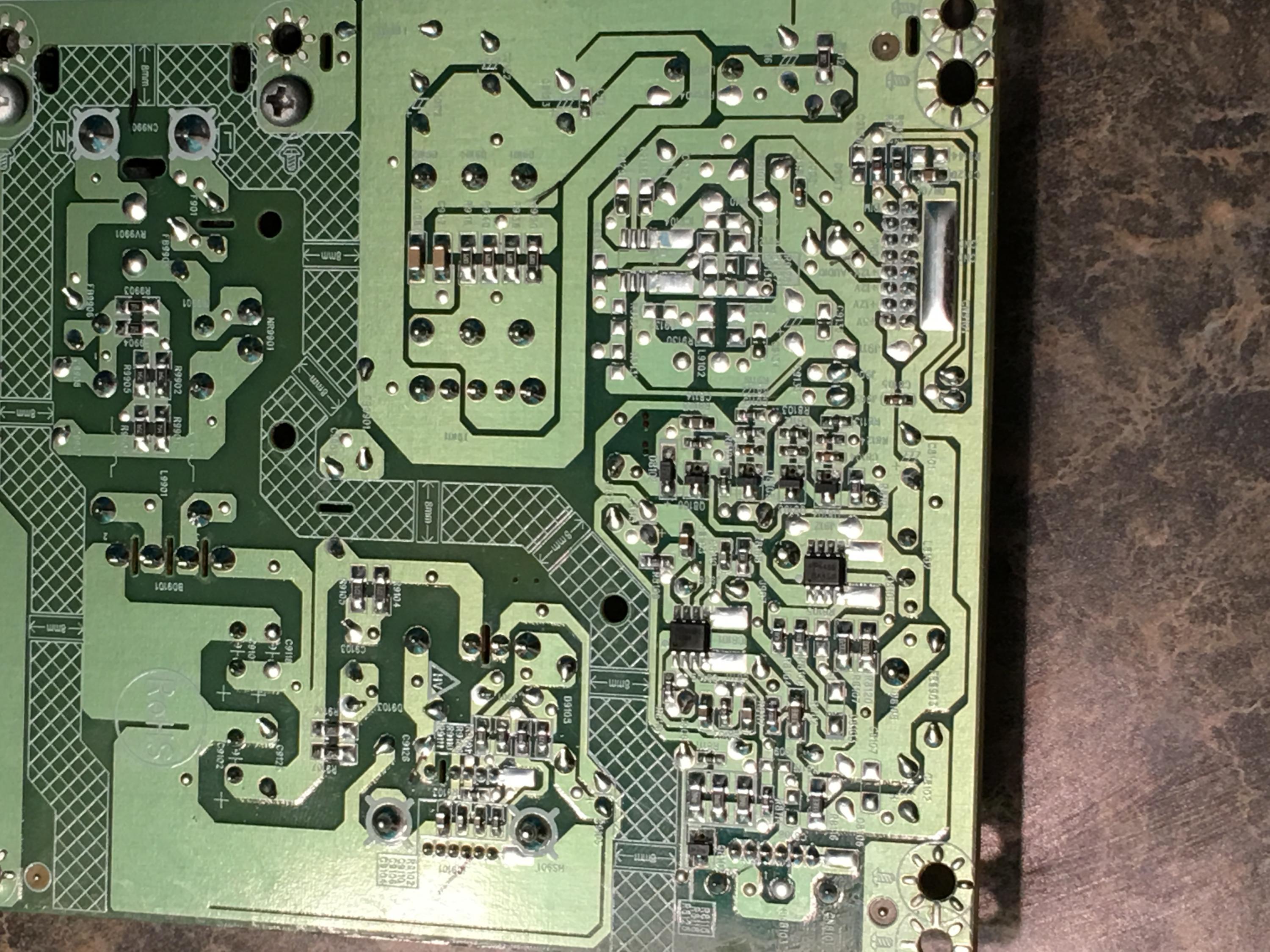

Can you please provide the STRAIGHT shot picture of the top and the bottom side of the board so I can trace the circuit and see how the 5V is generated?

Youe power supply board.
http://www.shopjimmy.com/catalogsear...lt/?q=E241i-B1
Vizio PLTVDE454XAP7Q Power Supply for E241I-B1

[budm]

Re: Vizio model E241i-B1

https://www.badcaps.net/forum/attach...8&d=1474862576

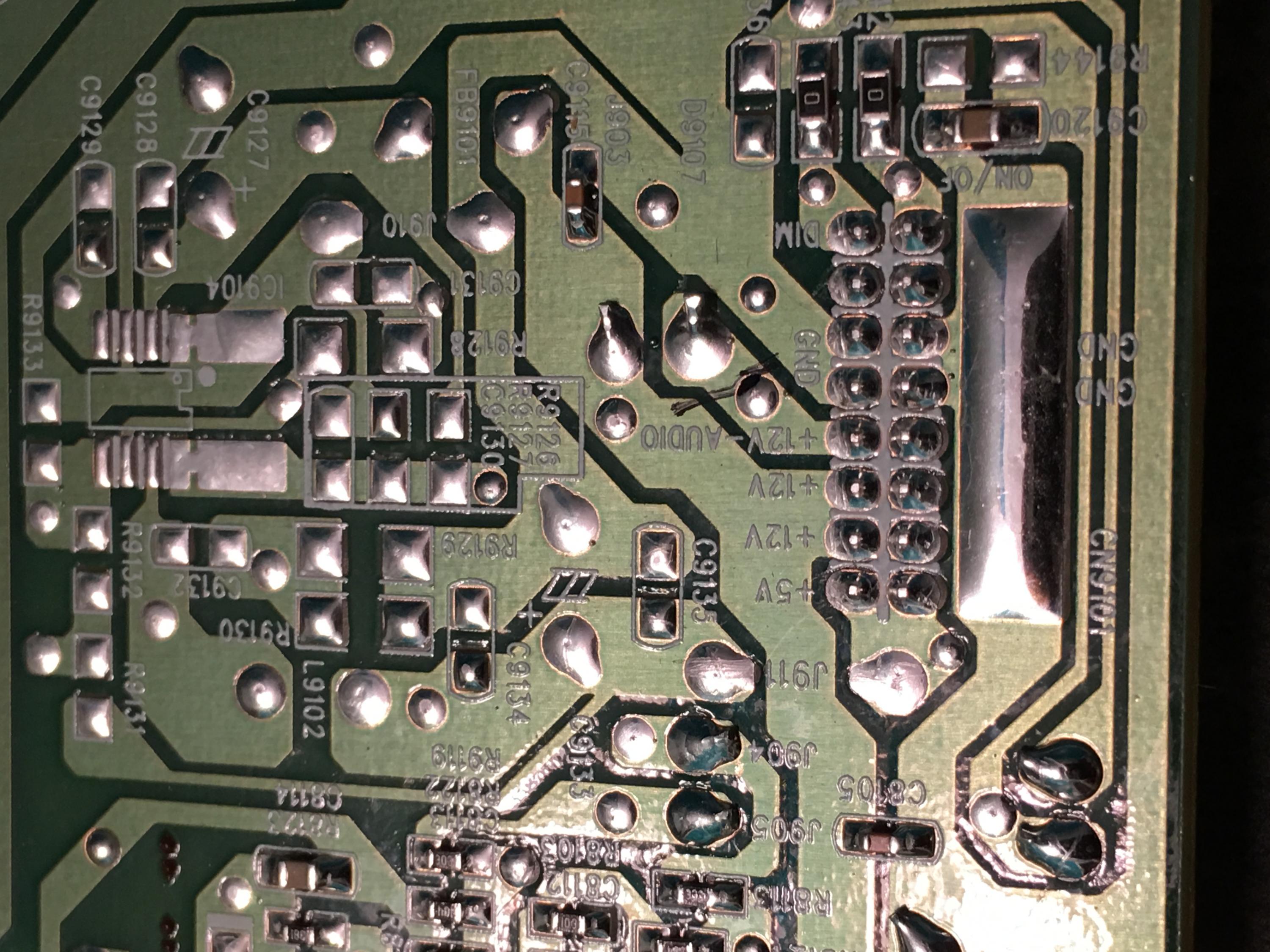

OK, looking at your picture I see that the 5V circuit is not being stuffed with parts that is why there is no 5V supply. Jumper J911 is not there?

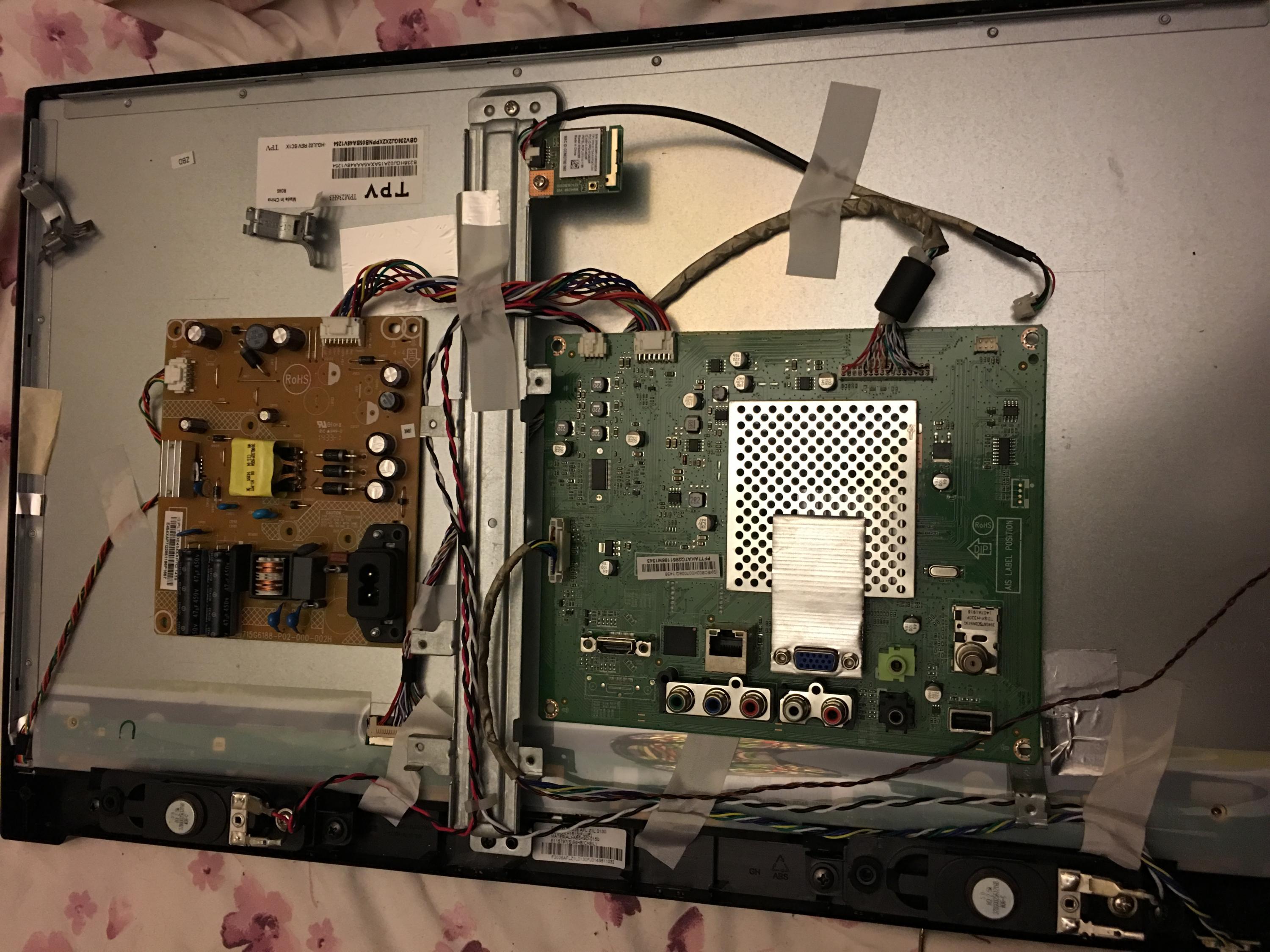

Can we see the pictures of the whole backside of the TV showing all the boards?

It looks like they make many versions of this model.
http://www.shopjimmy.com/catalogsear...lt/?q=E241i-B1

[Jason616]

Re: Vizio model E241i-B1

Let me know if you need better pics

[Jason616]

Re: Vizio model E241i-B1

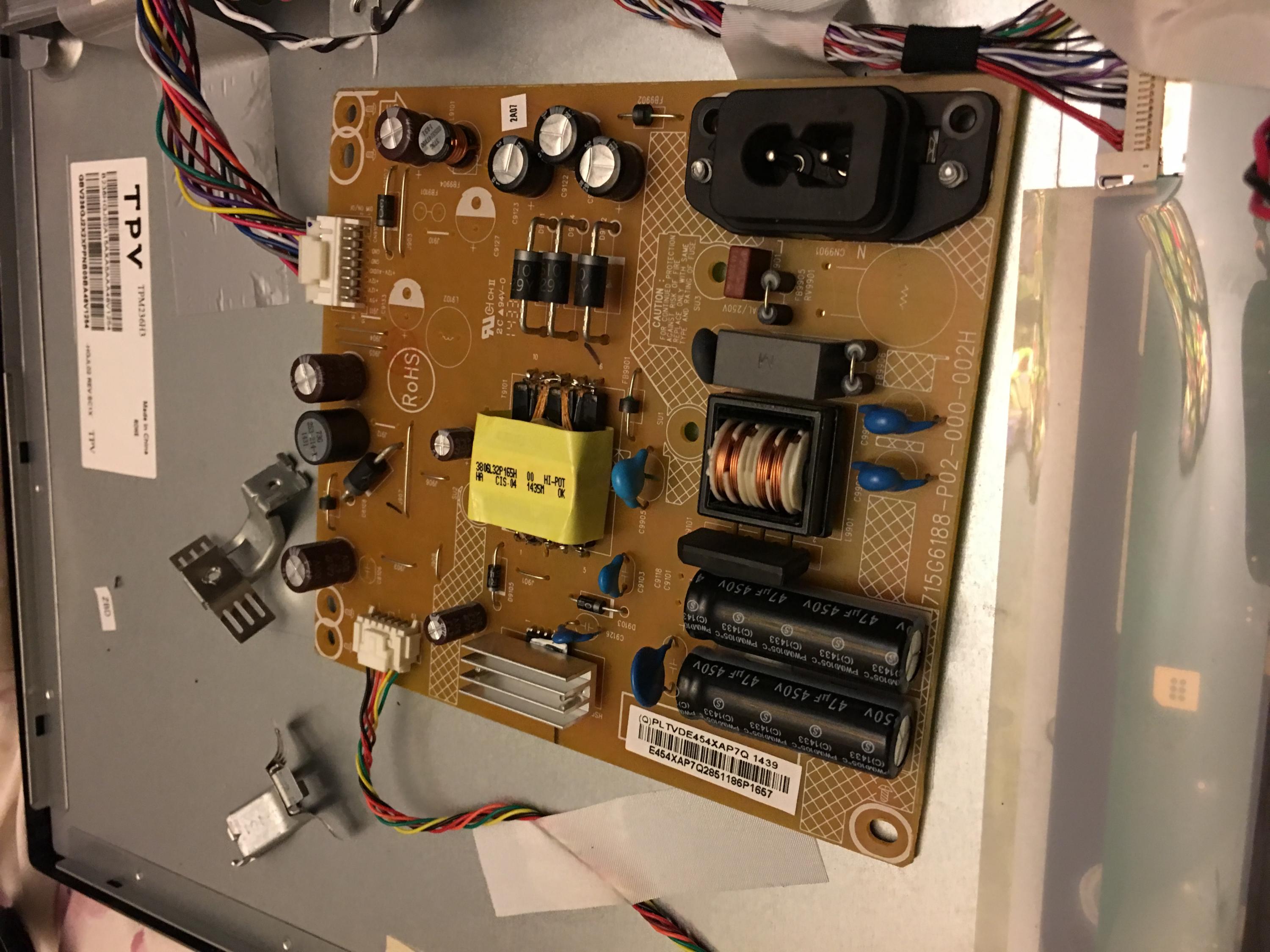

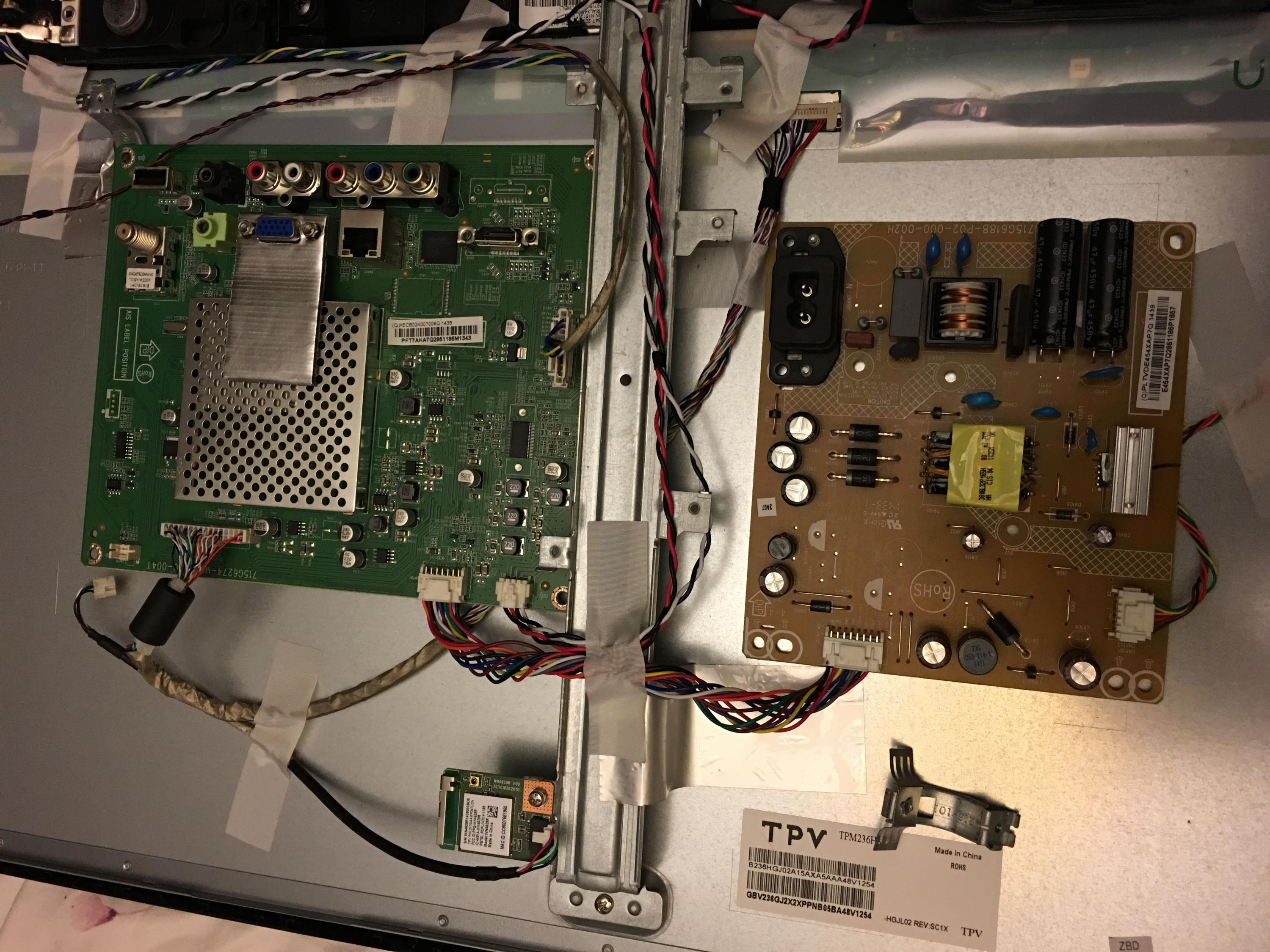

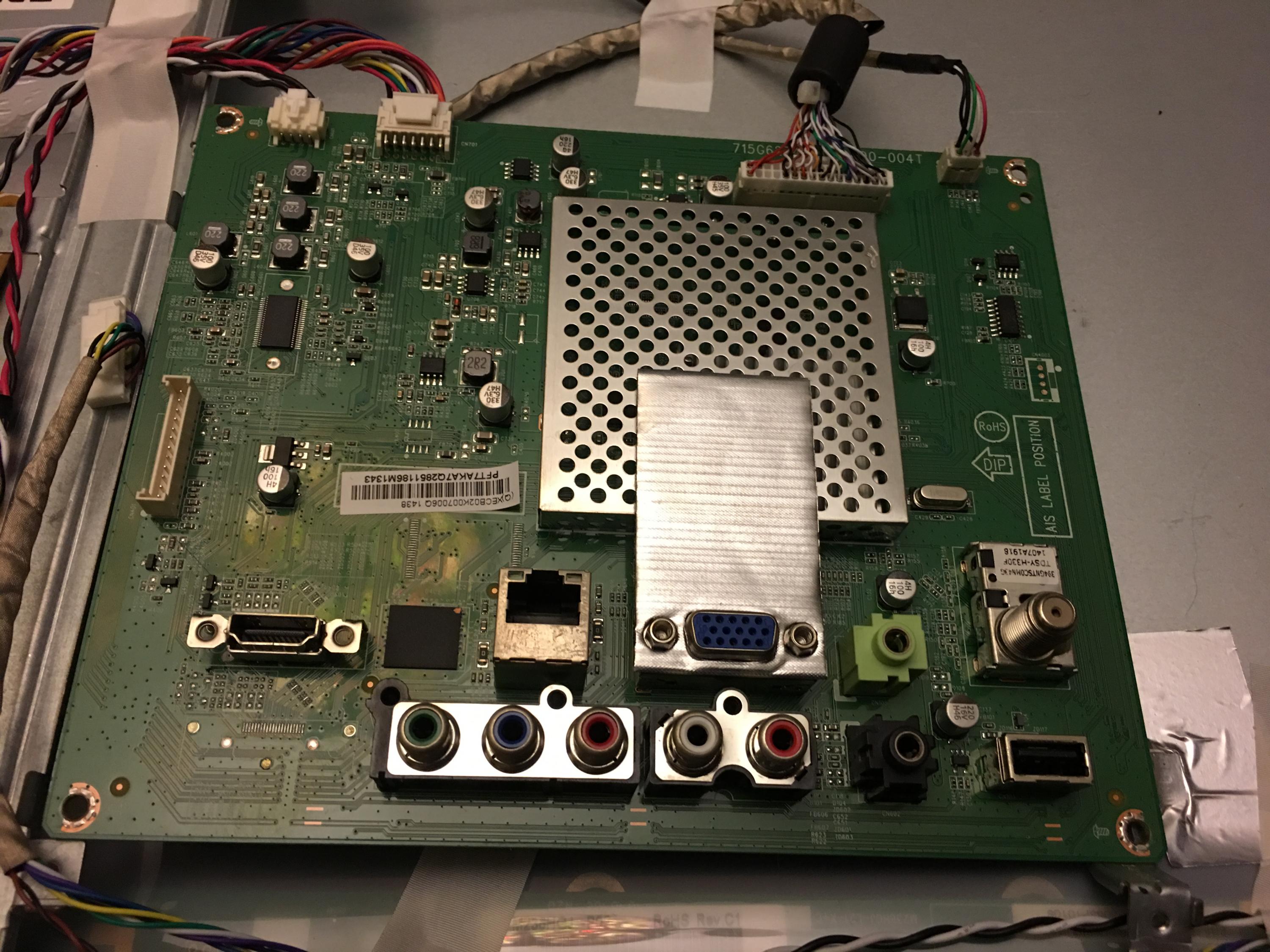

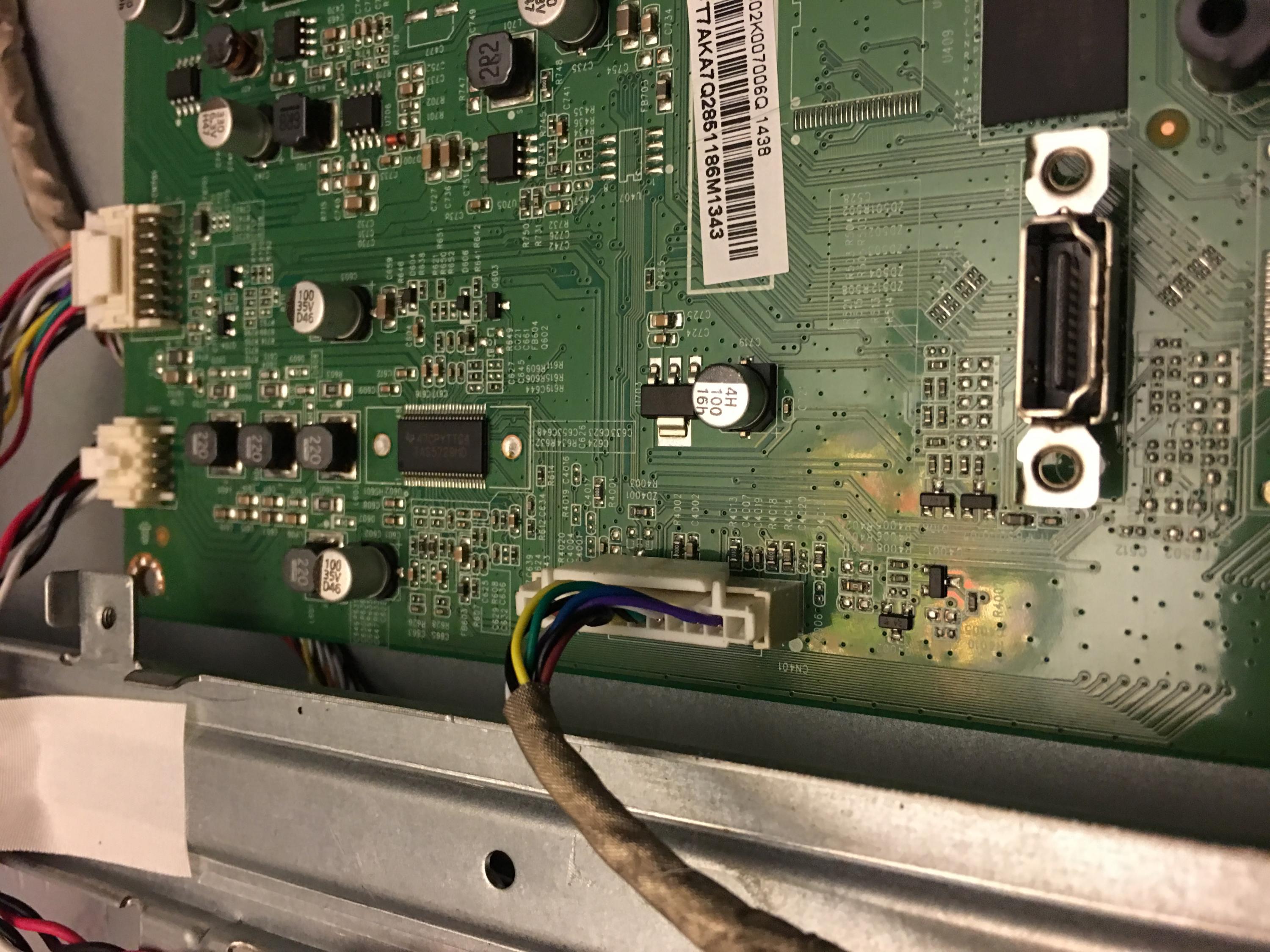

Here's the pics of both

[budm]

Re: Vizio model E241i-B1

Next one not labeled but I bet 2.90 volts
Dim:0.07

The 2.90 should be for the pin ON/OFF (BL-ON:Backlights ON/OFF), <1V = OFF, >2.5V = ON.

The DIM control signal is bad, it should not be low like that, the signal is generated by the main board.
You will have to try disconnecting that DIM wire from the connector and see if it will go to >1Vdc.
At this point you have main board problem.

[Jason616]

Re: Vizio model E241i-B1

I can't get it to come up to 1 volt. ..
Also the pin that measured 2.89 volts now only has 0.98 volts onkoy

[budm]

Re: Vizio model E241i-B1

I can't get it to come up to 1 volt. ..
Also the pin that measured 2.89 volts now only has 0.98 volts onkoy

Those two signals are generated by the main board, for it to go up the power switch has to be ON. You will have to fix the main board.
