    Stupid design! (Polaroid TDA-03211C)

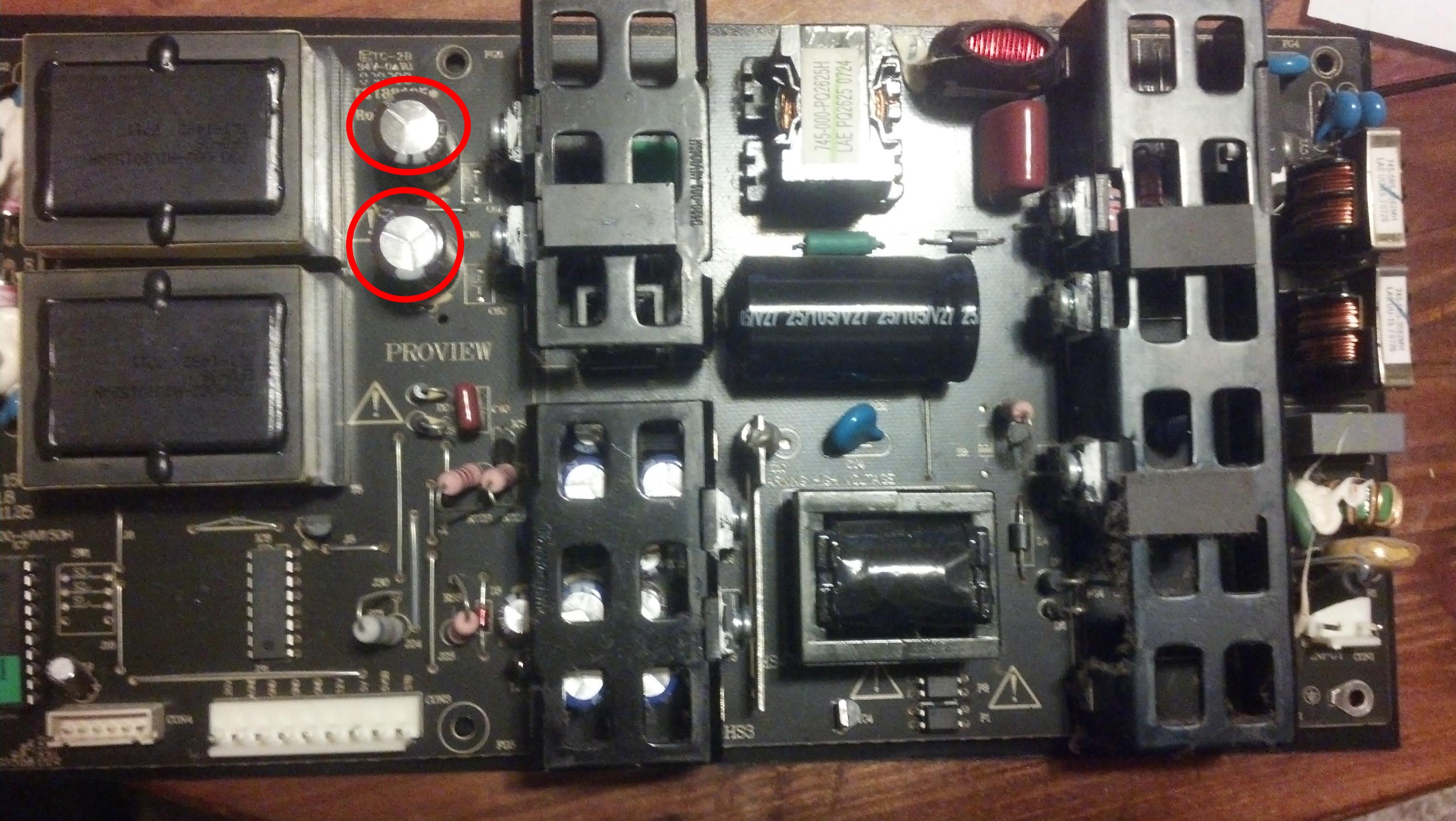

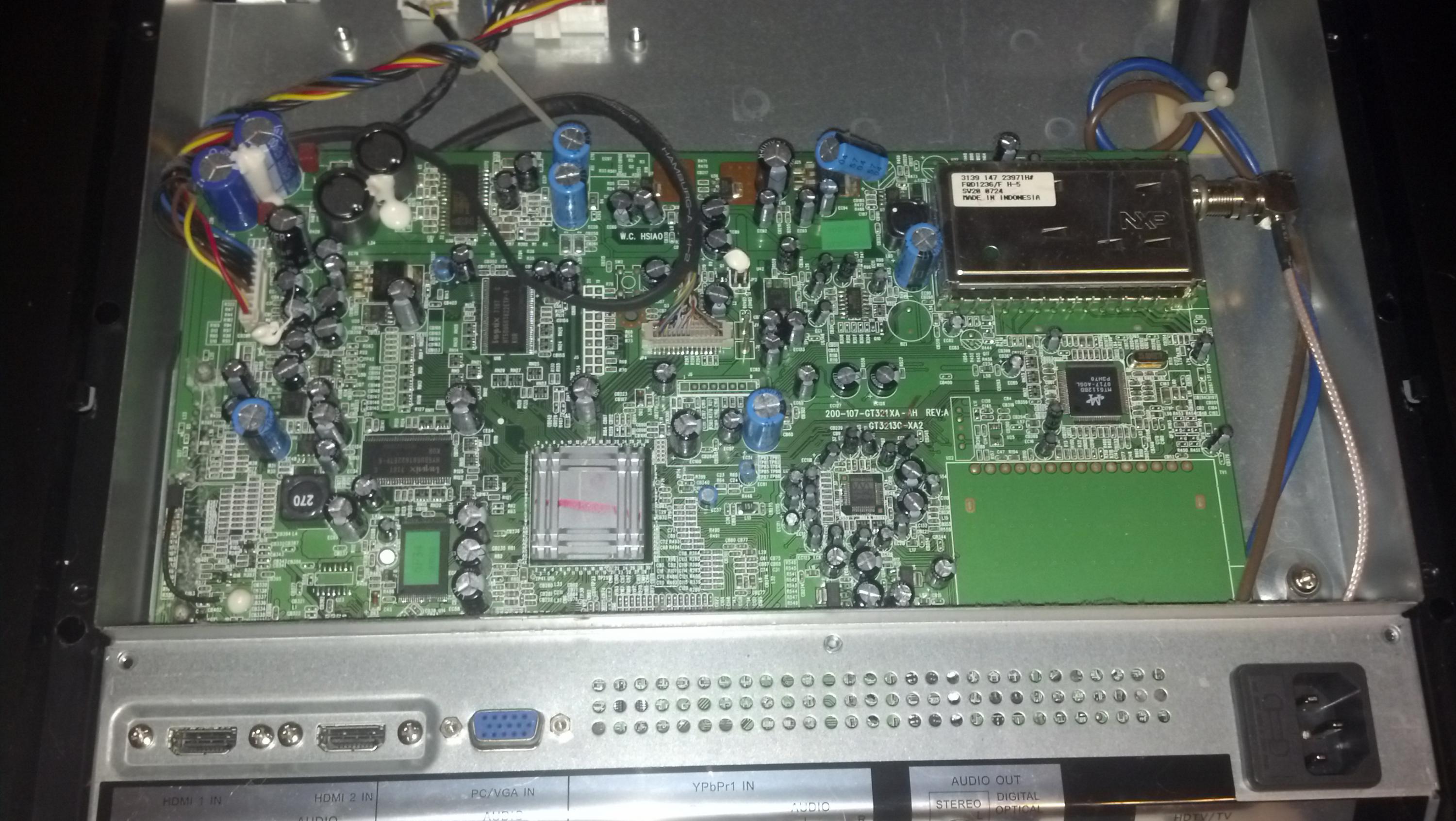

    Ok.. to start, Polaroid knew that this was a crappy design so well that they put a "Quick Access" panel on the back which requires removing one screw to access the power and main board. Not a good sign lol. To add insult to injury, let's use scrap metal bars with globs of solder on them for jumpers and junction points! Look at the main board... someone was scared to death of tantalum. You know it's bad when they are using fake knockoff versions of chinese junk knockoff caps. Look at that 450v filter cap. holy shi... anyways, that's my rant lol. enjoy
    Attached Files
    You Can't Succeed Until You're Willing to Fail
    Tags: None
    #2
    Re: Stupid design! (Polaroid TDA-03211C)

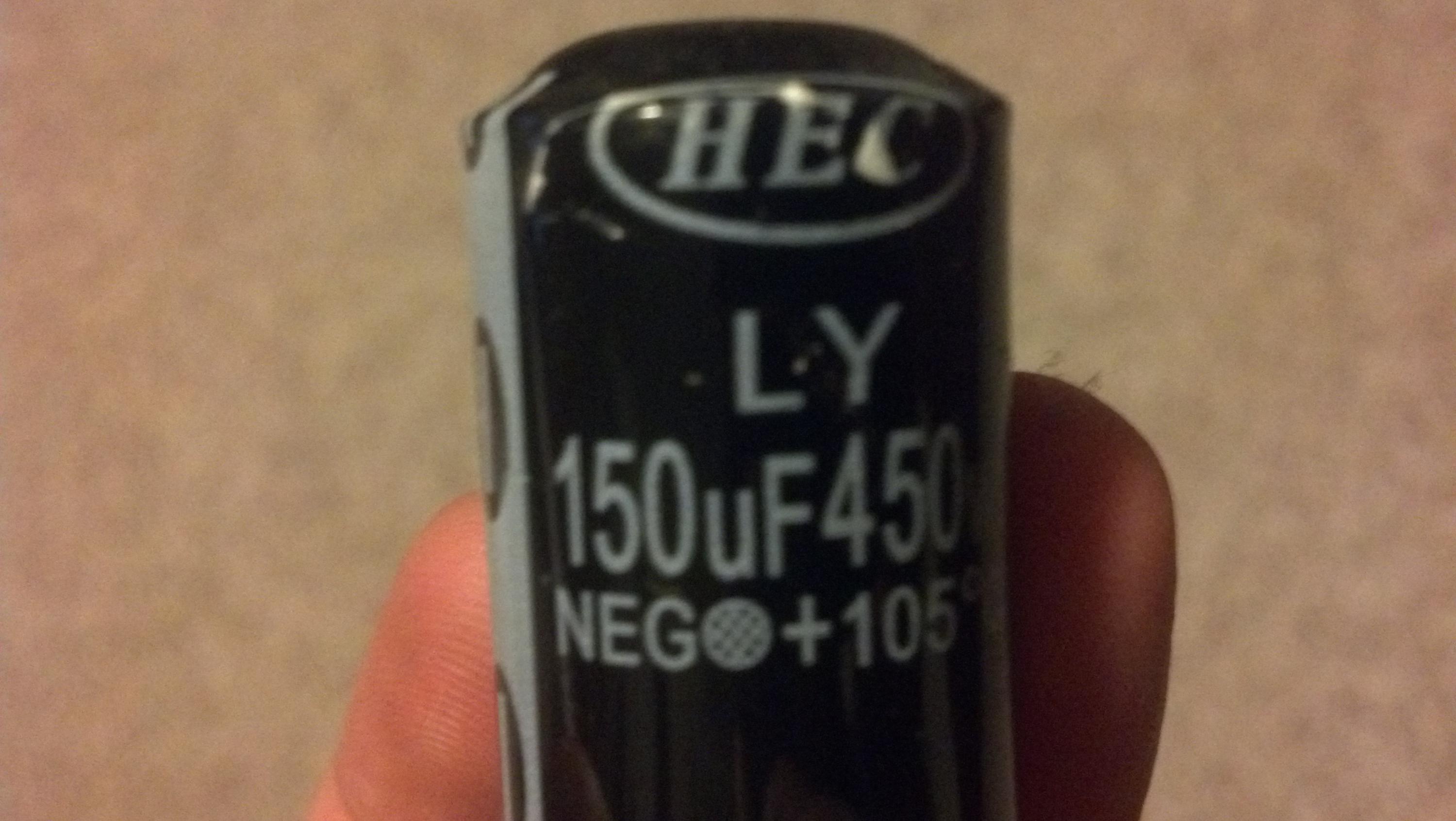

    I fixed one of these awhile back and the only thing keeping it from working were the two bad 150uf 450v caps feeding the backlight circuits
    Liberating magic smoke one part at a time

    Comment

      #3
      Re: Stupid design! (Polaroid TDA-03211C)

      Originally posted by Caleb View Post
      I fixed one of these awhile back and the only thing keeping it from working were the two bad 150uf 450v caps feeding the backlight circuits
      That and the filter cap are the only issues with this one too. Just an extremely cheap/ cheesy design
      You Can't Succeed Until You're Willing to Fail

      Comment

        #4
        Re: Stupid design! (Polaroid TDA-03211C)

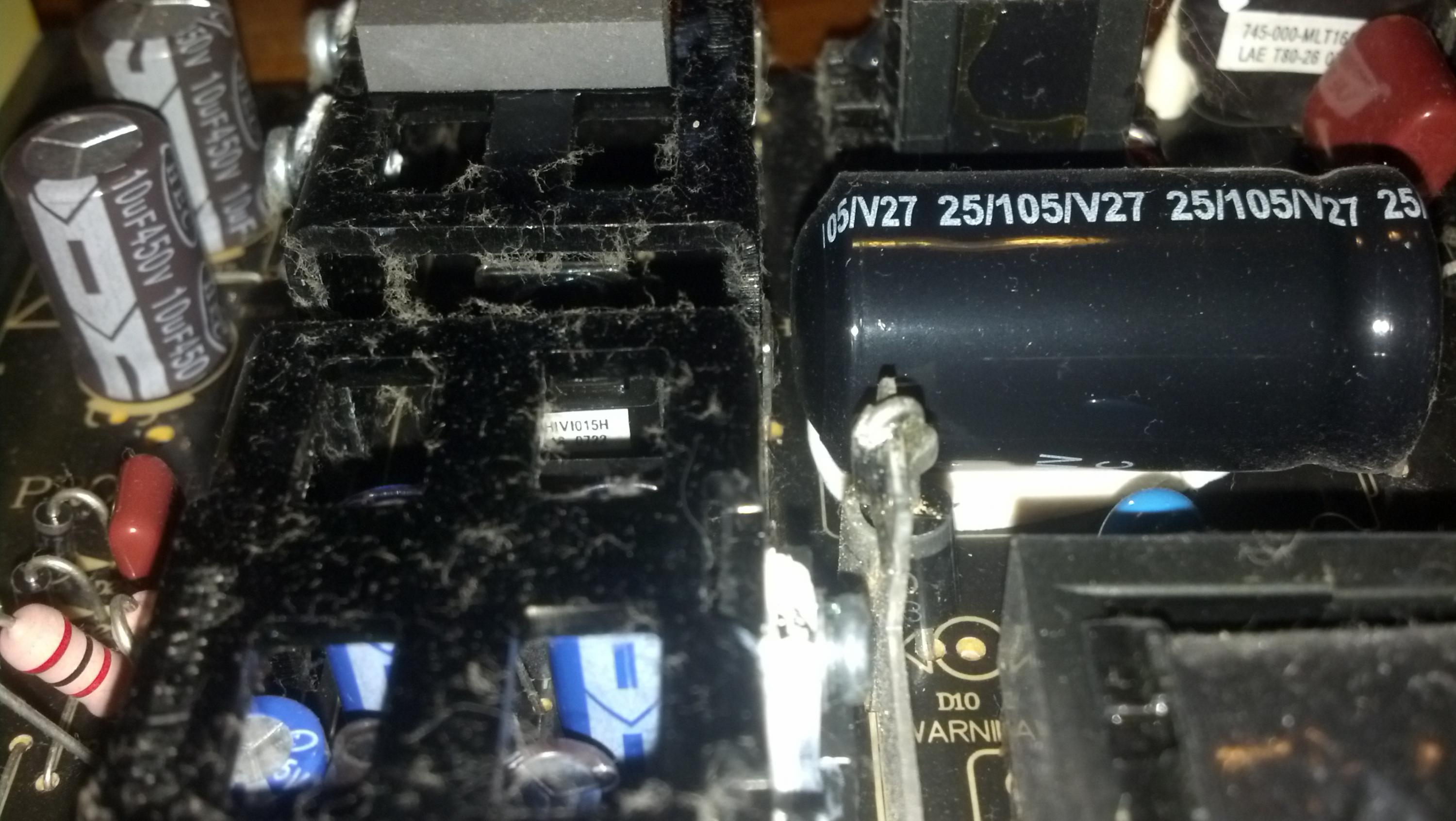

        You should remove that plastic piece off that main filter cap that looks domed, I think it is just a deformed plastic piece. The common problem with no backlghts are due to the two 10uF 450VDC caps by the inveter transformer, from the look of the picture, looks like the top one has slightly domed top.
        Attached Files
        Never stop learning
        Basic LCD TV and Monitor troubleshooting guides.
        http://www.badcaps.net/forum/showthr...956#post305956

        Voltage Regulator (LDO) testing:
        http://www.badcaps.net/forum/showthr...999#post300999

        Inverter testing using old CFL:
        http://www.badcaps.net/forum/showthr...er+testing+cfl

        Tear down pictures : Hit the ">" Show Albums and stories" on the left side
        http://s807.photobucket.com/user/budm/library/

        TV Factory reset codes listing:
        http://www.badcaps.net/forum/showthread.php?t=24809

        Comment

          #5
          Re: Stupid design! (Polaroid TDA-03211C)

          That primary cap looks like it's about to pop its top!!
          ASRock B550 PG Velocita

          Ryzen 9 "Vermeer" 5900X

          32 GB G.Skill RipJaws V F4-3200C16D-32GVR

          Arc A770 16 GB

          eVGA Supernova G3 750W

          Western Digital Black SN850 1TB NVMe SSD

          Alienware AW3423DWF OLED




          "¡Me encanta "Me Encanta o Enlistarlo con Hilary Farr!" -Mí mismo

          "There's nothing more unattractive than a chick smoking a cigarette" -Topcat

          "Today's lesson in pissivity comes in the form of a ziplock baggie full of GPU extension brackets & hardware that for the last ~3 years have been on my bench, always in my way, getting moved around constantly....and yesterday I found myself in need of them....and the bastards are now nowhere to be found! Motherfracker!!" -Topcat

          "did I see a chair fly? I think I did! Time for popcorn!" -ratdude747

          Comment

            #6
            Re: Stupid design! (Polaroid TDA-03211C)

            Originally posted by budm View Post
            You should remove that plastic piece off that main filter cap that looks domed, I think it is just a deformed plastic piece. The common problem with no backlghts are due to the two 10uF 450VDC caps by the inveter transformer, from the look of the picture, looks like the top one has slightly domed top.
            Yup the one is. I pulled both and the filter cap a few hours ago. Good to go now. Always nice to have a simple cheap fix for a customer once and a while even if it is a silly designed tv
            You Can't Succeed Until You're Willing to Fail

            Comment

              #7
              Re: Stupid design! (Polaroid TDA-03211C)

              Also the 2 Fairchild fets fail sometimes next to the 2 10uf 450v caps, if the caps fail they can cause those to short too. I have had a couple of these and an Element FLX-3202.
