    What type of connector

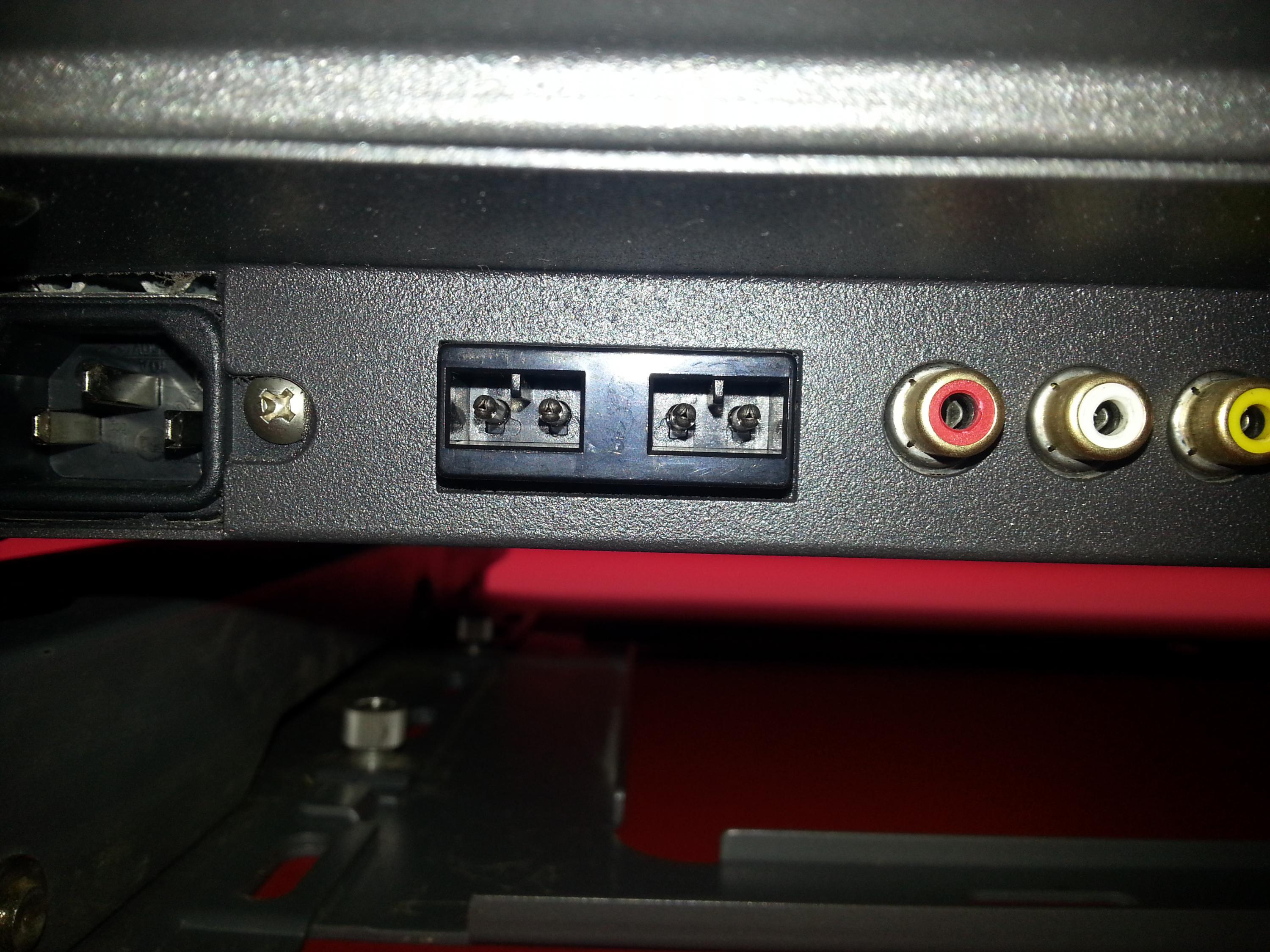

    Hi I have just set up my samsung plasma display and have mounted all speaker etc. I find my self at a stop now as I cant find out what type of speaker socket it is on the set as im using after market sound. I have attached picture . can any one shed any light on the names of these type connector. on set it says output connector 8 ohms and thats it.
    Attached Files

    #2
    Re: What type of connector

    I've seen that before on some Samsung devices, it's a proprietary Samsung connector. Your best bet is to hook an amplifier up to a standard audio output red/white or optical/spdif.
    Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
    For service manual, schematic, boardview (board view), datasheet, cad - use our search.

    Comment


      #3
      Re: What type of connector

      thanks tom. is there no way of just hookong a diiferent type onto each as an amp isnt an option at the minute its for my boy and his games etc. I have seen them before but for the hell of me cant find anything as my description brings up your normal type of speaker connections

      Comment


        #4
        Re: What type of connector

        What model number is the tv
        Please upload pictures using attachment function when ask for help on the repair
        http://www.badcaps.net/forum/showthread.php?t=39740

        Comment


          #5
          Re: What type of connector

          They are speaker terminals. You will have to wire the speaker wires directly to the terminals. It's no special connector, just screw terminals.
          Last edited by SteveNielsen; 06-25-2014, 11:24 AM.

          Comment


            #6
            Re: What type of connector

            Originally posted by SteveNielsen View Post
            They are speaker terminals. You will have to wire the speaker wires directly to the terminals. It's no special connector, just screw terminals.
            are you looking at the same thing as me ? lol



            model number is ppm42s3q

            Comment


              #7
              Re: What type of connector

              Yeah sorry, they looked like screws to me, looking much harder at them they look sort of like some kind of three section male banana plugs. Since you said they are rated at 8 Ohms, next to an a/v input and in two pairs I would still guess they are stereo speaker outputs. Kind of a funky connection but I bet still for external speakers.

              Owners manual:
              http://www.samsung.com/us/support/ow...oduct/PPM42S3Q

              Yep, external speaker connections.

              Ho-boy! I must apologize for missing the fact that you knew they are spkr connections. (slap my forehead!) If you are missing the Samsung cables I saw some sources online you can buy them from when I searched for Samsung speaker cables.
              Last edited by SteveNielsen; 06-25-2014, 06:16 PM.
