    VIZIO E20VL mainboard cap right by U14 EEPROM

    Title should be E420VL but my keyboard needs remedial training. So do I.

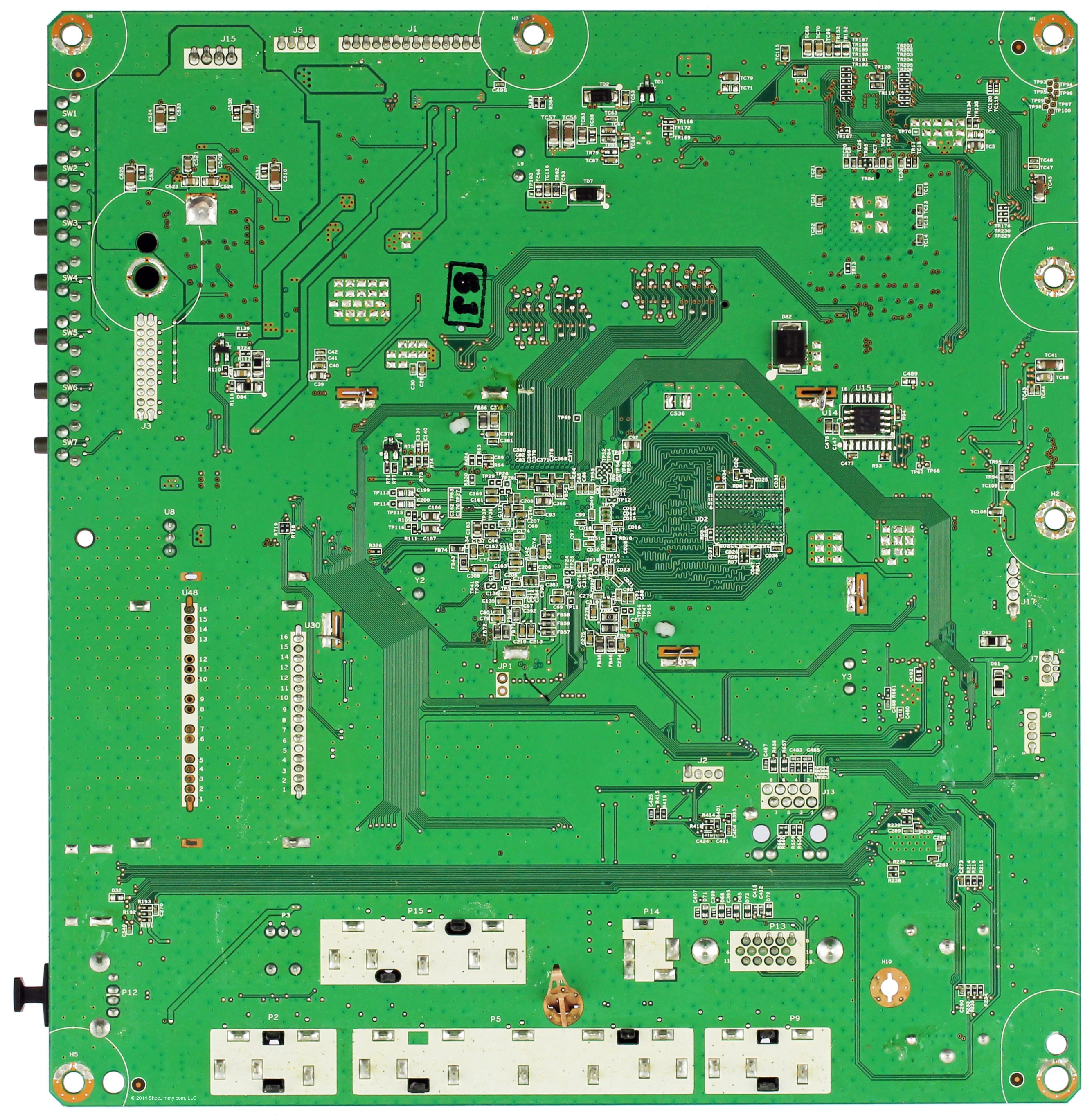

    Can anyone tell me if I wiped C147 off the board when doing a replacement of the EEPROM? I cannot tell if it was ever there, and if it was, I have no idea of the value. Cannot find any parts list or schematic, so it is difficult to know if it was there or if it was, the proper value
    Thanks to anyone who has this information.

    I might have it in a blob of solder used to remove the old EEPROM, but it is so small that it's like searching for 1/10 grain of rice...
    tom
    Last edited by tmwalsh; 06-19-2014, 08:59 PM. Reason: note bad title...
    Tags: None
    • R_J
      Badcaps Legend
      • Jun 2012
      • 9535
      • Canada
      #2
      Re: VIZIO E20VL mainboard cap right by U14 EEPROM

      Looks like it should be there, but not sure of the value. see which pins it goes to that may help, could be just decoupling cap.
