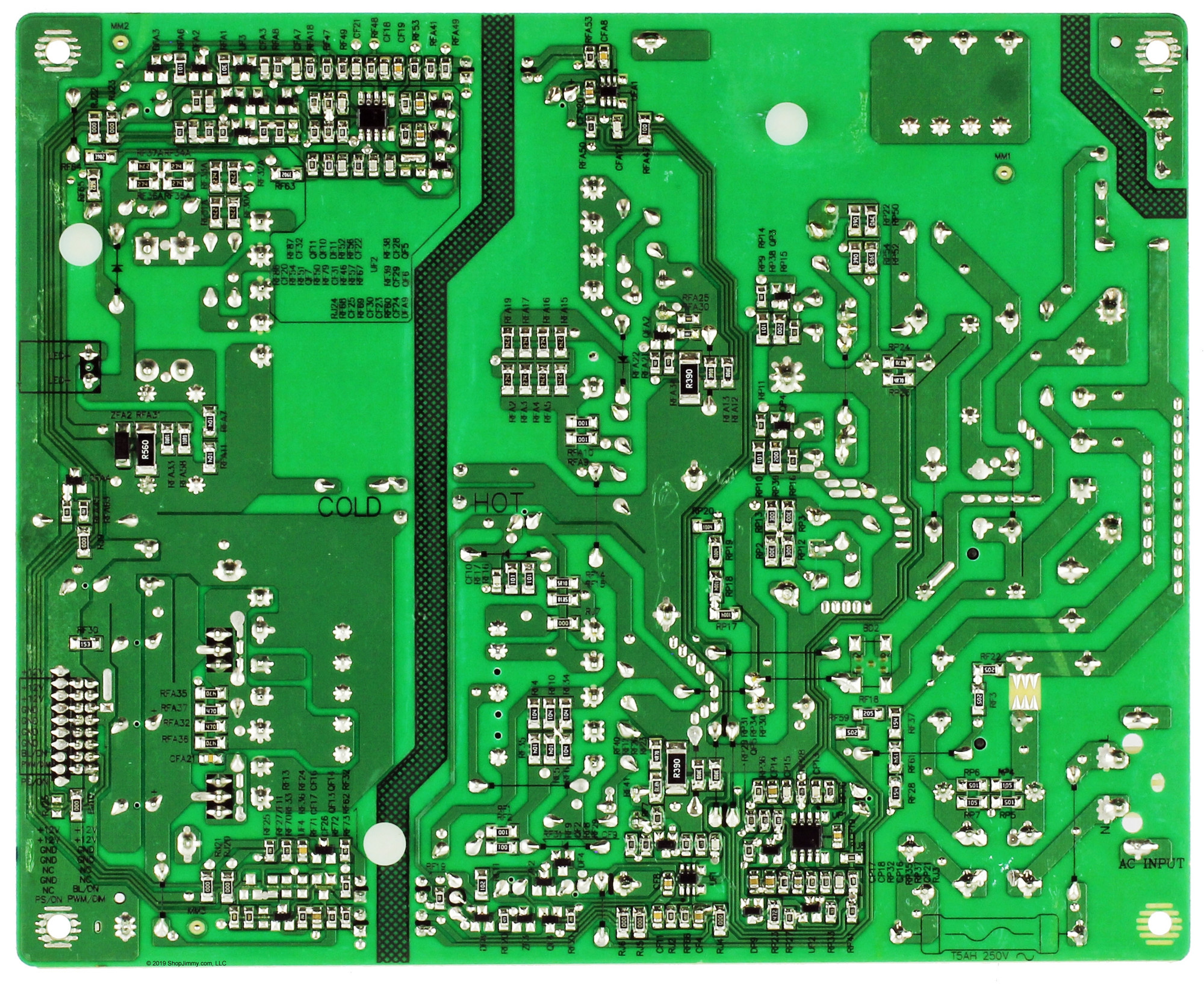

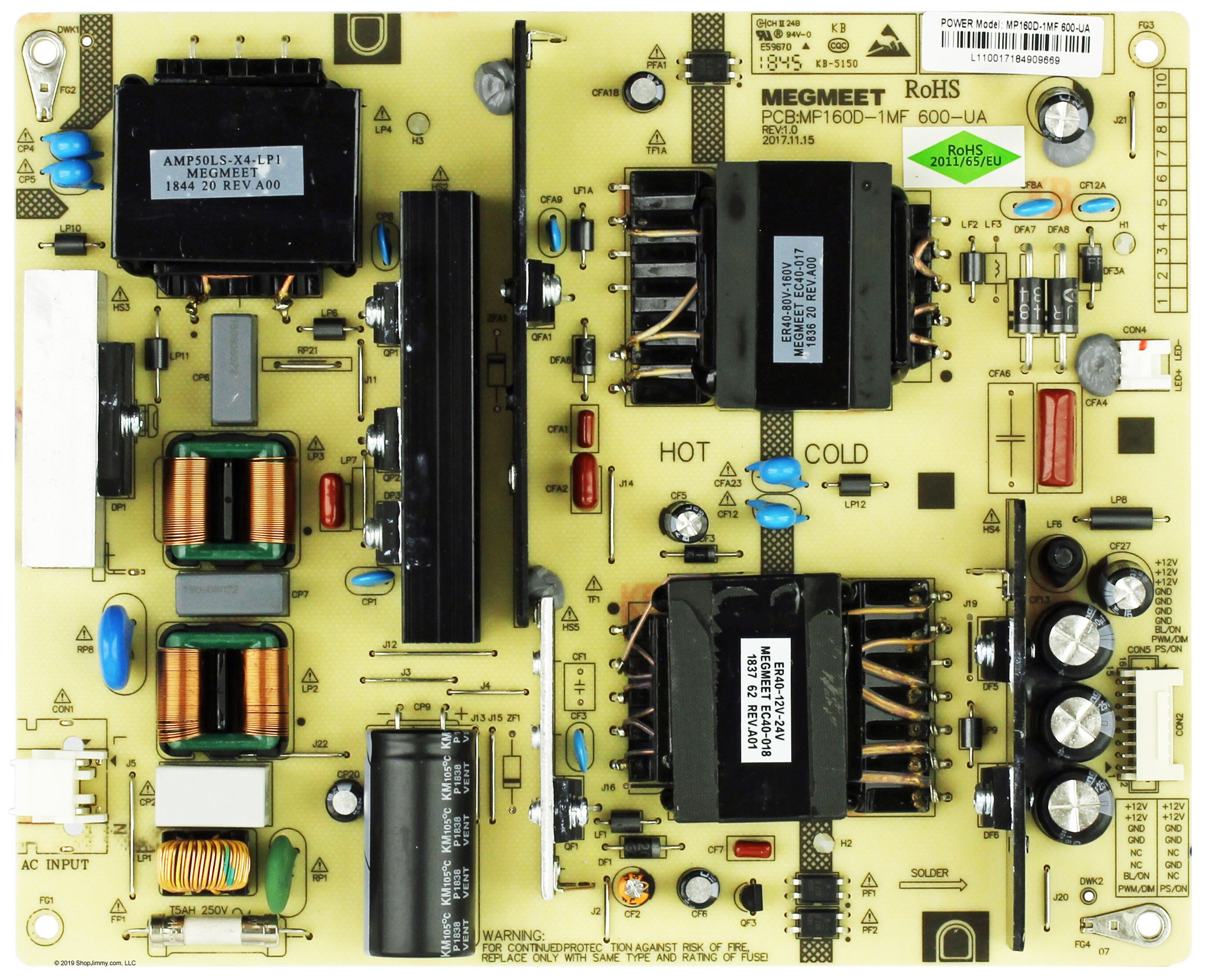

JVC LT-58KC585 (ELEMENT) MP160D-1 MF-600 UA power board eschematics

01-21-2023, 09:23 PM

I have this JVC 58" Smart LED TV Model LT-58KC585 that has no standby ligth on. I am testing the Powerboard and there is no Voltage in PS/ON I cant Find Any schematics of this board to know if there is a PS/On Voltage or it is generated by the main board, can anybody help me with a schematic for this board?
Attached Files
Tags: None
