    Makita charger flyback controller identification

    Hi All,
    I have a Makita DC10WD charger (US version) that I opened up to figure out how to convert it to 230V (actually doesn't need any work except the mains plug )

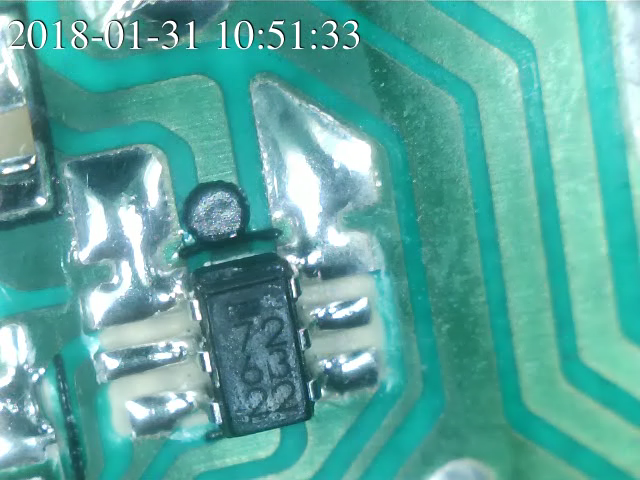

    During the "reverse engineering" i tried to do I encountered a device with "funny" (custom?) marking - according to its connections it seems to be the flyback controller, its in a SOT23-6 (or similar) package and as you can see marked with a (rather unique according to my experience and web search) 72-63-22 marking.
    from measurement it is a 65kHz device.

    out of curiosity - does anyone have any idea what part this actually is?
    Thanks!
