    Trying to find datasheet for 3108L

    Hi guys

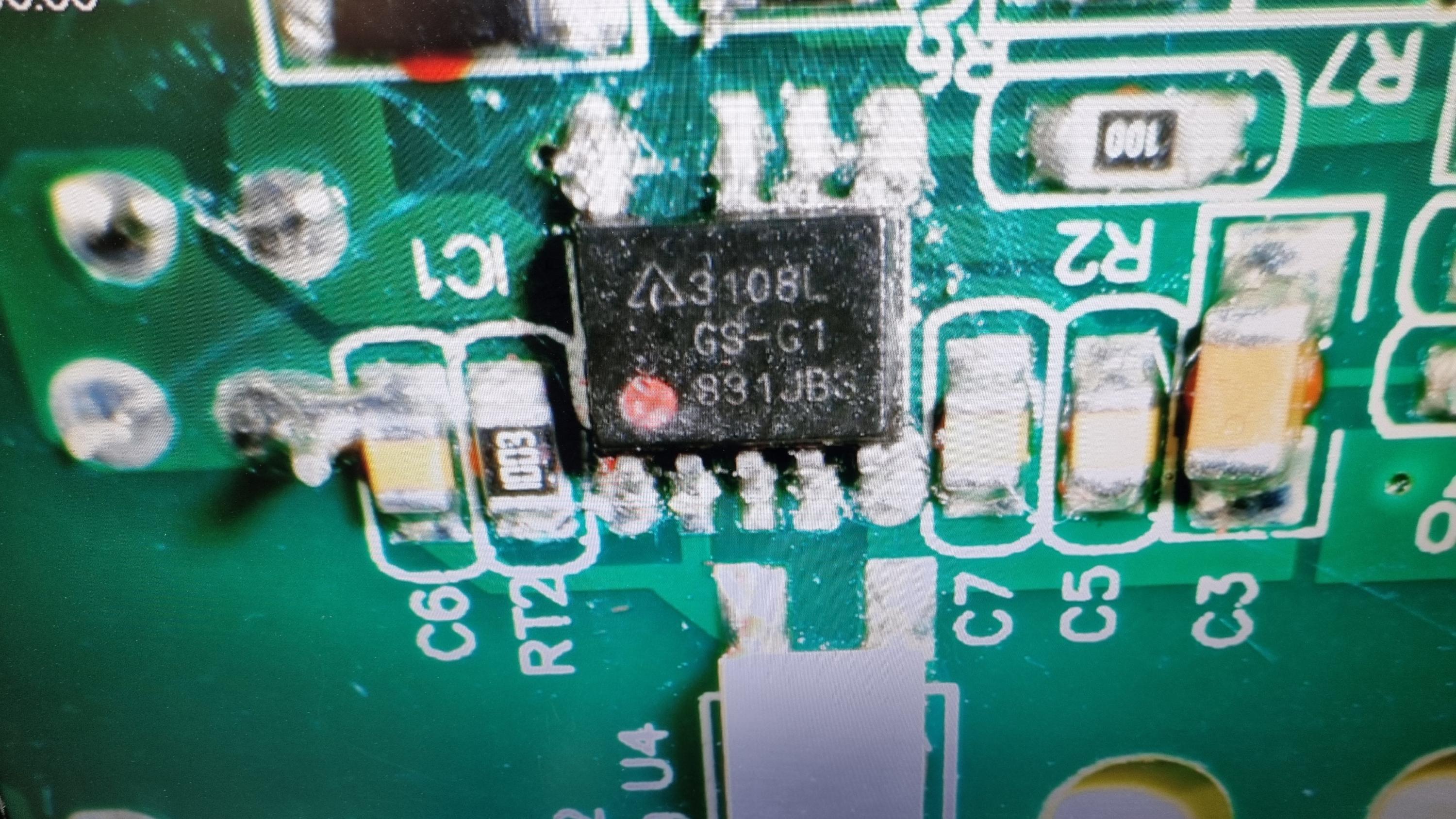

    This chip is in a 65W USB-C PSU. It doesn't drive the Transformer directly, though it clearly has a high voltage pin as there is the typical missing pin space next to it. There is a mosfet connecting to the SMPS transformer primary.

    I think Vcc may be on pin 5 but don't take that as gospel.

    Can anyone identify it? I'm looking for a datasheet


    Thanks
    Rich
    Attached Files
    Follow me on YouTube
    ------------------
    Learn Electronics Repair
    https://www.youtube.com/channel/UCFX...R8UZ2vg/videos
  • CapLeaker
    Leaking Member
    • Dec 2014
    • 8034
    • Canada

    #2
    Re: Trying to find datasheet for 3018L

    I think you got a typo in the subject. Anyhow I went after your pic and turned out to be a AP3108LS.
    Hopefully its nice and warm over there... got my first load of snow. Ugh.
    Attached Files

    Comment

    • Per Hansson
      Super Moderator
      • Jul 2005
      • 5895
      • Sweden

      #3
      Re: Trying to find datasheet for 3018L

      Originally posted by CapLeaker
      I think you got a typo in the subject.
      Thanks, I changed the title now.
      "The one who says it cannot be done should never interrupt the one who is doing it."

      Comment

      • stj
        Great Sage 齊天大聖
        • Dec 2009
        • 30950
        • Albion

        #4
        Re: Trying to find datasheet for 3018L

        Originally posted by CapLeaker
        I think you got a typo in the subject. Anyhow I went after your pic and turned out to be a AP3108LS.
        Hopefully its nice and warm over there... got my first load of snow. Ugh.
        Europe is cold as fuck right now - it's january

        Comment

        • CapLeaker
          Leaking Member
          • Dec 2014
          • 8034
          • Canada

          #5
          Re: Trying to find datasheet for 3018L

          Originally posted by Per Hansson
          Thanks, I changed the title now.
          Thanks Per!

          Originally posted by stj
          Europe is cold as fuck right now - it's january
          It's not that bad temperature wise here. We do get a few cold nights at -15C, but a lot of the time it's around the 0C mark in the winter. Yesterday I got 15cm snow so that's first time this season I had to deal with it.
