    Macbook Air A1369, schem and boardview required

    Client has dropped a Macbook Air off to me, they accidentally shorted the USB port (nice charring in there too).

    Magsafe gives green, then orange activity, so at least I know something is alive (G3V42H and SMC perhaps).

    Doesn't turn on at all, checked for activity on the LCD using a torch through the Apple logo, nothing.
    Tried holding down option, still nothing.
    Tried external keyboard, nothing.

    Would love a boardview and schem if available.

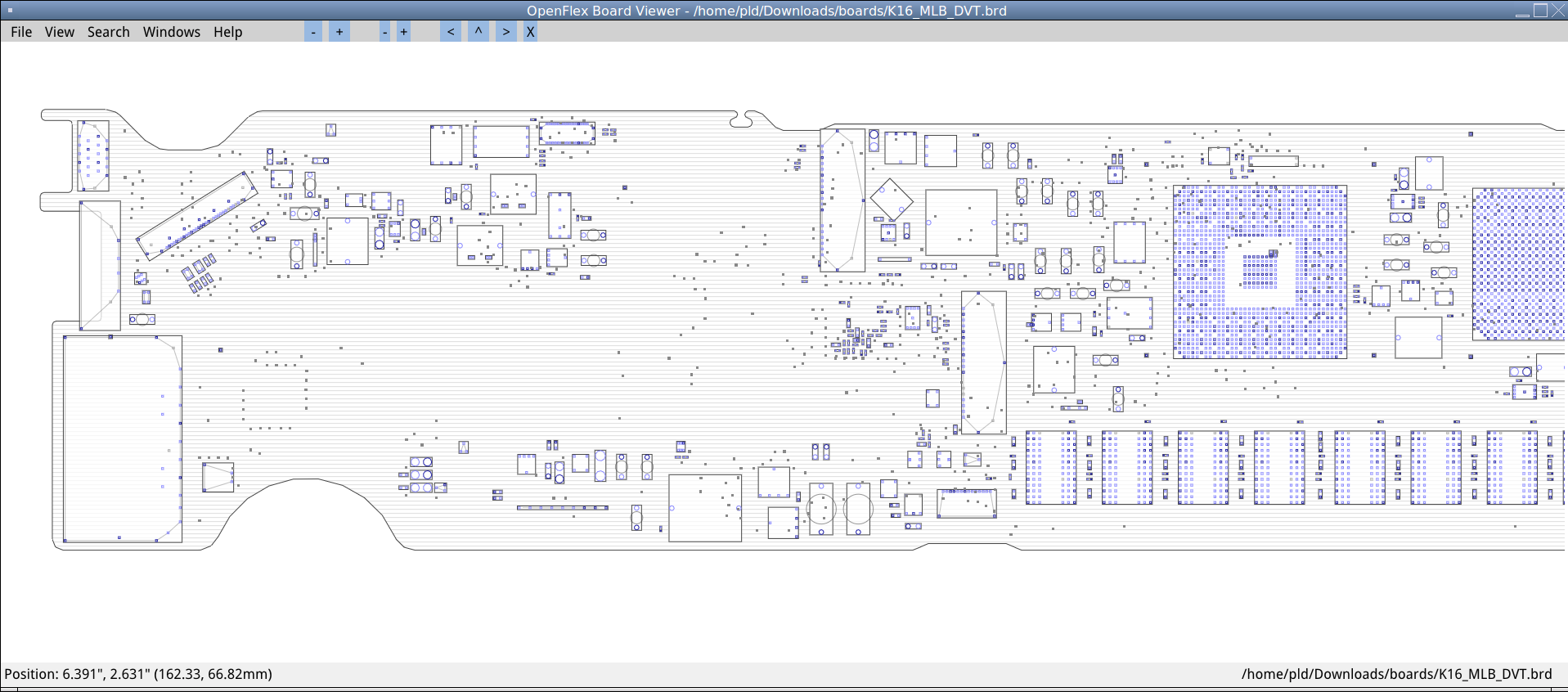

    Also, if you're wanting the latest boardview software that does a lot more than the Testlink stuff, have a look at https://github.com/inflex/OpenBoardView/releases/tag/R3
    YouTube Repair Videos - https://www.youtube.com/user/19PLD73
    FlexBV BoardView software - Linux/OSX/Windows - http://pldaniels.com/flexbv
  • diif
    Badcaps Legend
    • Feb 2014
    • 6978
    • England

    #2
    Re: Macbook Air A1369, schem and boardview required

    Have you got the motherboard number ?

    Comment

    • inflex
      Badcaps Veteran
      • Aug 2012
      • 544
      • Australia

      #3
      Re: Macbook Air A1369, schem and boardview required

      Originally posted by diif
      Have you got the motherboard number ?
      Sorry, knew I'd forget something. 820-2838 A
      YouTube Repair Videos - https://www.youtube.com/user/19PLD73
      FlexBV BoardView software - Linux/OSX/Windows - http://pldaniels.com/flexbv

      Comment

      • diif
        Badcaps Legend
        • Feb 2014
        • 6978
        • England

        #4
        Re: Macbook Air A1369, schem and boardview required

        Here you go.
        Attached Files

        Comment

        • inflex
          Badcaps Veteran
          • Aug 2012
          • 544
          • Australia

          #5
          Re: Macbook Air A1369, schem and boardview required

          Looks good, thank you sir.
          Attached Files
          YouTube Repair Videos - https://www.youtube.com/user/19PLD73
          FlexBV BoardView software - Linux/OSX/Windows - http://pldaniels.com/flexbv

          Comment

          • diif
            Badcaps Legend
            • Feb 2014
            • 6978
            • England

            #6
            Re: Macbook Air A1369, schem and boardview required

            You're welcome.

            Comment

            • Pragmatiko
              Badcaps Veteran
              • Jul 2013
              • 468
              • IT

              #7
              Re: Macbook Air A1369, schem and boardview required

              Hi all, on that notebook, have 3,3V but missing 5V on L7220 could i have U7201 broken? No short found

              Tks

              Comment

              • smartmixjp
                New Member
                • Sep 2016
                • 2
                • Brazil

                #8
                Re: Macbook Air A1369, schem and boardview required

                Originally posted by diif
                Here you go.
                Thank you, Man.

                You save my day!

                Comment

                • hpibmx
                  New Member
                  • Jan 2021
                  • 7
                  • Malaysia

                  #9
                  Re: Macbook Air A1369, schem and boardview required

                  Originally posted by diif
                  Here you go.
                  Thank you man!

                  Comment

                  • thedoger82
                    Member
                    • Jul 2017
                    • 24
                    • colombia

                    #10
                    Re: Macbook Air A1369, schem and boardview required

                    Originally posted by diif
                    Here you go.
                    Thanks a lot!!!

                    Comment
