Does boardview indicate sequence of component connection?

Collapse
X
Collapse

  • Page of 1
  • Time
  • Show
Clear All
new posts
Previous template Next
  • jekkotech
    New Member
    • Oct 2020
    • 2
    • indonesia
    #1

    Does boardview indicate sequence of component connection?

    Hello,

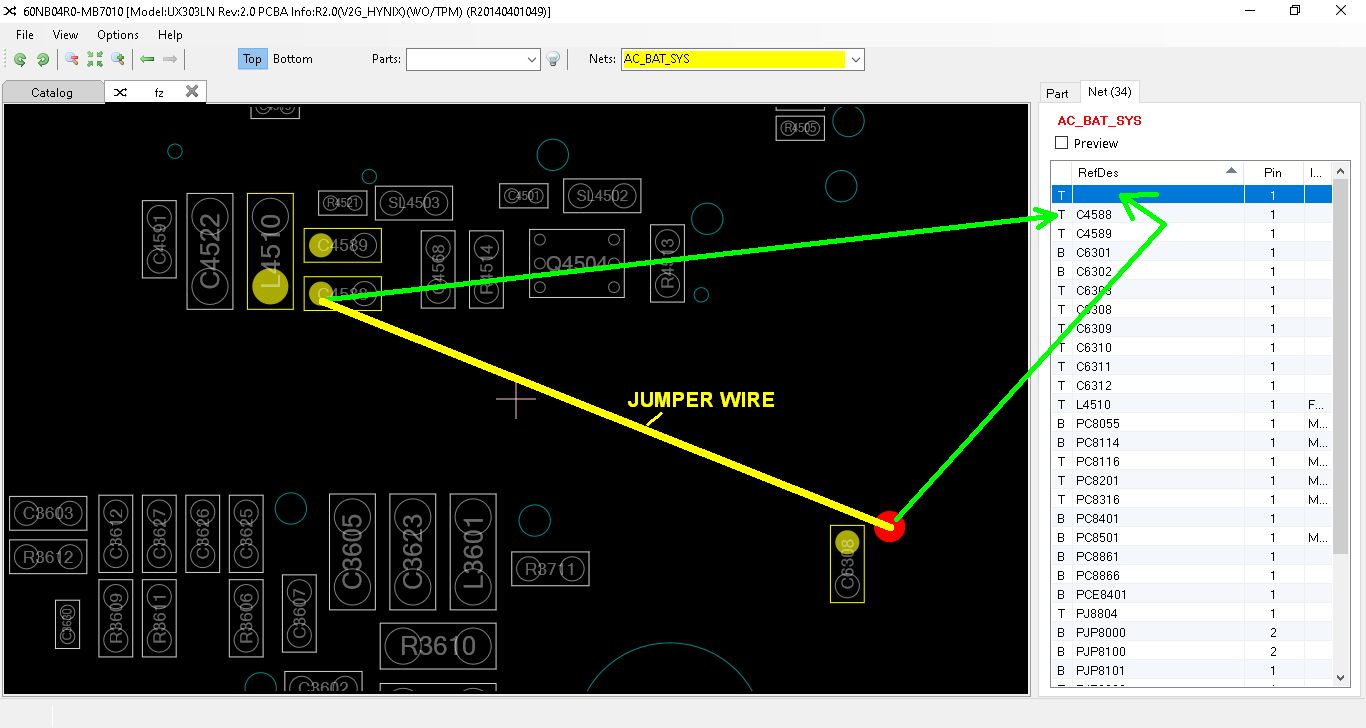

    Due to burnt ferrite bead caused peel off pcb layer around capacitor, i am trying to make jumper wire to connect a capacitor (C4582 ) to AC_BAT SYSTEM pin as shown on the attachment.

    Viewing boardview of ASUS UX303LN Rev. 2.0, i assume those components indicate sequence of connection (NET on the right column):
    Top
    Top C4588 Pin 1
    Top C4589 Pin 1
    Bottom C6301 Pin 1
    .......

    Do you guys have suggestion for me if i am doing incorrect repair?
