    low ohm on +1.0VSUS , skylake cpu

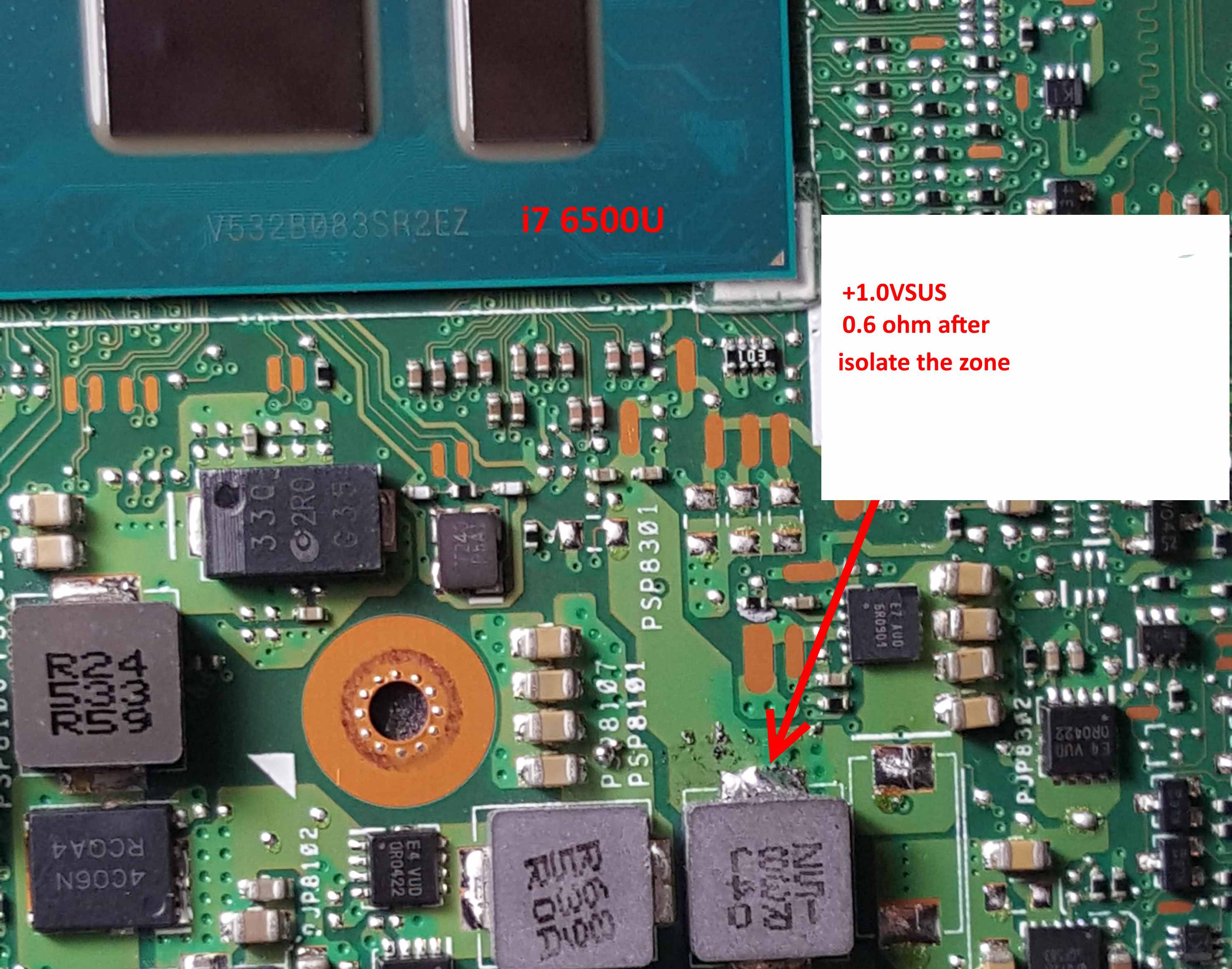

    I would like an opinion on the value in ohms of the + 1.0VSUS signal,
    I have two cards with cpu skylake and 0.6 ohms on this signal.
    Both cards have the damaged CPU? I actually think that this value is very low.
