Playstation 5 - PS5 EDM010 BOARD

12-18-2023, 04:20 AM

Hello,

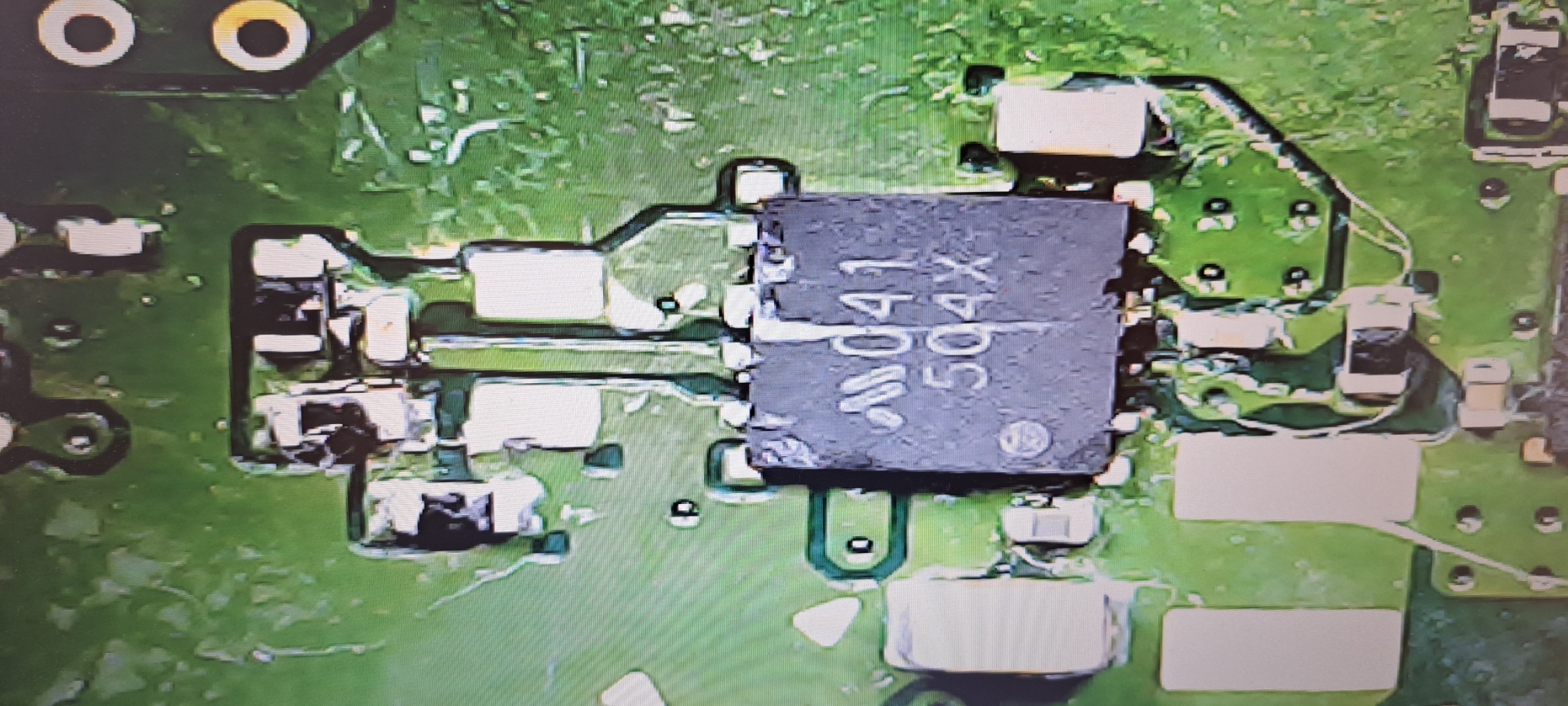

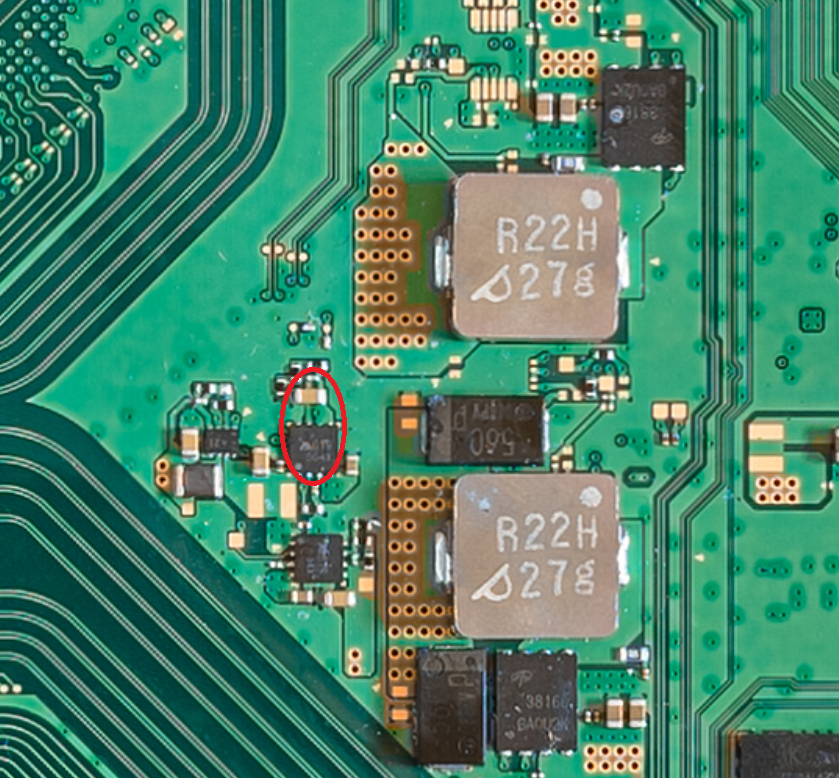

I own a PS5 with EDM010 board. I found a short maked in red on photo (I hope this is not low impedance zone) and by mistake burnt a component.
Could you help me to find this component labelled "M041 504x".
Thank you.

Attached Files
Tags: None
SuperAman

Senior Member

Join Date: Dec 2018

Posts: 121

Country: USA
#2

02-04-2024, 12:56 AM

That is the GDDR6 1.35V circuit. Those are mosfets or regulators for the ram is my guess.
