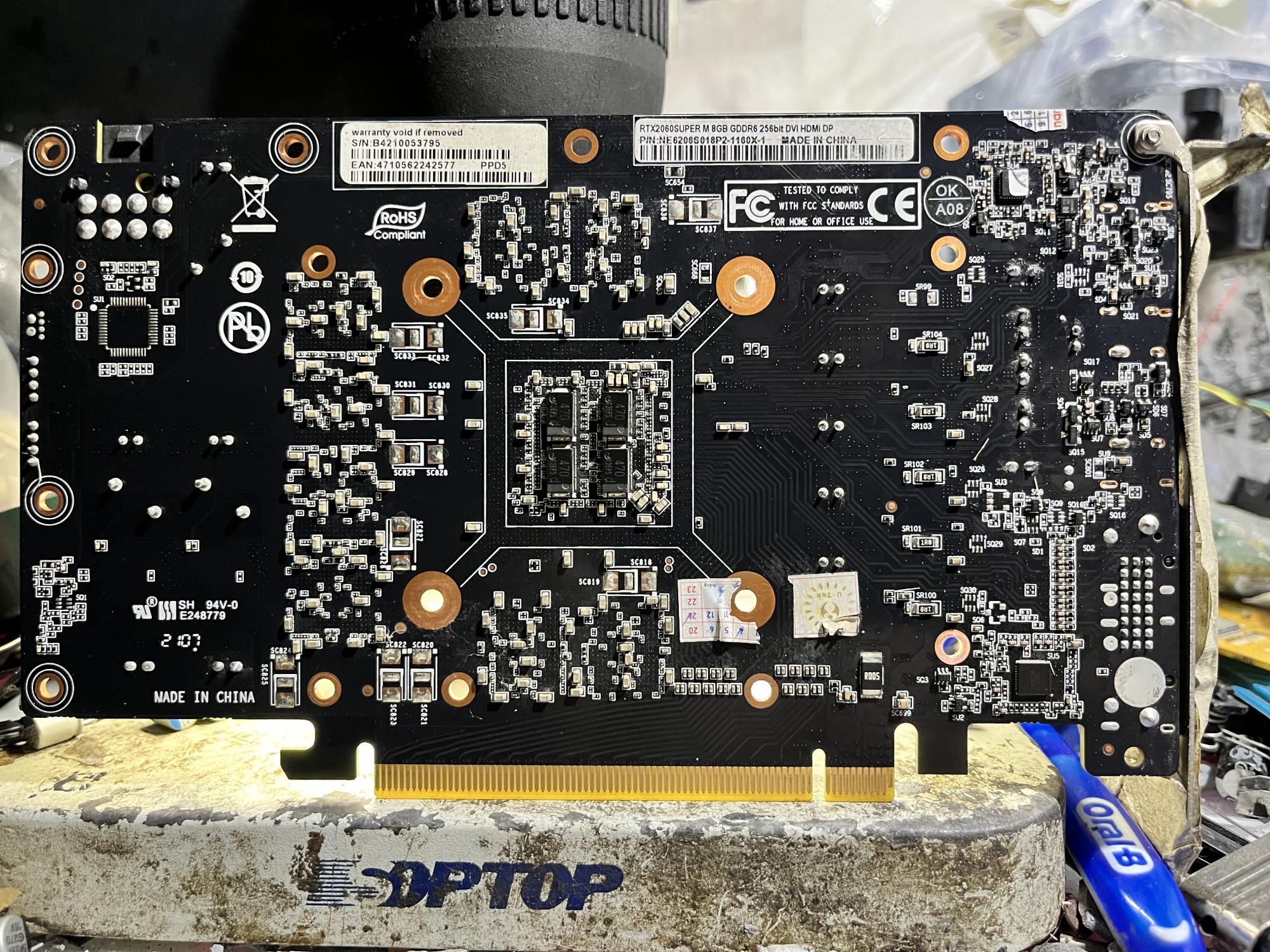

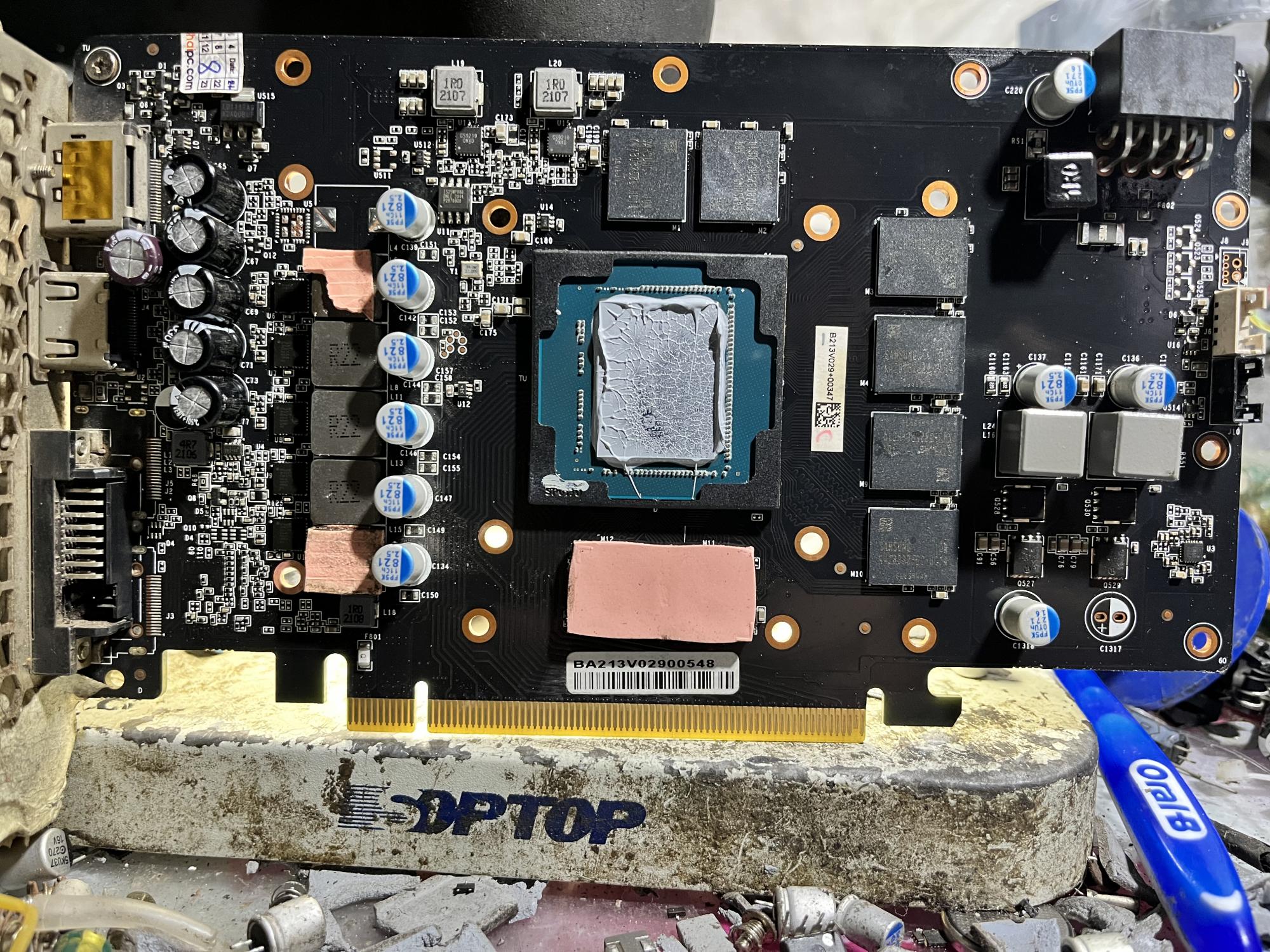

Board picture PNY RTX 2060 SUPER M 8GD6
This board was repaired by me
Pan on this board is short circuit of 12v pex because dead mosfet u6 and all filter capacitors of VRM block are weak.
Attached Files
-
This board was repaired by me
Pan on this board is short circuit of 12v pex because dead mosfet u6 and all filter capacitors of VRM block are weak.Last edited by ductranvinh; 06-20-2022, 04:39 PM.PC work for schemaltic:
Mainboard: Gigabyte Z68XP-UD4
CPU: I3-3240
Ram: 16Gb
Graphic Card: GTX 1050Ti zotac 4Gb Mini
SSD: 120Gb
HDD: 2Tb
-
PNY RTX 2060 SUPER M 8GD6
Is there a board view for that model?-
