    PowerEdge R740 coil resistance

    Hello,

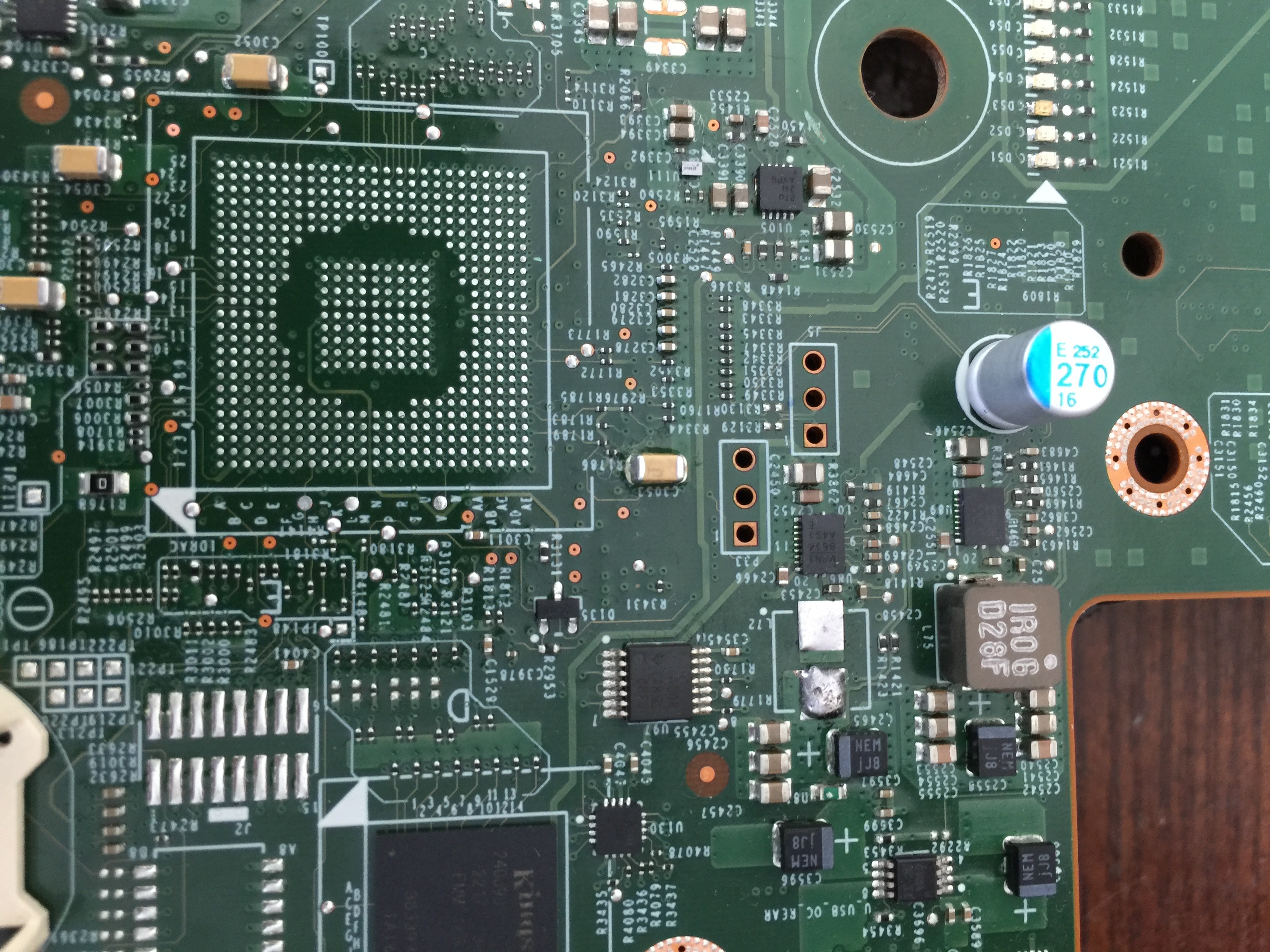

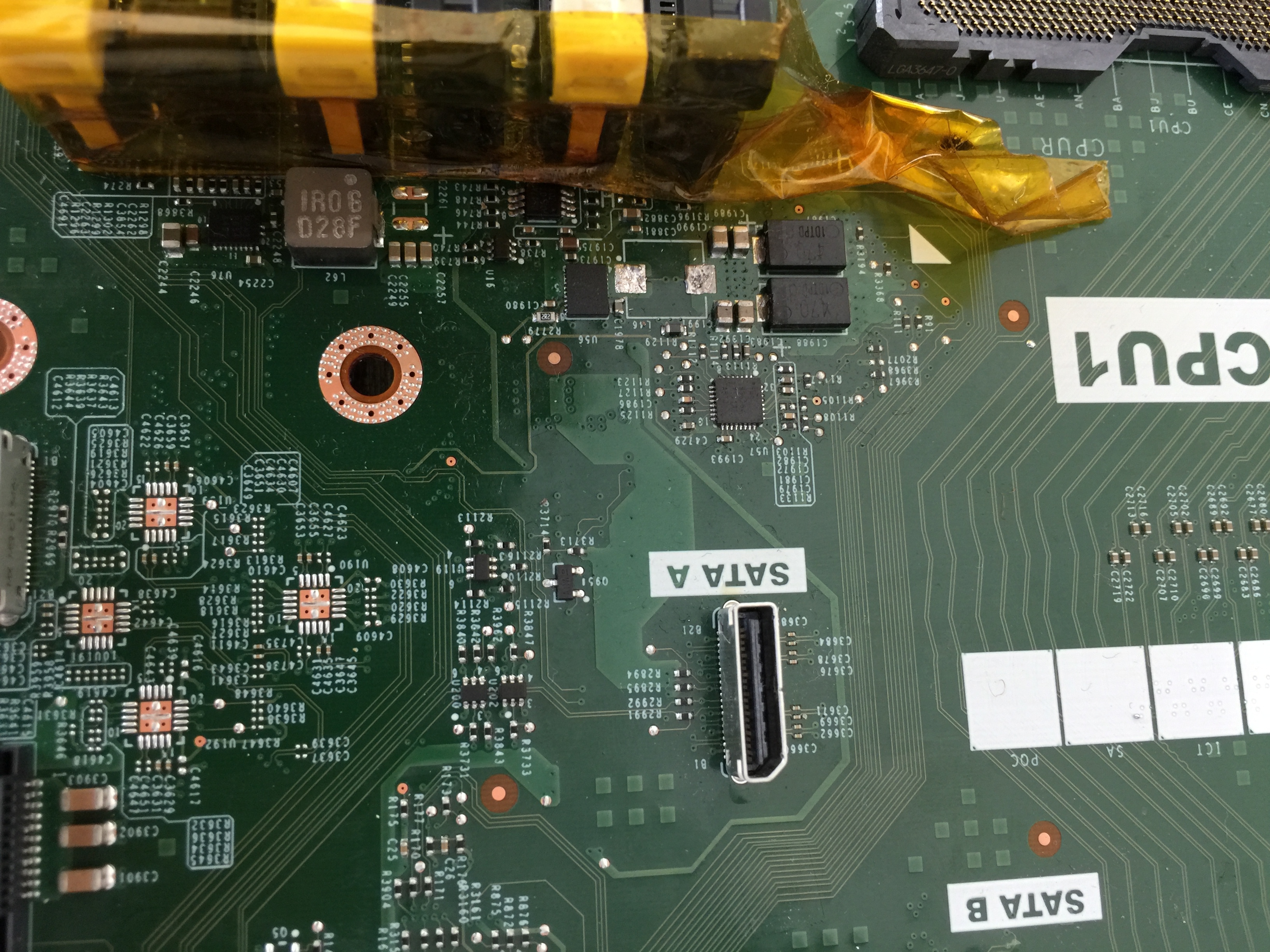

    can anyone measure the resistance on coil L12 3.3V (near USB, EMMC chip) and coil L46 1V near CPU1 ?
    thanks.
    Attached Files

    Premium supporters get full download access and other benefits.

    Tags: None
    • Jose Luis Menéndez Rama
      New Member
      • Dec 2025
      • 3
      • Mexico
      #2
      En L46 tengo 14.5 omhs.En L72 tengo 105 omhs
