    DELL DIMENSION XPS 600 UH741 Inductor replacement

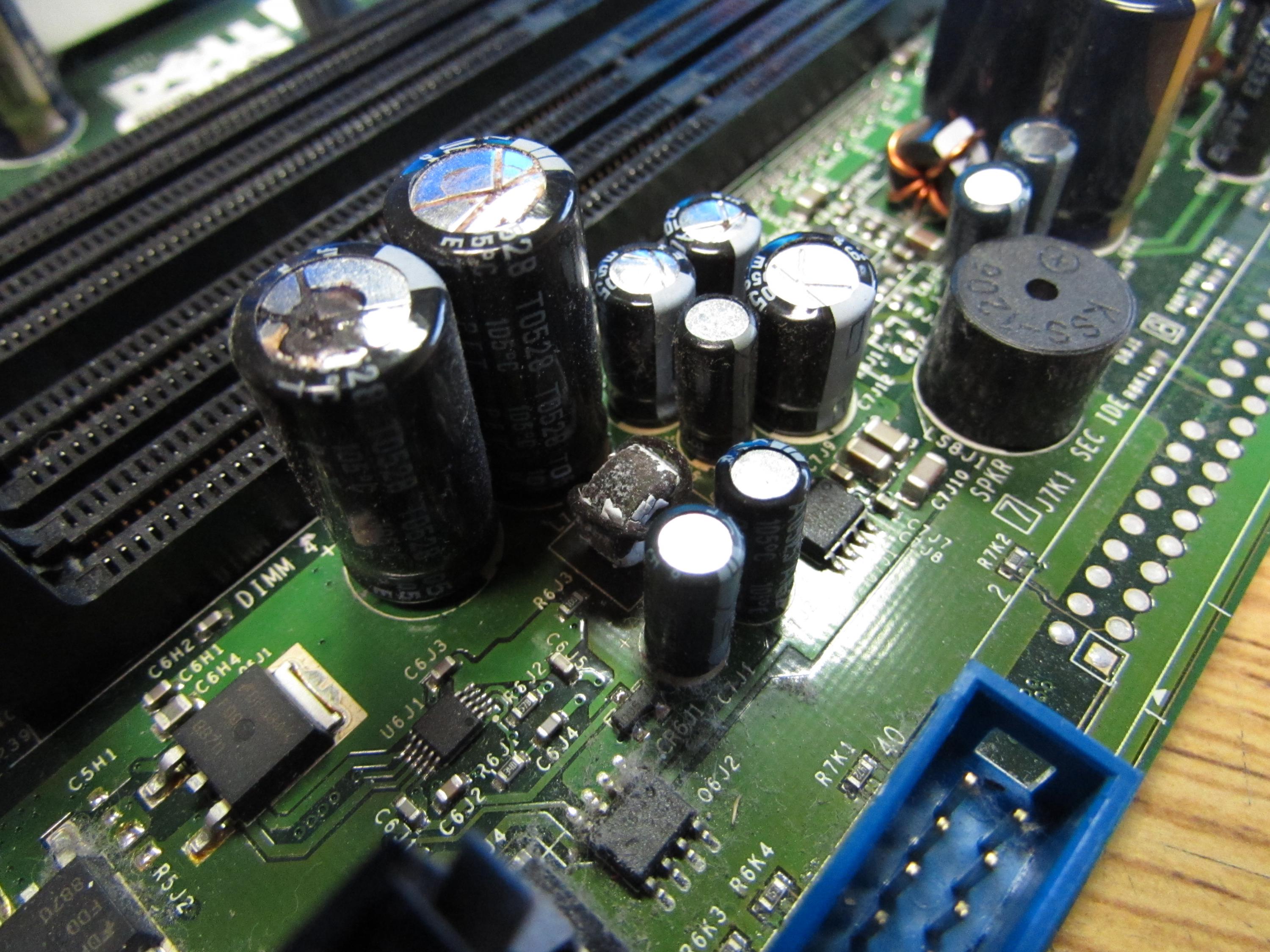

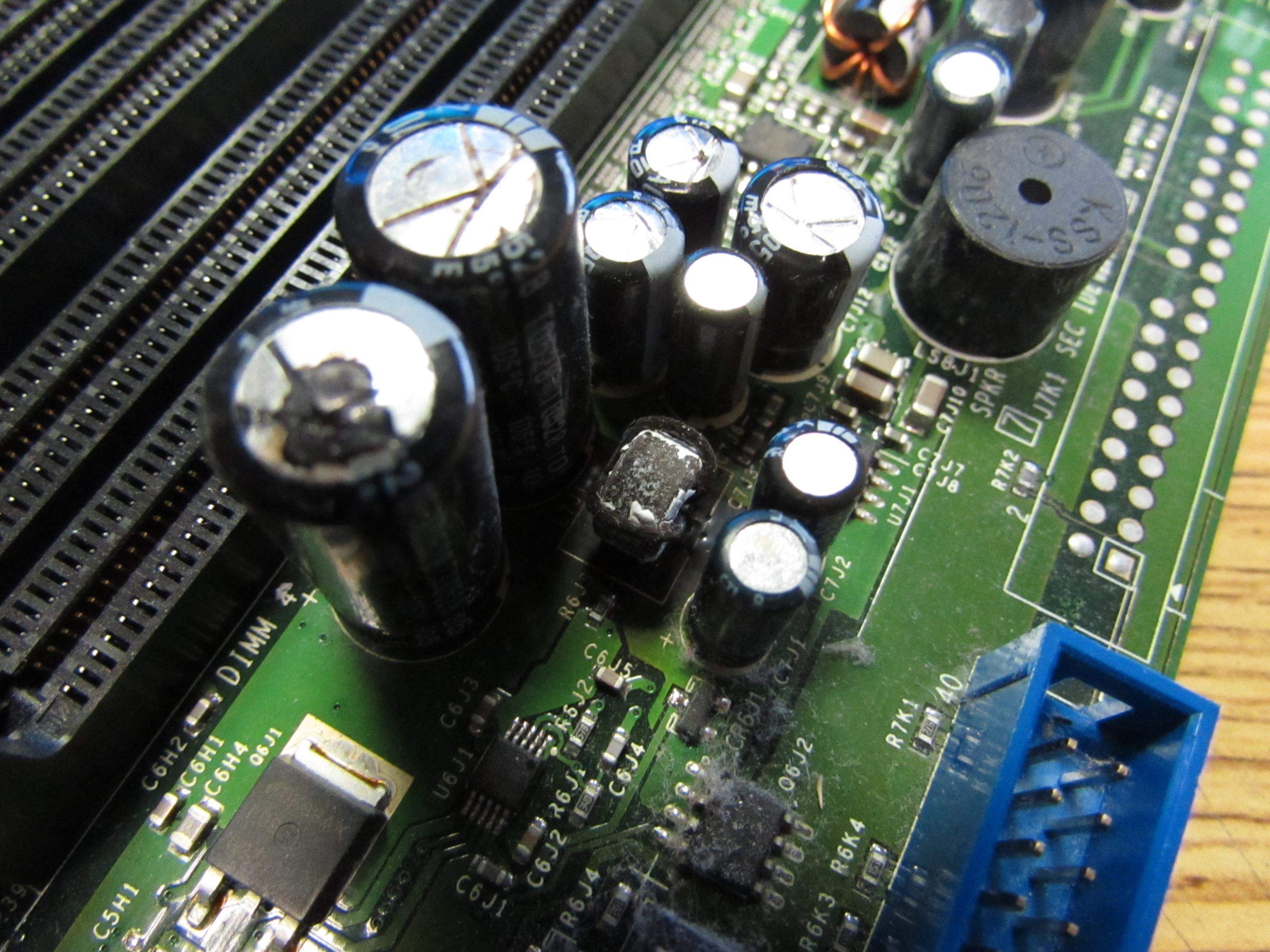

    I'm trying to repair this dell board, besides the obvious bad caps, it looks like what I believe to be an inductor went poof.

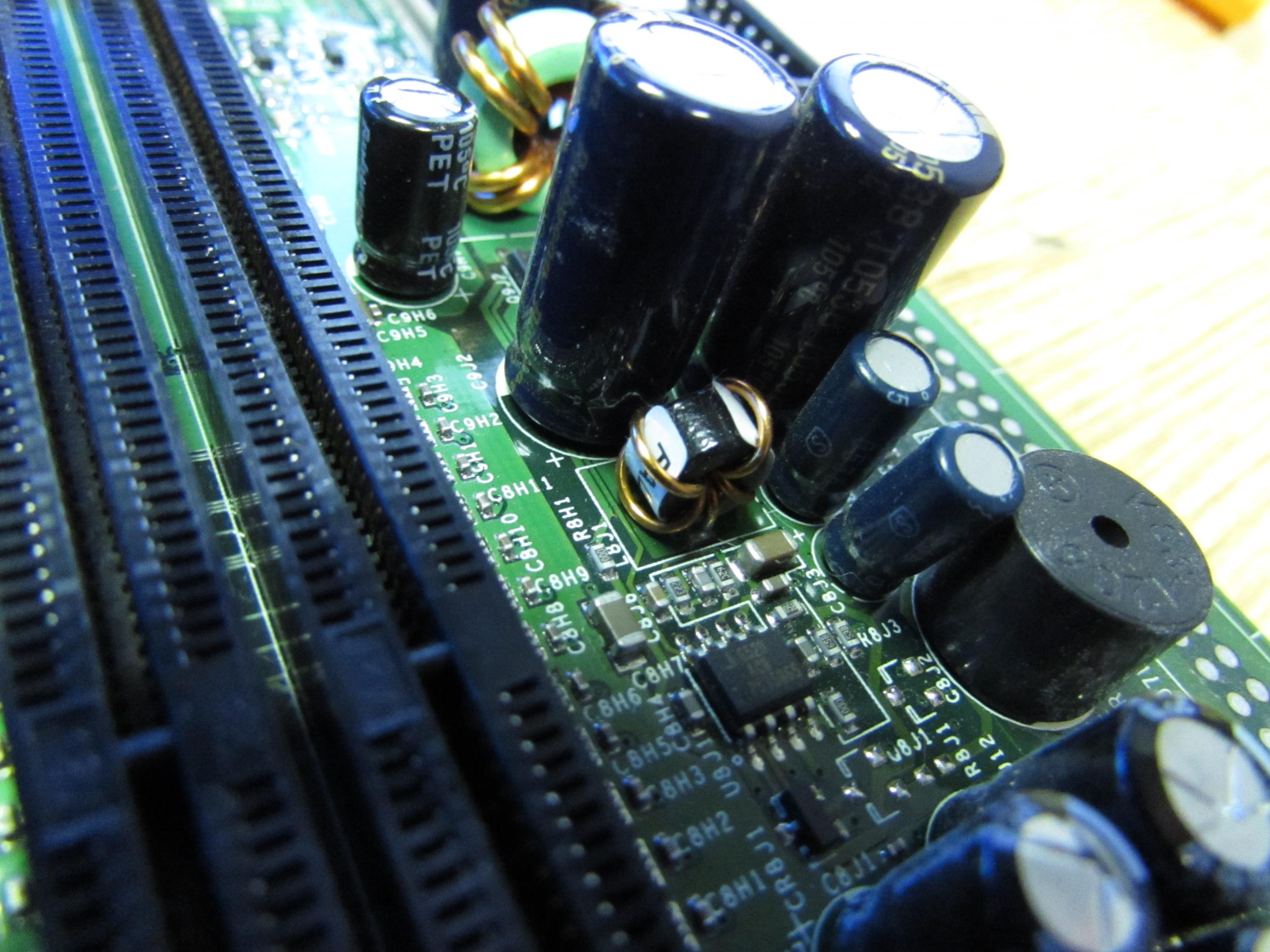

    I've attached pictures of the bad inductor as well as a similar inductor on the same board I believe to be the same. There is no markings on the similar one except for foxconn.

    Anyone know where I can find a replacement?
    Do I measure these for capacitance just like a capacitor?
    Attached Files
    Tags: None
    • Compgeke
      Badcaps Veteran
      • Feb 2014
      • 524
      • USA
      #2
      Re: DELL DIMENSION XPS 600 UH741 Inductor replacement

      I have a XPS 600 here and I can't find any identifying marks on any of the inductors either.

      I did notice that the same two Rubycon MFZ caps are bad on mine although it still works fine.

        Comment

        • c_hegge
          Badcaps Legend
          • Sep 2009
          • 5219
          • Australia
          #3
          Re: DELL DIMENSION XPS 600 UH741 Inductor replacement

          ^
          Recap it now. Otherwise, it will suffer the same fate as the OP's board.

          See www.badcaps.net/forum/showthread.php?t=17654
          I love putting bad caps and flat batteries in fire and watching them explode!!

          No wonder it doesn't work! You installed the jumper wires backwards

          Main PC: Core i7 3770K 3.5GHz, Gigabyte GA-Z77M-D3H-MVP, 8GB Kingston HyperX DDR3 1600, 240GB Intel 335 Series SSD, 750GB WD HDD, Sony Optiarc DVD RW, Palit nVidia GTX660 Ti, CoolerMaster N200 Case, Delta DPS-600MB 600W PSU, Hauppauge TV Tuner, Windows 7 Home Premium

          Office PC: HP ProLiant ML150 G3, 2x Xeon E5335 2GHz, 4GB DDR2 RAM, 120GB Intel 530 SSD, 2x 250GB HDD, 2x 450GB 15K SAS HDD in RAID 1, 1x 2TB HDD, nVidia 8400GS, Delta DPS-650BB 650W PSU, Windows 7 Pro

            Comment

            • conway
              New Member
              • Apr 2014
              • 6
              • United States
              #4
              Re: DELL DIMENSION XPS 600 UH741 Inductor replacement

              https://cdn.badcaps-static.com/pdfs/...06d746d1b1.pdf

              So this is what I need, can't find anywhere online that sells it? I will contact Falco tomorrow, but does anyone know anywhere I could source the new inductor?
