    Datasheet or Schematics? - Samsung S22F350HF

    Hi there

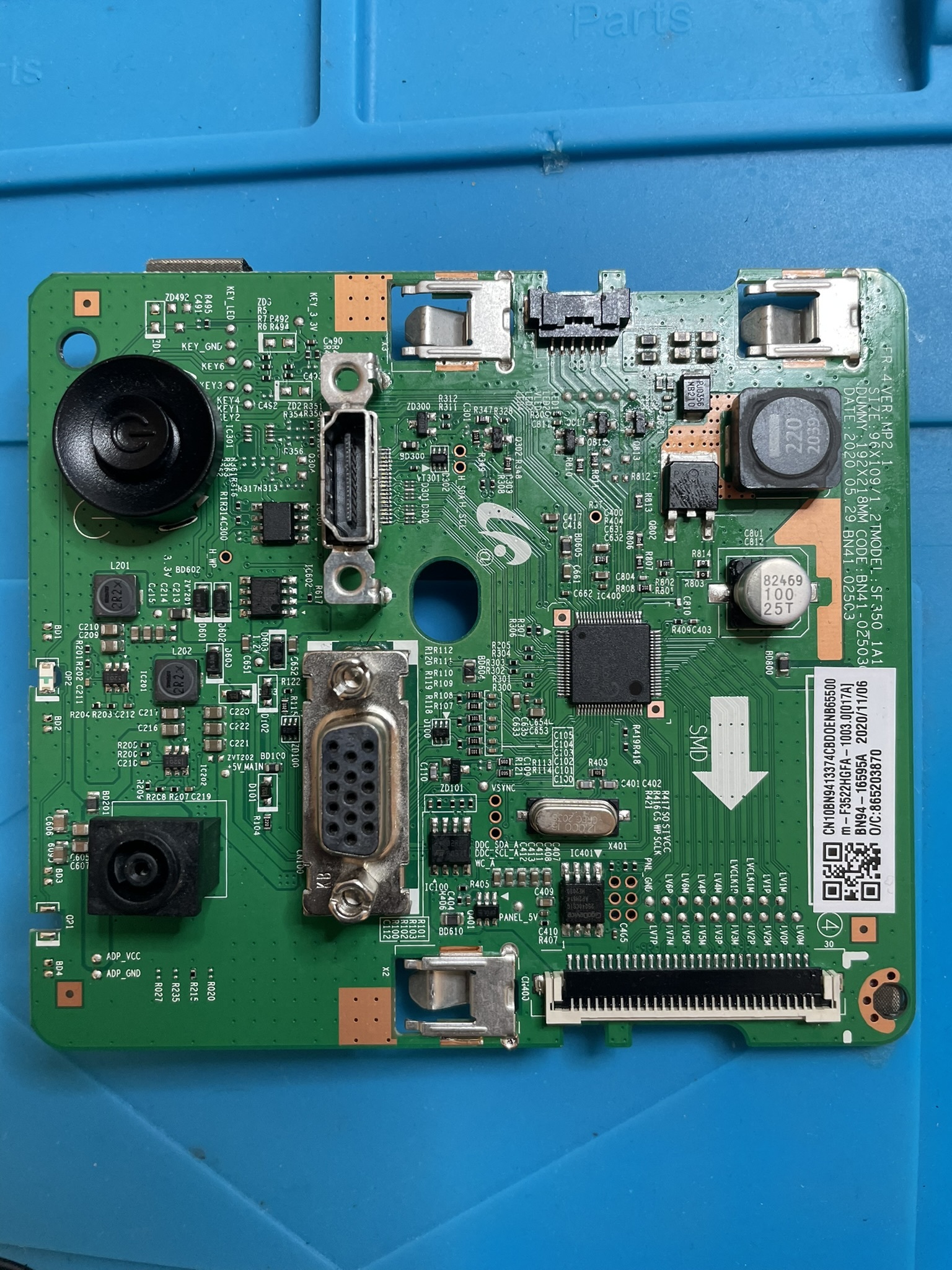

    i have a small computer monitor, that only seems to work on the Analogue input ie VGA and not HDMI.

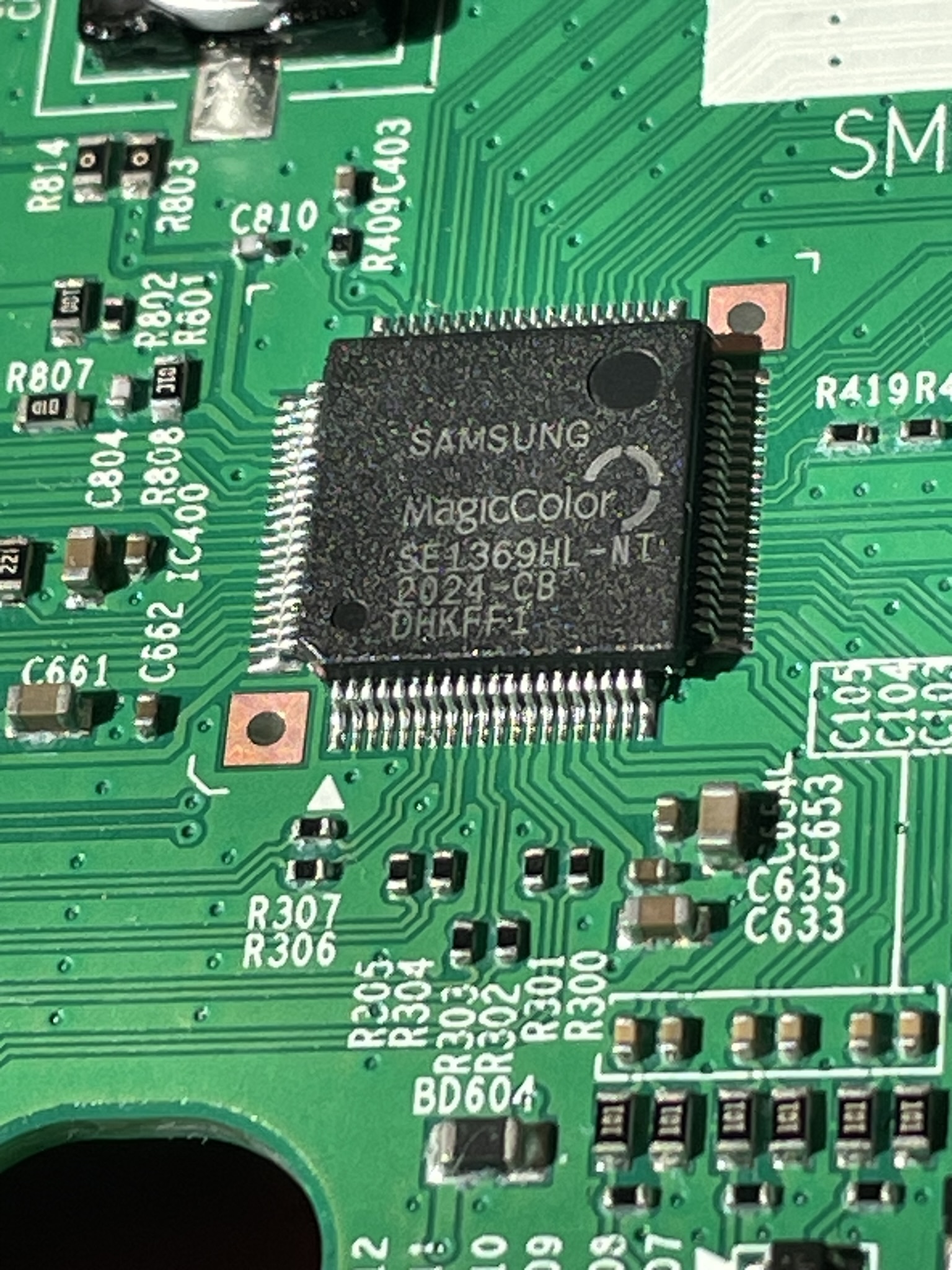

    I was wondering if anybody has a Datasheet for the SE1369HL ic please?
    There seems to be very low resistance ie virtual short around the IC

    What would cause those symptoms?
    Does that ic switch over and detect the inputs?

    Analogue, works perfectly.

    Any suggestions or schematics please?
    Everything seems to point to Aliexpress

    Thanks


    ps - There is a short across C810 and when removed, the short remains, but the Cap seems Ok
