    Samsung Syncmaster 710v Internal Views

    This unit has no probs, actually it is a great budget unit for the office. But lets see some internal pics to check what caps they used.

    The monitor is Model 710V C, Model Code : GS17VSSS/EDC, Type No. GH17LS, Made in Slovakia Jan 05

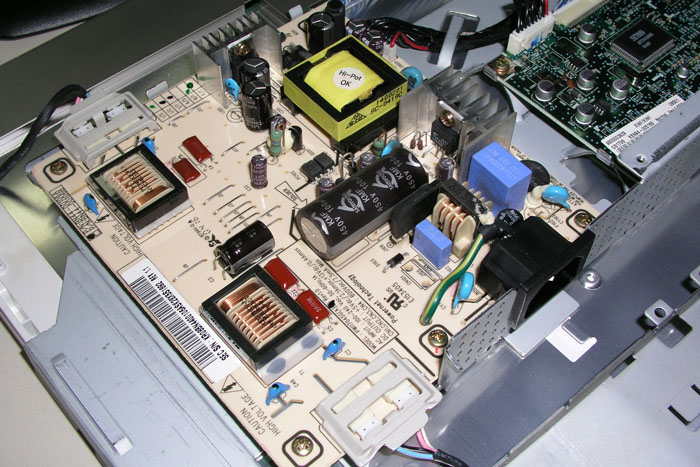

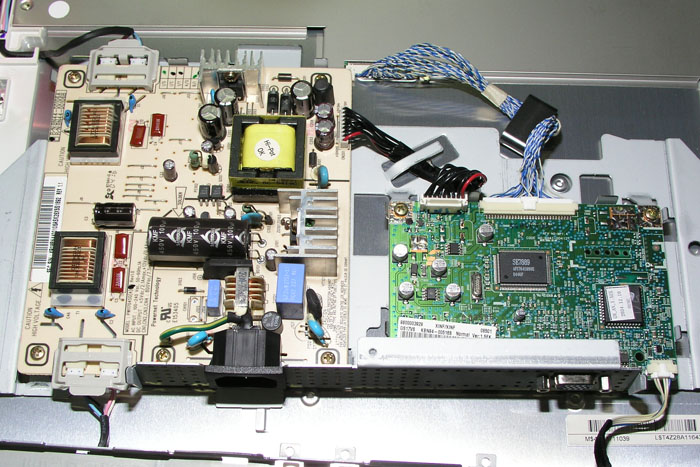

    Combination PSU and Inverters board, then separate display board

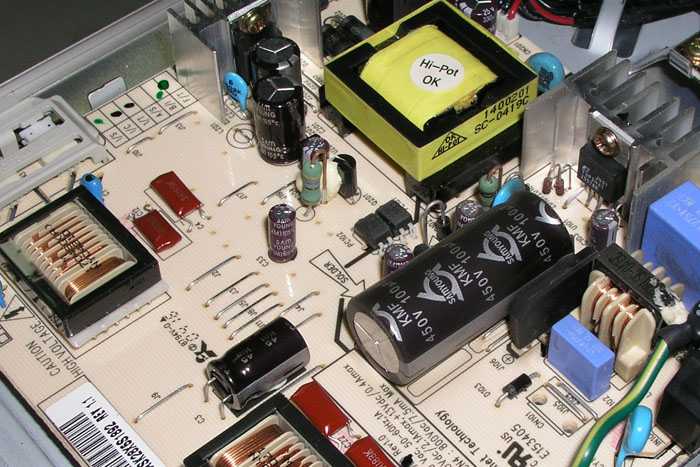

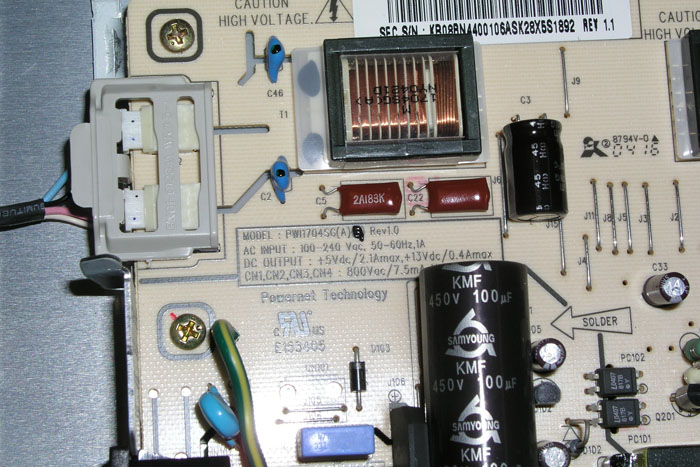

    Combination PSU and Inverters board by Powernet Technology, model : PWI1704SG(A) Rev 1.0
    Attached Files
    Last edited by willawake; 02-09-2006, 02:53 PM.
    capacitor lab yachtmati techmati
    Tags: None
    #2
    Re: Samsung Syncmaster 710v Internal Views

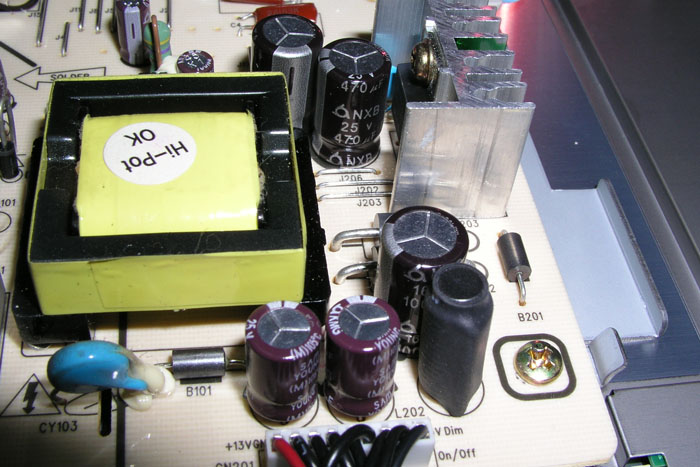

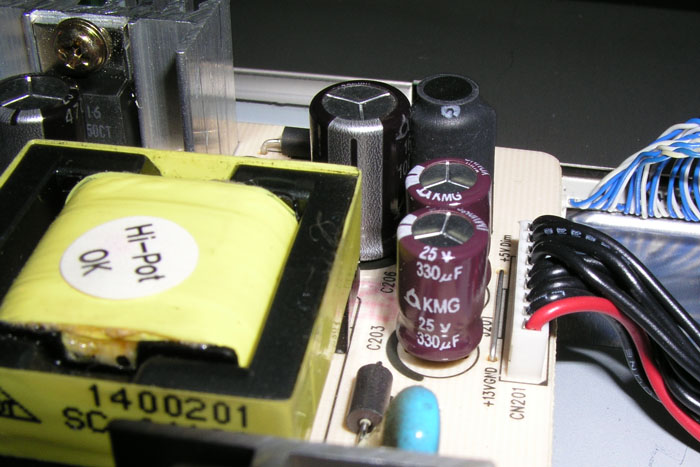

    All Sam Young Caps KMF, KMG, NXB

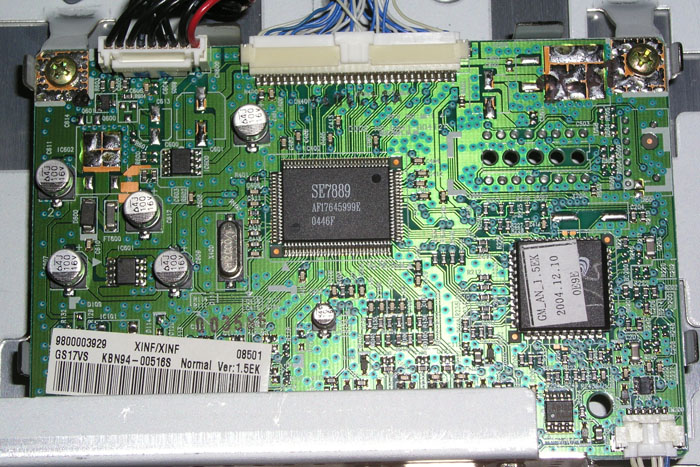

    display board GS17VS KBN-00516S

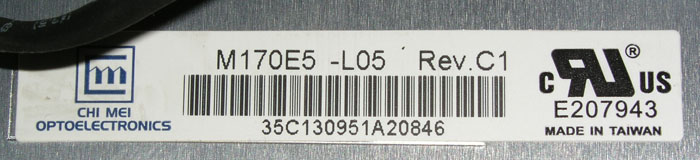

    17" Panel by Chi Mei Optoelectronics M170E5 -L05
    Attached Files
    capacitor lab yachtmati techmati

    Comment

      #3
      Re: Samsung Syncmaster 710v Internal Views





      Attached Files
      capacitor lab yachtmati techmati

      Comment

        #4
        Re: Samsung Syncmaster 710v Internal Views

        Originally posted by willawake
        Made in Slovakia
        Wow

        Comment

          #5
          Re: Samsung Syncmaster 710v Internal Views

          yep all my samsung made in slovakia. including my beautiful 173p.

          Attached Files
          Last edited by willawake; 02-09-2006, 03:01 PM.
          capacitor lab yachtmati techmati

          Comment

            #6
            Re: Samsung Syncmaster 710v Internal Views

            I knew that Samsung manufactures CRT monitors here. Looks like LCDs too.

            Comment

              #7
              Re: Samsung Syncmaster 710v Internal Views

              any job that goes to EU instead of china is a good thing IMHO. With DVI LCDs 19"+ to be import taxed 14% = more jobs for assembly within EU.
              capacitor lab yachtmati techmati

              Comment

                #8
                Re: Samsung Syncmaster 710v Internal Views

                The power supply looks rather decent. For those who don't know Samyoung, they're an ally of Nippon Chemi-Con.

                I am a little bit suspicious of the SE7889 from the font on it - there seems to be no datasheet on it. This chip would be the ADC for the LCD panel. If I sold flat-panel displays, this would be the policy: No DVI (and/or HDMI), no sale - your equipment is only as good as the connection you give it; upgrade your connection before upgrading your equipment.
                My first choice in quality Japanese electrolytics is Nippon Chemi-Con, which has been in business since 1931... the quality of electronics is dependent on the quality of the electrolytics.

                Comment

                  #9
                  Re: Samsung Syncmaster 710v Internal Views

                  its good to know the caps may be ok. The SE7889 might be a Samsung internal part.

                  If I sold flat-panel displays, this would be the policy: No DVI (and/or HDMI), no sale
                  yes but price is important factor for corporate market. DVI=price uplift. i know people that would be happy to just receive A tft for their desk, no matter if it has DVI or not.

                  Looking at the present market LG and Samsung 19" value monitors with analog only connection are very nice price at the moment. (about 300 euro). hopefully the prices of the higher specced models will come down eventually.
                  capacitor lab yachtmati techmati

                  Comment

                    #10
                    Re: Samsung Syncmaster 710v Internal Views

                    One day or another, when high-definition DVD (as well as Vista playing them) comes out, they will only work with DVI/HDMI displays with HDCP. It won't work (or be downscaned) when analog inputs are used.
                    Under consumer laws, it would be considered "goods unfit for intended purpose". The law is on your side. Hollywood is always wanting to plug the analog hole - it would be a burden on local computer builders...
                    My first choice in quality Japanese electrolytics is Nippon Chemi-Con, which has been in business since 1931... the quality of electronics is dependent on the quality of the electrolytics.

                    Comment

                      #11
                      Re: Samsung Syncmaster 710v Internal Views

                      Originally posted by japlytic
                      The power supply looks rather decent. For those who don't know Samyoung, they're an ally of Nippon Chemi-Con.
                      Thnx for the heads up, found Samyoung in a car amplifier that was dead, with the UCC rectangular logo... Thought they where fake but now I know better ;-)
                      "The one who says it cannot be done should never interrupt the one who is doing it."

                      Comment

                        #12
                        Re: Samsung Syncmaster 710v Internal Views

                        Originally posted by japlytic
                        The power supply looks rather decent. For those who don't know Samyoung, they're an ally of Nippon Chemi-Con.
                        A taiwanese daughter company? A little like Taicon and Nichicon?

                        In your experience, would it be safe to assume that Sam Young's capacitors be of comparable quality to Nippon/Chemicon's?

                        Comment

                          #13
                          Re: Samsung Syncmaster 710v Internal Views

                          Samyoung are actually Korean. What does the Latin in your sig mean?
                          The great capacitor showdown!

                          Comment

                            #14
                            Re: Samsung Syncmaster 710v Internal Views

                            forget the latin, google is your friend who is the chick in the avatar
                            capacitor lab yachtmati techmati

                            Comment

                              #15
                              Re: Samsung Syncmaster 710v Internal Views

                              Originally posted by willawake
                              who is the chick in the avatar?
                              Well, you see... I wanted to make myself a few stylish avatars with this new and improved Photoshop CS2, but I'm no Leonardo da Vinci, so I figured I'd be better off starting from, and tweaking, an existing DNA-based template, specifically, a human.

                              I first planned to attack my wife with the Nikon, but she's still a little shy about it... so until she agrees, I'm afraid we'll have to settle for Laetitia Casta.

                              Comment

                                #16
                                Re: Samsung Syncmaster 710v Internal Views

                                Been working on lcd screens in the 20 to 30" size.
                                They are designed very similare to that samsung but with twelve tubes and a six stage dual inverter array.
                                By the way, these can be picked up for about $30 bucks each.
                                Find one with bad board and one with cracked screen, mix together and watch TV.
                                Jim

                                Comment

                                  #17
                                  Re: Samsung Syncmaster 710v Internal Views

                                  I've one of these monitors to repair, the power supply on the same board of the inverter doesn't work. When you switch it on all the leds go lighted and after few seconds go off. I've already changed all the caps. I also need the technical data sheet. If anybody can help pls reply
                                  Fabbry

                                  Comment

                                    #18
                                    Re: Samsung Syncmaster 710v Internal Views

                                    I may have a good reman power supply for this monitor, I just bought a large lot of powersupplies for plasma dlp and lcd sets from a company that went out of business

                                    Comment

                                      #19
                                      Re: Samsung Syncmaster 710v Internal Views

                                      How can I open the Samsung Monitor SyncMaster 710v? I have a problem : the switch ! The monitor don't go on and the green led is off ! Thanks

                                      Comment

                                        #20
                                        Re: Samsung Syncmaster 710v Internal Views

                                        Originally posted by squiky View Post
                                        How can I open the Samsung Monitor SyncMaster 710v?
                                        Pry it apart like so

                                        http://www.youtube.com/watch?v=Ul5LhuCT1y8
