I'm trying to source a replacement DC power socket for a Sony ICF-SW55. I can't find the specific part for this radio, nor any other Sony product that uses the same part, nor anything with the same pinouts, nor a donor board.

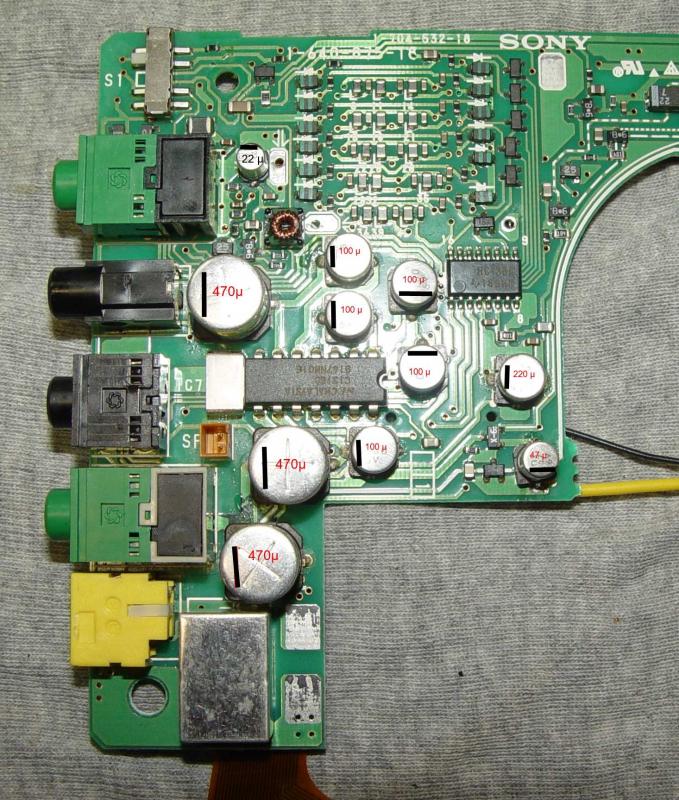

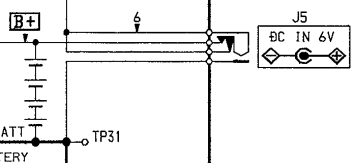

As you can see from the circuit diagram, the functionality is pretty standard with an NC jack-operated switch across the battery, but the physical pin layout on is not. It's the yellow item on the PCB.
I do want to stay with the exact replacement, if possible. I've been looking for this thing for a few years now!
As you can see from the circuit diagram, the functionality is pretty standard with an NC jack-operated switch across the battery, but the physical pin layout on is not. It's the yellow item on the PCB.
I do want to stay with the exact replacement, if possible. I've been looking for this thing for a few years now!
