    Need help identifying chip on Samsung TV wifi card BN96-01148X

    Hello everyone,

    Trying to fix this wifi module from a Samsung television part # BN96-01148X, model # of part is WIDT-20R

    The chip itself is labelled

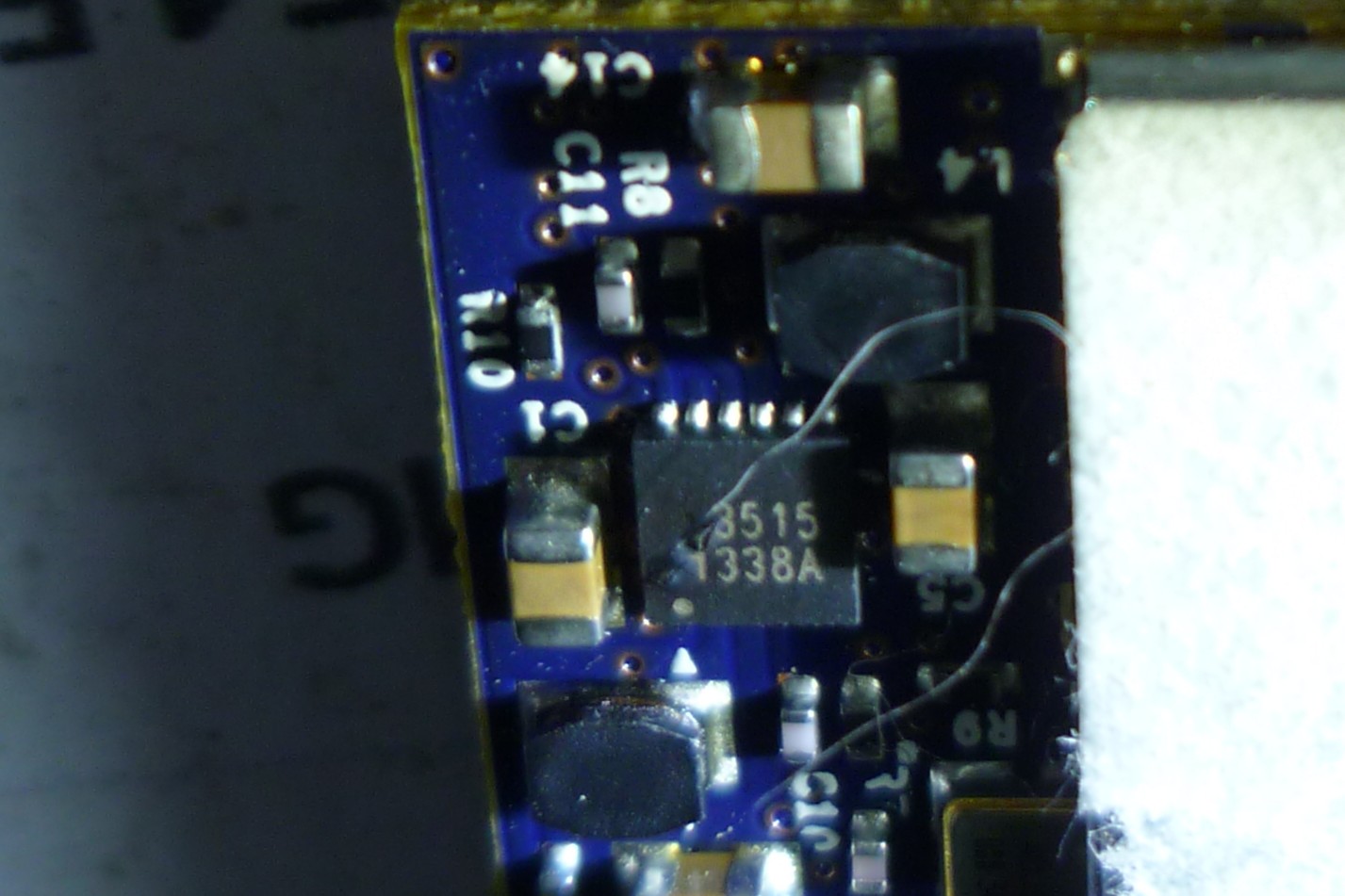

    3515 1338A or maybe 8515 1338A, the first digit having been touched by the short circuit inside the chip. Tried tracing this part with Digikey with not luck and have searched the web for a schematics or part list, but to no avail.

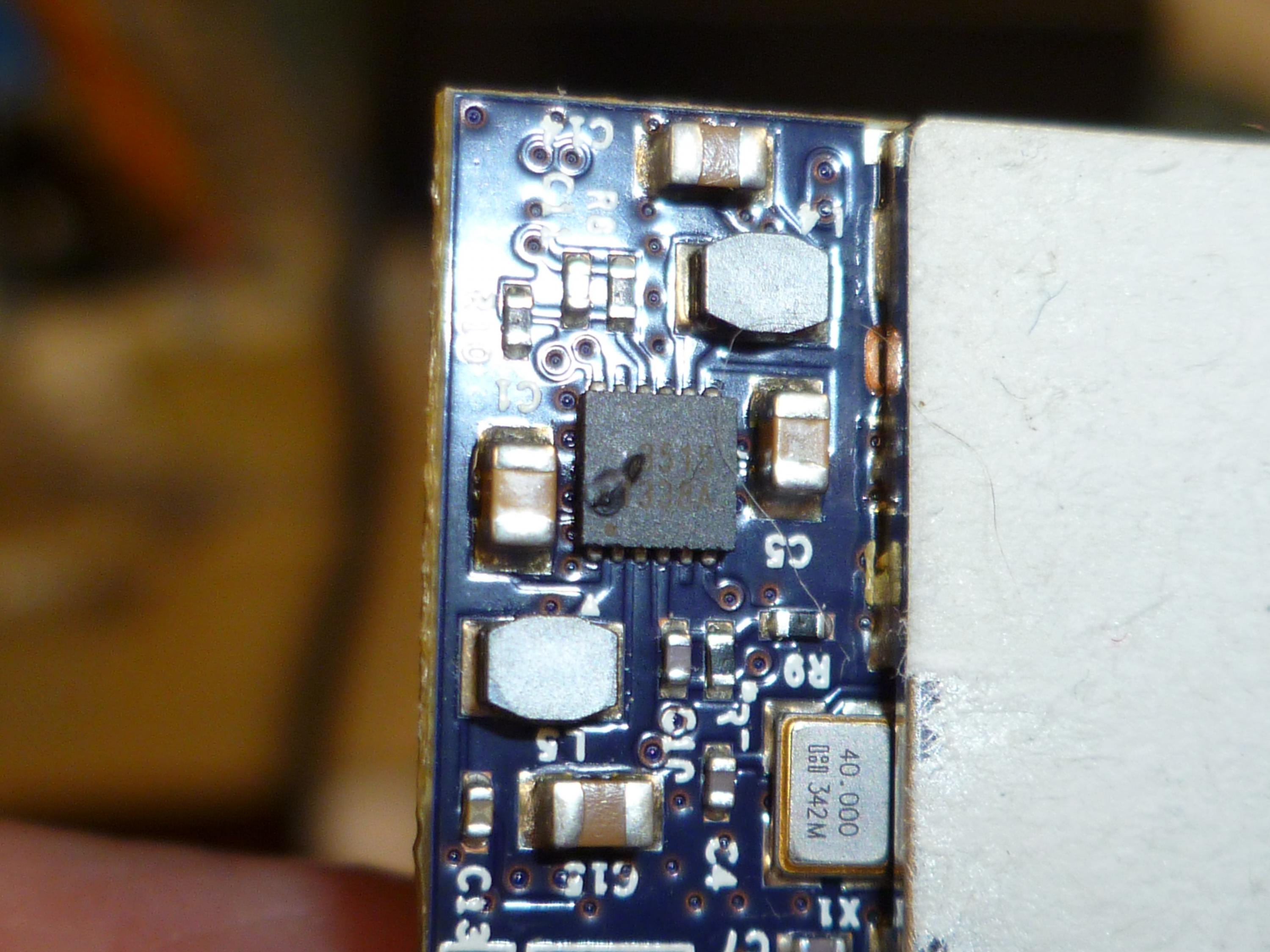

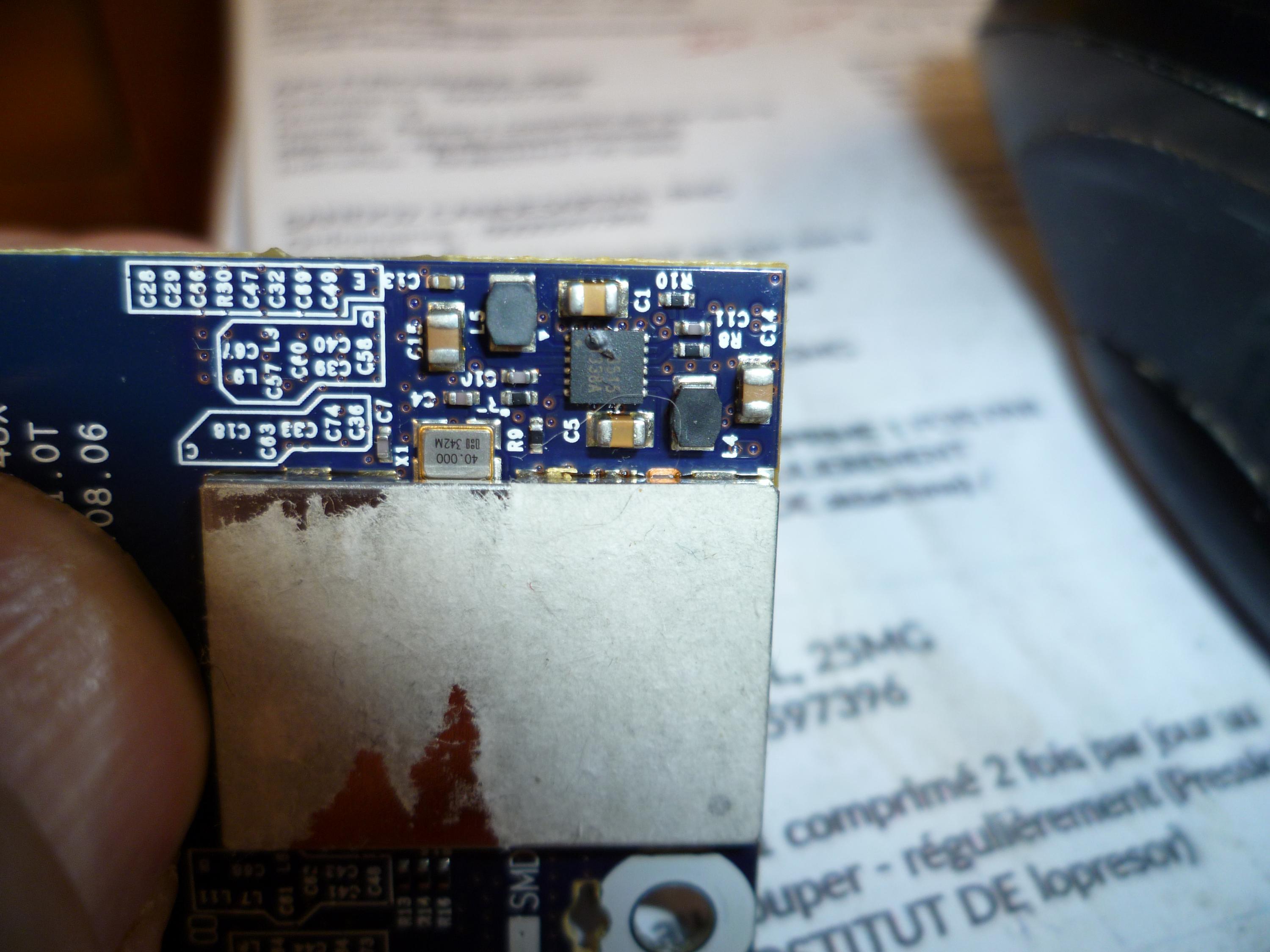

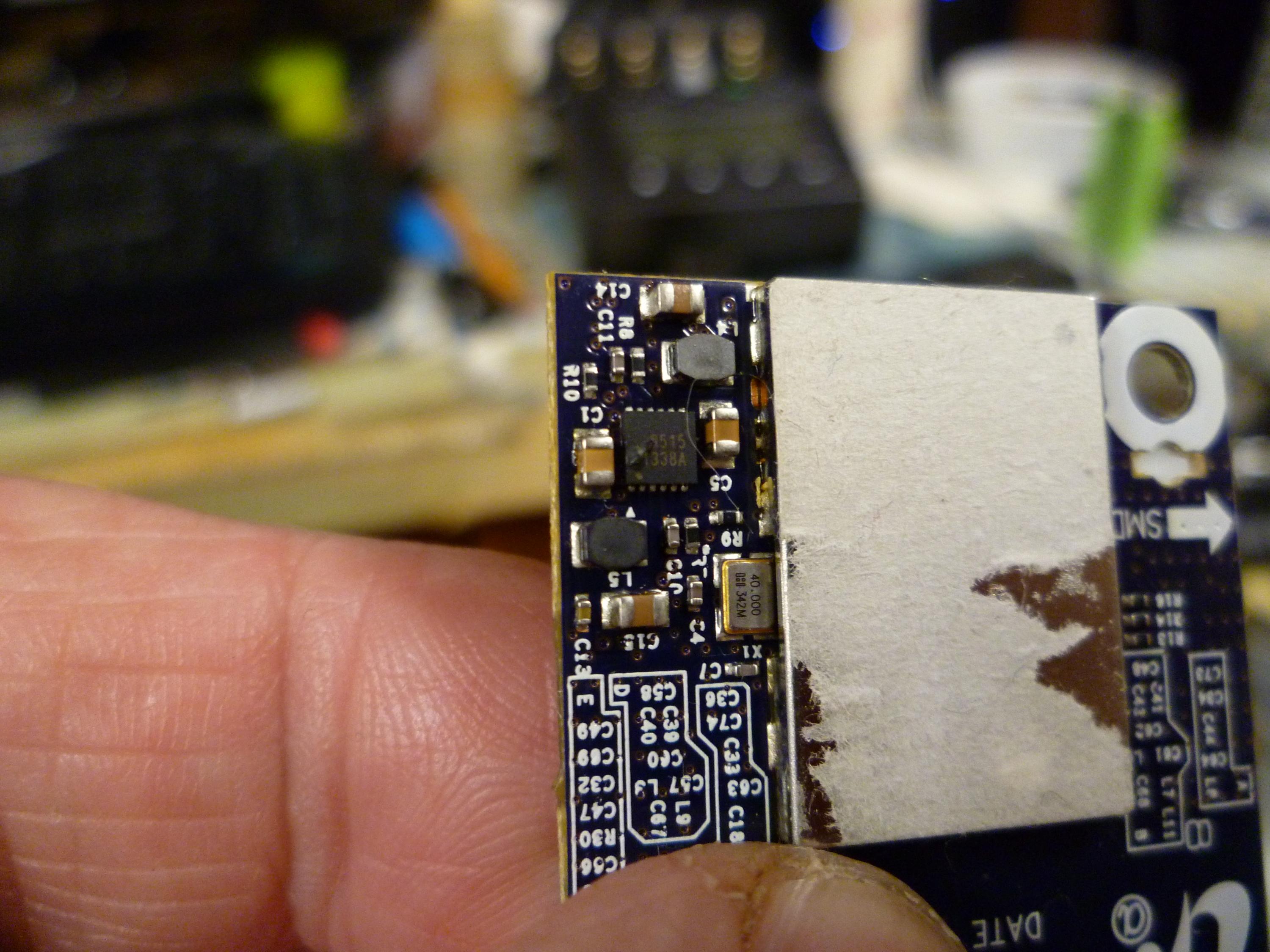

    Any help would be appreciated. Photos of the chip attached. Thank you masters!
    Attached Files

    if you find these attachements useful please consider making a small donation to the site

    Last edited by SMDFlea; 10-02-2021, 02:12 PM. Reason: BN96-01148X
    Tags: None
    • lotas
      Badcaps Legend
      • Jan 2016
      • 4841
      • Russia
      #2
      Re: Need help identifying chip on TV wifi card

      AX3515J12A

      https://aliexpress.ru/item/100500182...16846fa604b3be

        Comment

        • peterzilla
          Member
          • Sep 2021
          • 12
          • Sweden
          #3
          Re: Need help identifying chip on TV wifi card

          Here you can order online https://www.digipart.com/part/AX3515J12A
          Badcaps.net Technical Forums © 1993 - 2021
          Powered by vBulletin ®
          Copyright ©1990 - 2021, Jelsoft Enterprises Ltd.

            Comment

            • rddube
              Aspiring Expert
              • Jun 2013
              • 955
              • Canada
              #4
              Re: Need help identifying chip on TV wifi card

              Thank you very much for your help!!
