    mobo (hk-t.sp9202p63)

    Hello friends,
    I want the schematic for hk-t.sp9202p63. The "u1" is burned and I cannot recognize what is it.
    Thank you in advance.
    Tags: None
    • Alastair E
      Chief Womble
      • Mar 2013
      • 1963
      • U.K.
      #2
      Re: mobo (hk-t.sp9202p63)

      Make, Model of set, Plus pictures of boards inside needed....

      Probably some cheap Chinese crap thing with that type number--only way is for pictures to recognise it....
      TELEFIX

      How PLASMA SCREENS WORK, X-SUS and Y-SUS what they do--
      http://www.irf.com/technical-info/appnotes/an-1088.pdf
      PLEASE DO NOT EMAIL ME PRIVATELY FOR REPAIR ADVICE. QUESTIONS BELONG ON THE FORUM!

        Comment

        • quic307
          Badcaps Veteran
          • Jun 2015
          • 255
          • Greece
          #3
          Re: mobo (hk-t.sp9202p63)

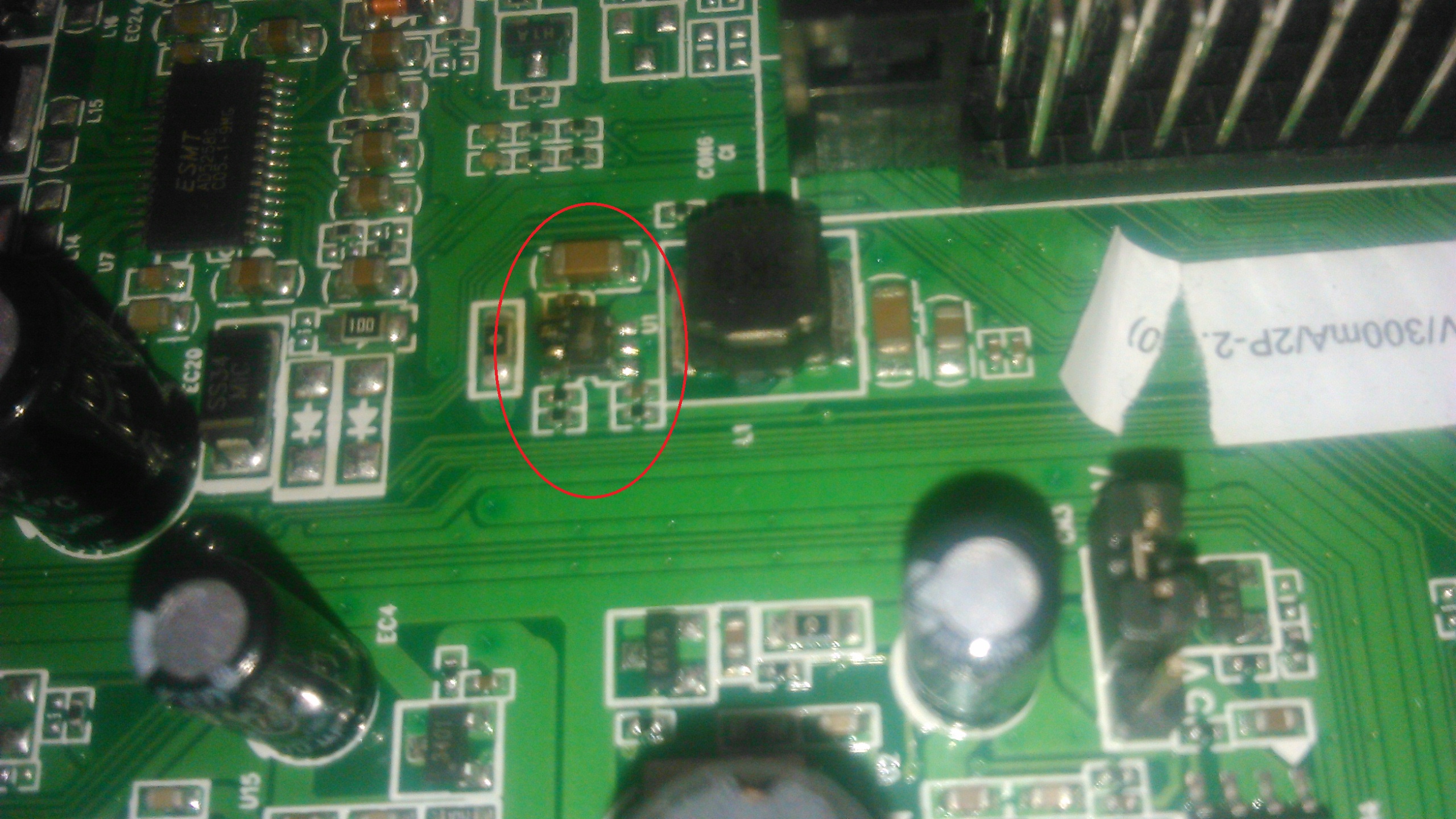

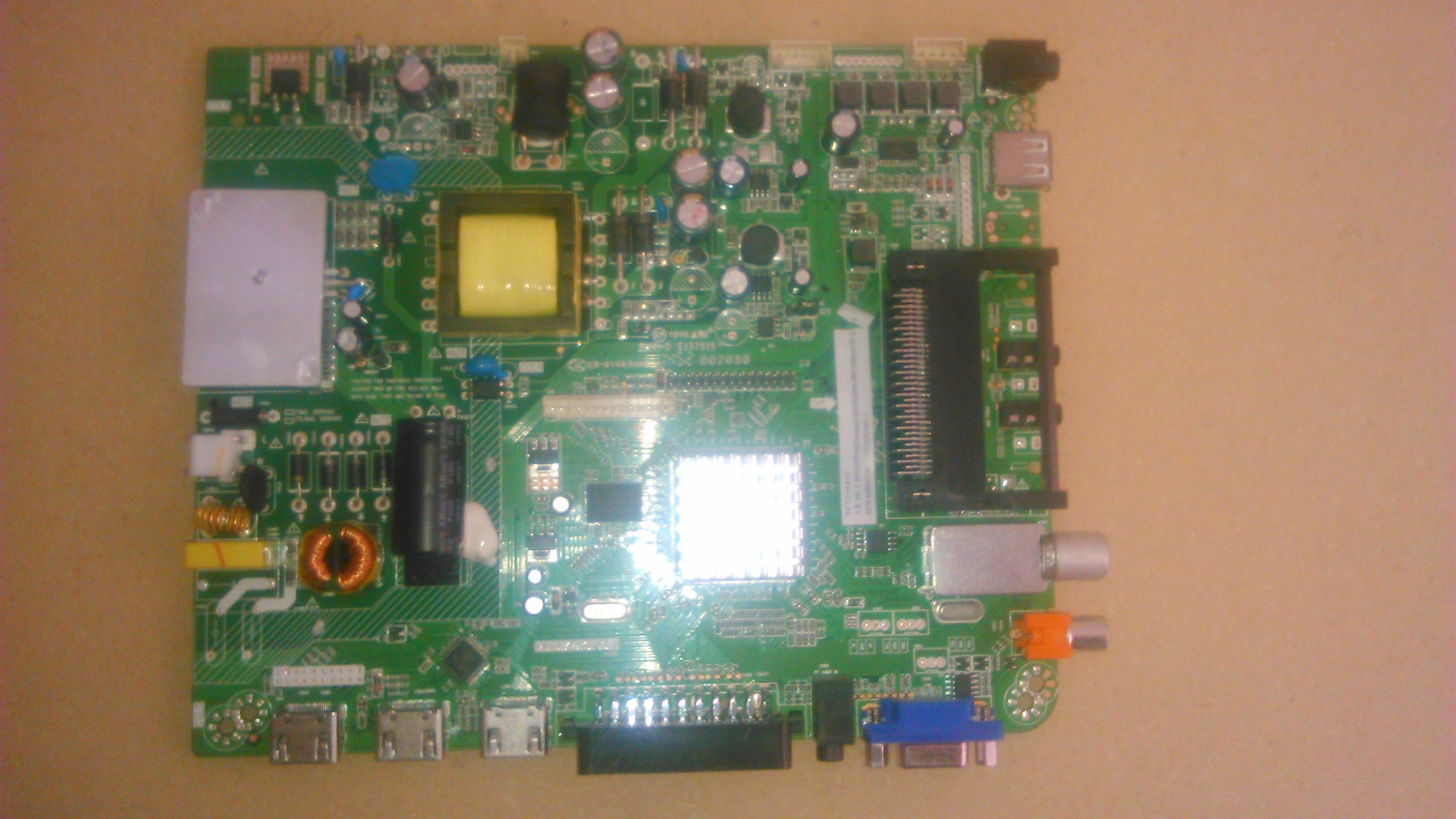

          I attached 2 photos ... the u1 is burned.

          Thanks.
          Attached Files
