How to check PFC IC UCC 28063 for possible short

Collapse
X
Collapse

  • Page of 1
  • Time
  • Show
Clear All
new posts
Previous template Next
  • repair-it
    Senior Member
    • Nov 2020
    • 104
    • US
    #1

    How to check PFC IC UCC 28063 for possible short

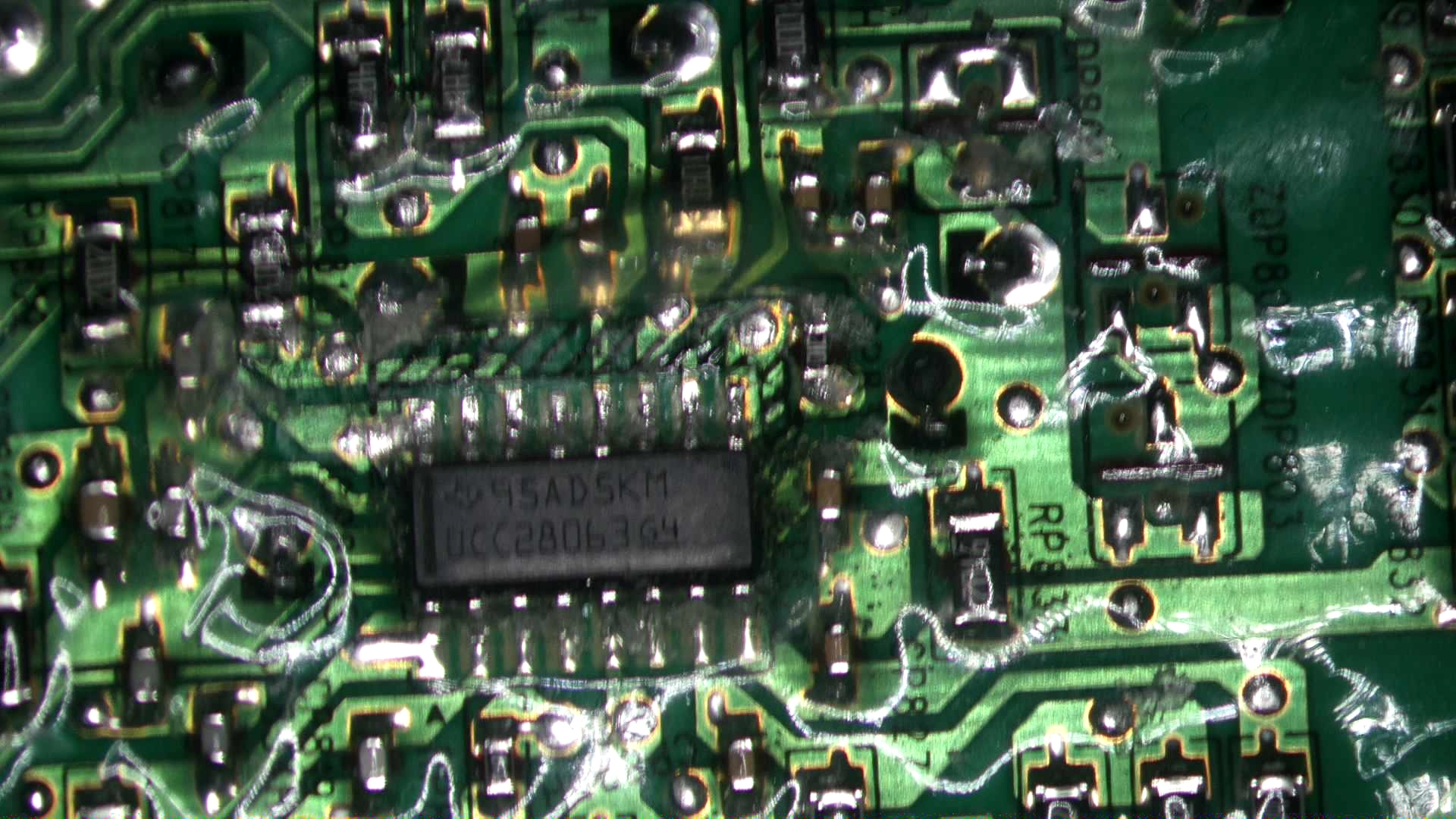

    Need help. Samsung 75" TV has an issue with the power supply board. I found a shorted mosfet & blown fuse. I replaced both but the mosfet blew up. I suspect that the PFC driver IC is bad but not sure how to go about checking it with a MM.
