    panel swap. Sony 52 to samsung

    Thought I would just share this. I just got done with a panel swap from one of my part sets. Samsung ln52a550p3fxza had the bad tab Bond burned through the plastic bezel if you remember seeing my previous post.

    https://www.badcaps.net/forum/showthread.php?t=33917

    Well I just had a friend gave me a half parted out Sony KDL-52XBR3 and it had hey good panel of course the tab bonds and the tcon were completely different.
    I had to do a bit of grinding to clear one of the tab bonds from the metal frame on the black housing, as the screw if inserted for the metal frame will hit the tab bond, but I swapped the XBR's panel into the Samsung with the XBR's tcon and it works excellent!

    I would have just used the XBR's housing but the screw mounts and exerything about it just wont fit the Samsung..

    Note: the XBR was from 2006 and is 1080p with 120hz. The Samsung is July 2008, and is also 1080p with 120hz. The LVDS matched up and I decided to bite my lip and just try it. And amazingly works excellent...

    Now I just need a back cover and a base shand mount for the Samsung sadly I think I disposed of them..
    Last edited by freakaftr8; 01-12-2014, 05:40 PM.
    Did I leave the soldering iron on?
    Tags: None
    • freakaftr8
      Badcaps Legend
      • Oct 2012
      • 3743
      • USA
      #2
      Re: panel swap. Sony 52 to samsung

      Am I to assume after trying this that there are a varity of panels as long as same manufacturer and same frequency and resolution, and of course if the LVDS cable matches, there is a success rate?

      I created "another" Frankenstein.. LOL
      Did I leave the soldering iron on?

        Comment

        • tom66
          EVs Rule
          • Apr 2011
          • 32560
          • UK
          #3
          Re: panel swap. Sony 52 to samsung

          Only if they also have compatible format type, if you get datasheet you can check.
          Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
          For service manual, schematic, boardview (board view), datasheet, cad - use our search.

            Comment

            • freakaftr8
              Badcaps Legend
              • Oct 2012
              • 3743
              • USA
              #4
              Re: panel swap. Sony 52 to samsung

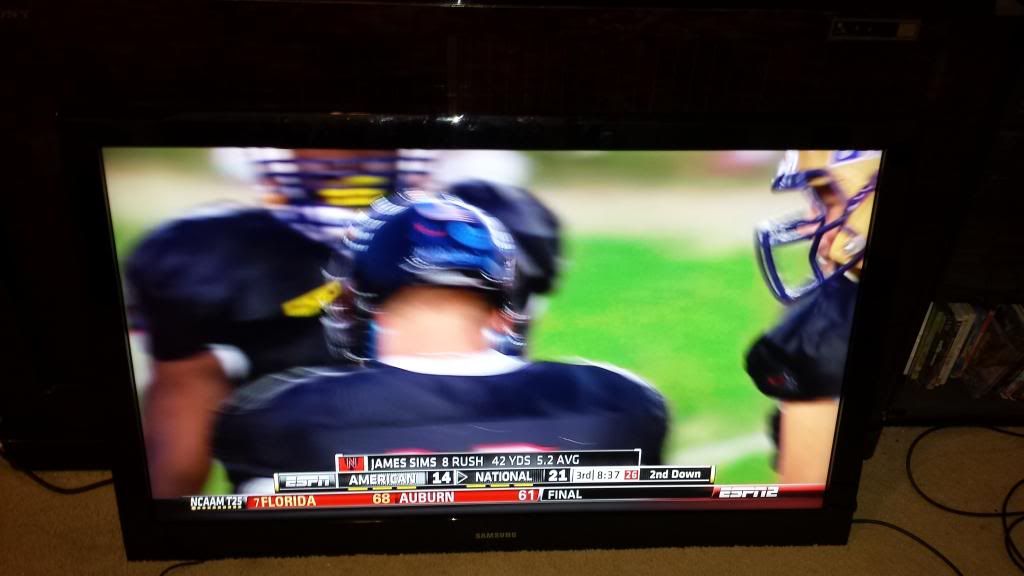

              Just got.another ln52a550 repaired. And put it up against the ln52a550 with the xbr screen. The xbr panel in this tv looks way better than the standard panel that they put in this TV. Everything is crisp and better clarity and almost looks like the pixels are closer together. Of course I had to use exp XBR tcon board along with the panel swap. Is it possible that this panel is a better build than the standard Samsung panel?
              http://i845.photobucket.com/albums/a...ps99ddd748.jpg
              Last edited by freakaftr8; 01-18-2014, 07:18 PM.
              Did I leave the soldering iron on?

                Comment

                • tom66
                  EVs Rule
                  • Apr 2011
                  • 32560
                  • UK
                  #5
                  Re: panel swap. Sony 52 to samsung

                  XBR S-LCD panels (were) are made by Samsung and Sony partnership so are semi custom for Sony, perhaps that is why. Could be different panel tech like IPS vs VA panel.
                  Please do not PM me with questions! Questions via PM will not be answered. Post on the forums instead!
                  For service manual, schematic, boardview (board view), datasheet, cad - use our search.

                    Comment

                    • aar5384
                      Senior Member
                      • Jan 2014
                      • 82
                      • England
                      #6
                      Re: panel swap. Sony 52 to samsung

                      Originally posted by freakaftr8
                      Just got.another ln52a550 repaired. And put it up against the ln52a550 with the xbr screen. The xbr panel in this tv looks way better than the standard panel that they put in this TV. Everything is crisp and better clarity and almost looks like the pixels are closer together. Of course I had to use exp XBR tcon board along with the panel swap. Is it possible that this panel is a better build than the standard Samsung panel?
                      http://i845.photobucket.com/albums/a...ps99ddd748.jpg
                      Sounds pretty damn good! well done!

                        Comment

                        • freakaftr8
                          Badcaps Legend
                          • Oct 2012
                          • 3743
                          • USA
                          #7
                          Re: panel swap. Sony 52 to samsung

                          Got it. Thanx
                          Did I leave the soldering iron on?

                            Comment

                            • splitcrete
                              Badcaps Veteran
                              • Dec 2012
                              • 387
                              • usa
                              #8
                              Re: panel swap. Sony 52 to samsung

                              You made the worlds first Sonysung... LOL Good job

                                Comment

                                • freakaftr8
                                  Badcaps Legend
                                  • Oct 2012
                                  • 3743
                                  • USA
                                  #9
                                  Re: panel swap. Sony 52 to samsung

                                  Very true. I think. Lol.
                                  Now onto a swap in for.a.42 inch LG Phillips panel I have laying around. And it's too bad no other manufacturers use the 60 inch sharp quattron panel. I have one of those as well. Gutted lc-60le810un.
