    Samsung LE37M87BD av board replacement

    Hi

    My uncle recently purchased a replacement av board for his Samsung LE37M87BD, which had a couple of burnt out smb components. The problem is that the original is a BN41-00813B-MP1.0 and the replacement is a BN41-00813E-MP1.0. On the site he bought it from it says that it is compatible with his model.

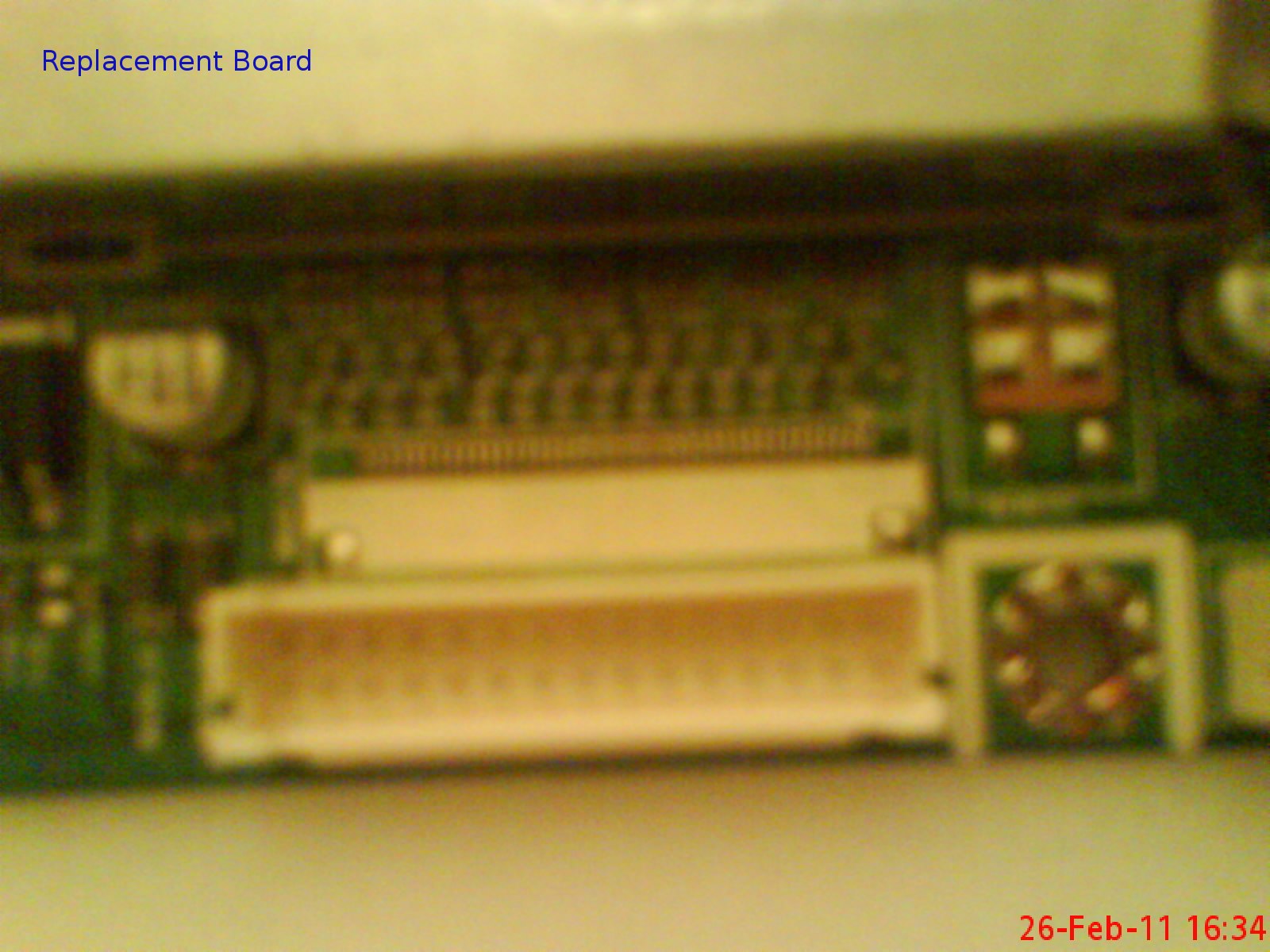

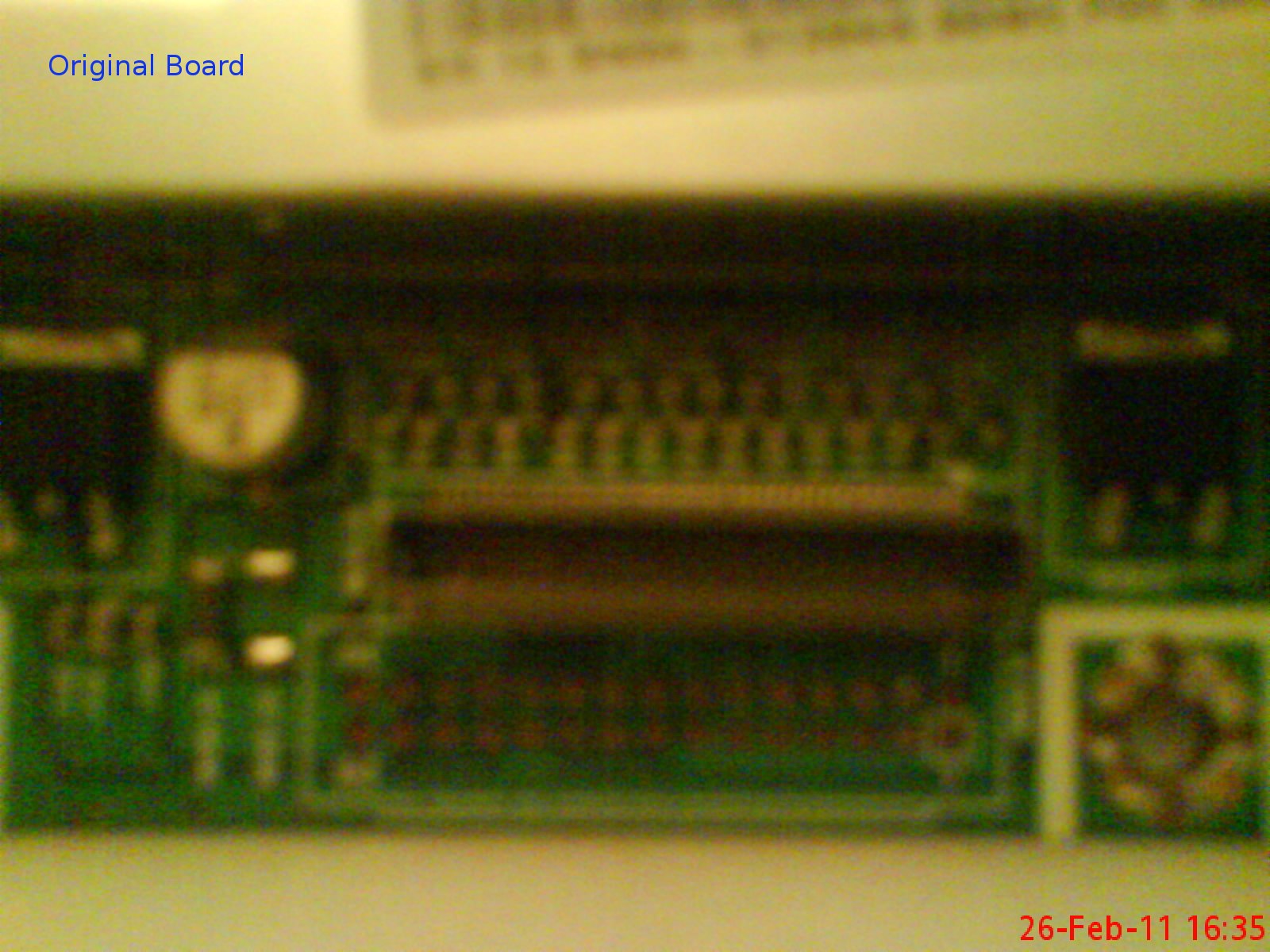

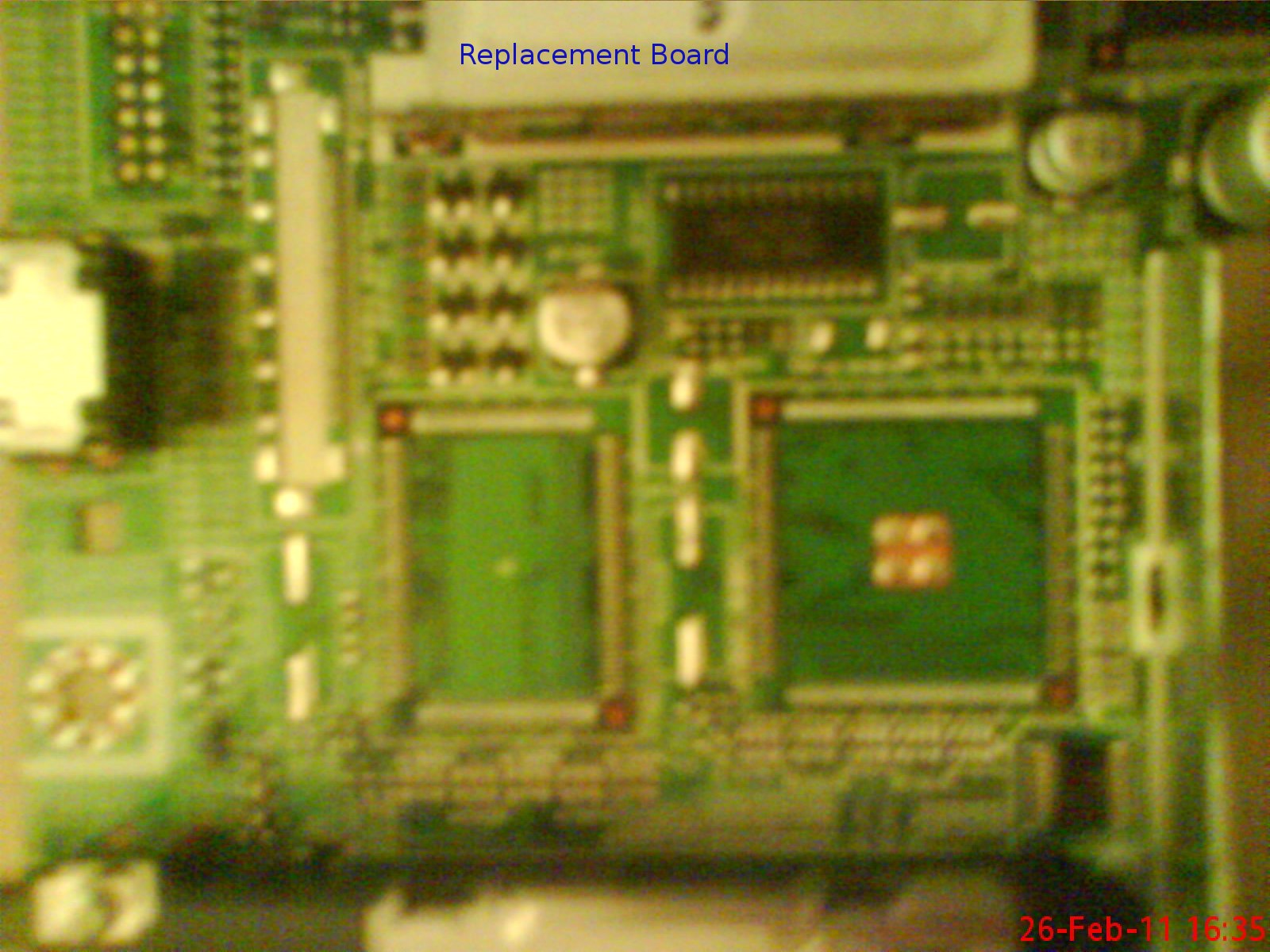

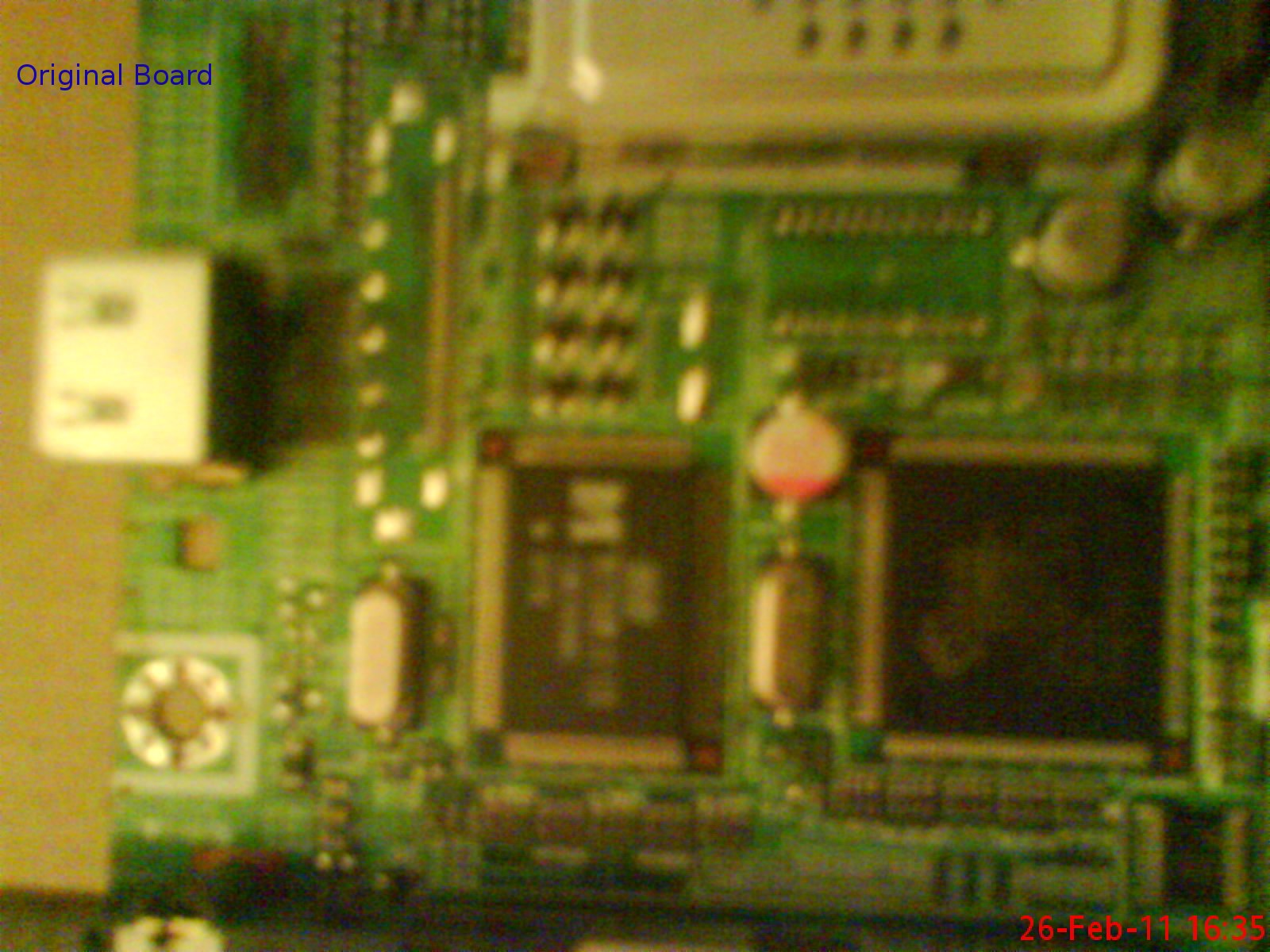

    It has a few differences including a few 'missing' chips and other smb components, and the connector for the panel_vcc(i think) is different. The two types of connector can be fitted to both boards and the tracks seem to connect to where both would go. The original has the CN2203_FHD and the replacement has the CN2202_HD. Sorry I haven't got a circuit diagram to help with this.

    I would like to know if it's just a case of swapping connectors on either the board or cable (if a suitable replacement cable can't be found) or if this board will just not work in this tv. I just hope someone on here has some experience with this kind of thing.

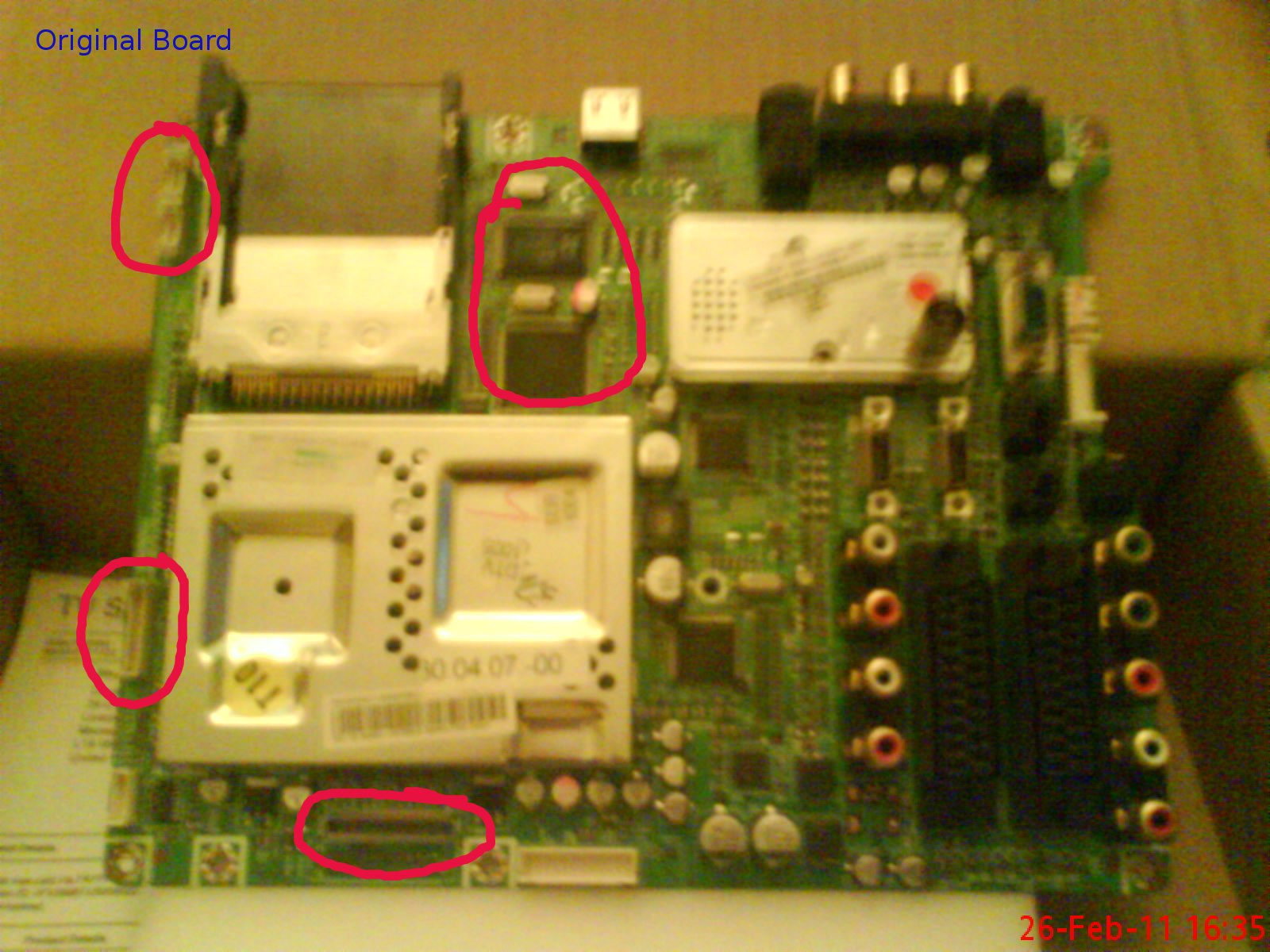

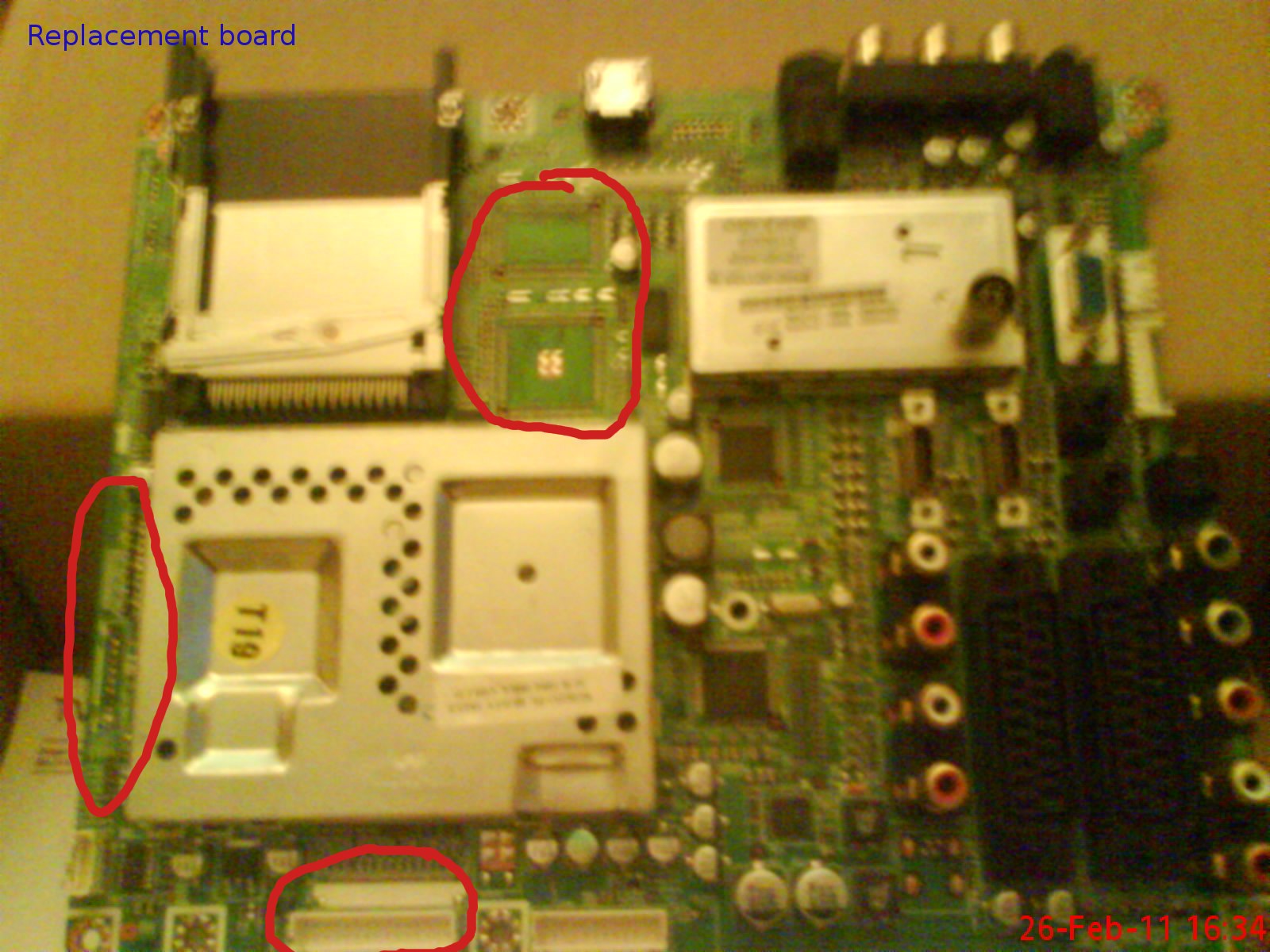

    Pictures are attached, sorry for my crappy photography and the pics were taken on my phone as I have no batteries for my camera. Let me know if i should take some better ones.

    Thanks in advance, any help will be gratefully received.
