    Help with Parts Identification TV Board: JUC7.820.00208835

    Hi,

    Any kind sould with a JUC7.820.00208835 TV board on hand that could help me
    identify the values of some components, these are in the feedback section near the optocoupler, i need to know the value of:

    Resistors: RP28, RP27, RP25
    IC: UP2

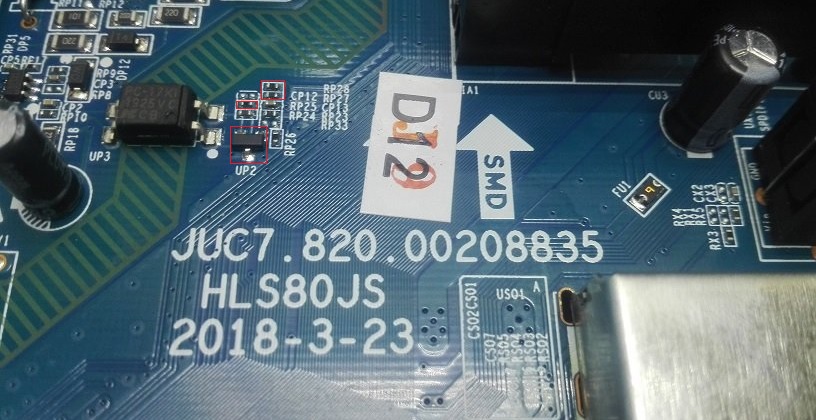

    I attached a picture for easier finding of the components in question.

    Thx in advance.
    Attached Files
    Tags: None
    • lotas
      Badcaps Legend
      • Jan 2016
      • 4753
      • Russia
      #2
      Re: Help with Parts Identification TV Board: JUC7.820.00208835

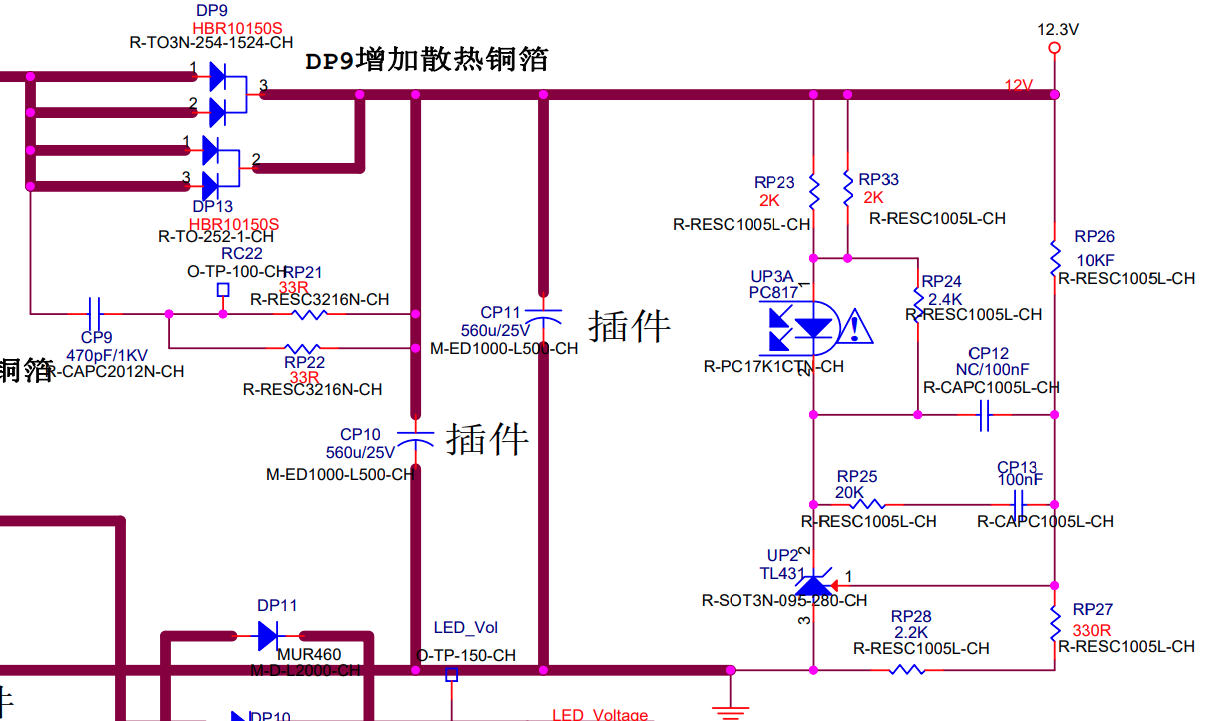

      Juc7.820.0020883
      Attached Files

        Comment

        • VHSFI
          Member
          • Mar 2011
          • 47
          • Portugal
          #3
          Re: Help with Parts Identification TV Board: JUC7.820.00208835

          Thx a lot for the help.

            Comment

            • João Ramos
              New Member
              • Oct 2024
              • 1
              • A
              #4
              Hello, I need help with this board. Capacitors near R842 are gone. Does someone have schematics for this? Thanks a lot.
