    Online UPS input 220VAC high cut - low cut filter PCB troubleshoot.

    Hi,

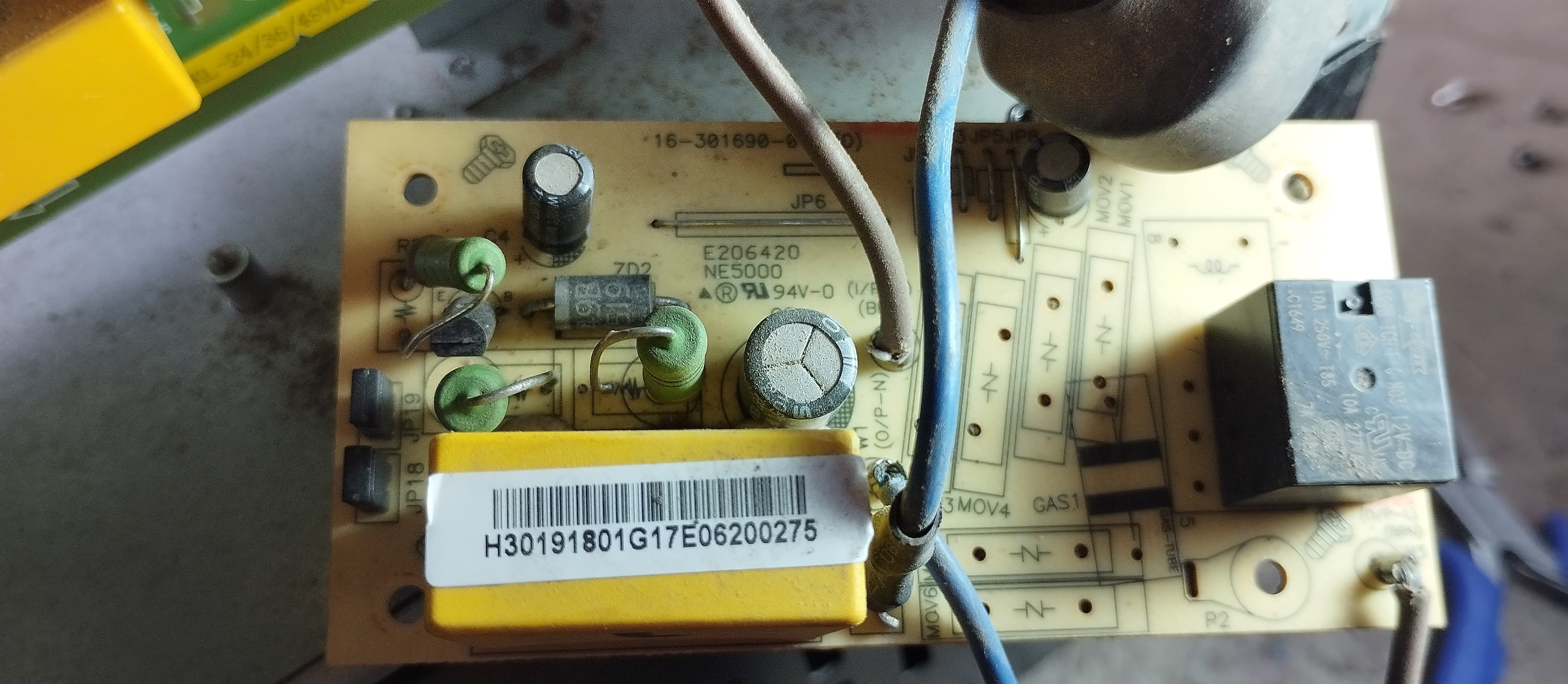

    This online UPS is not detecting Mains 220V AC input, by observation I found a SMD Capacitor (C6 which responsible to operate the relay next to R27) is burnt in 220VAC high cut - low cut filtering PCB.
    Please share me a suitable capacitor value for this circuit.


    Click image for larger version Name: WhatsApp Image 2024-07-16 at 9.04.36 PM.jpg Views: 342 Size: 753.3 KB ID: 3312515Thanks
