    Plasma PSU Need help understanding

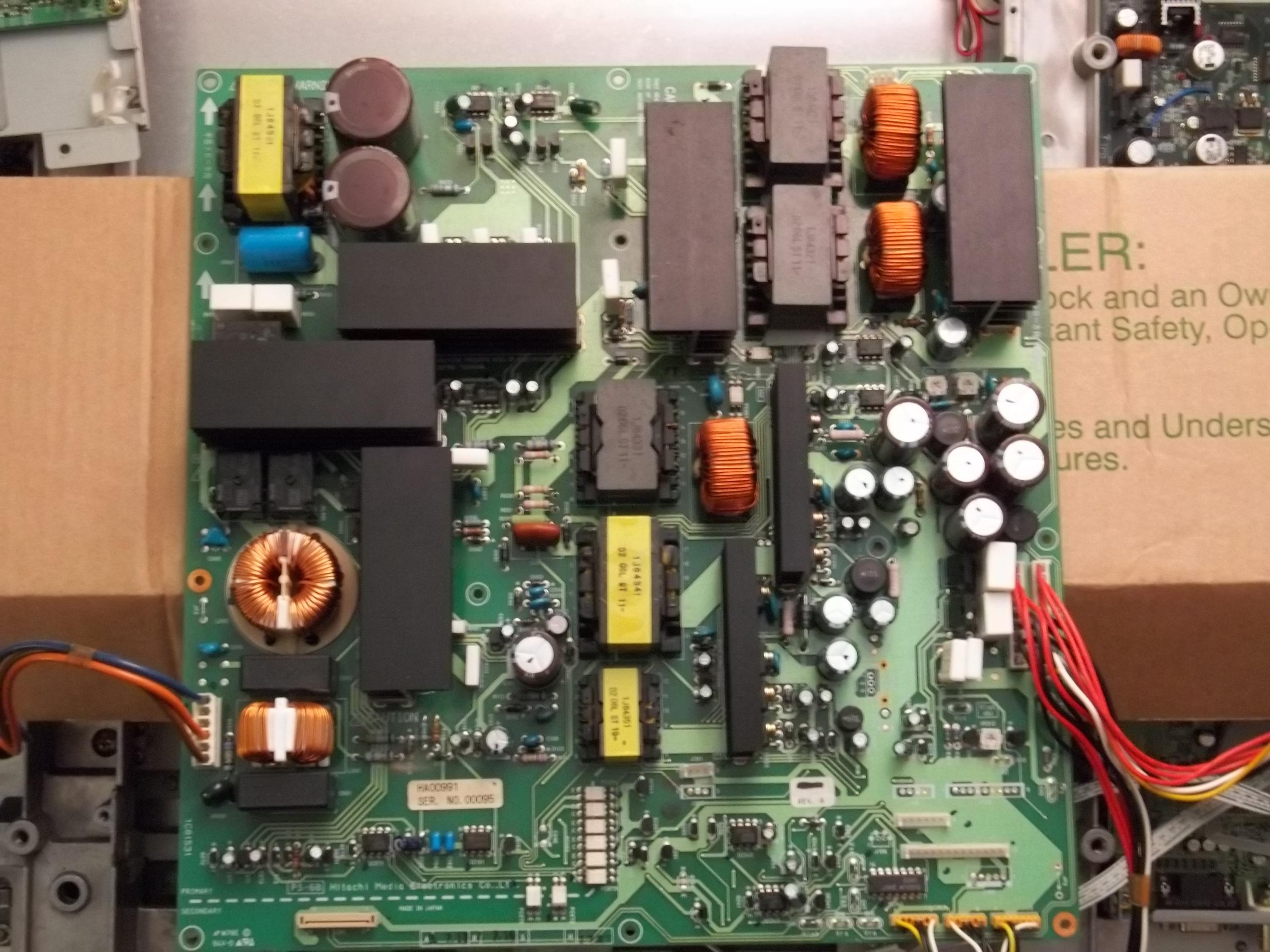

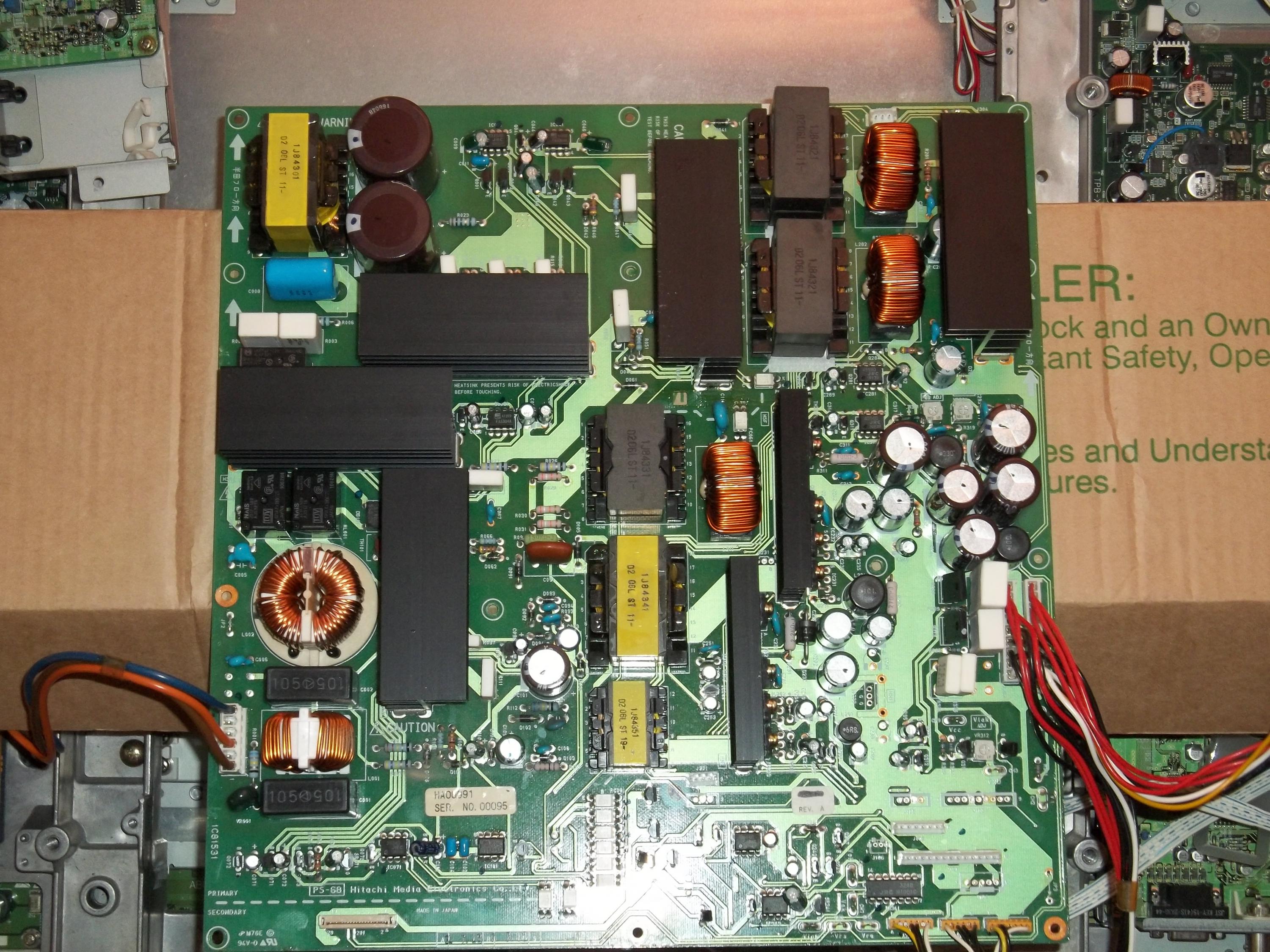

    I have been working on TV's for a little over a year. Mostly LCD'S, so when I figit with this plasma I feel as though it's my first day looking at a TV. Everything is very complex here. This is off a Hitachi, part number 1C81531.

    The problem is the tv would power on and then back off with a continuous flashing green light.

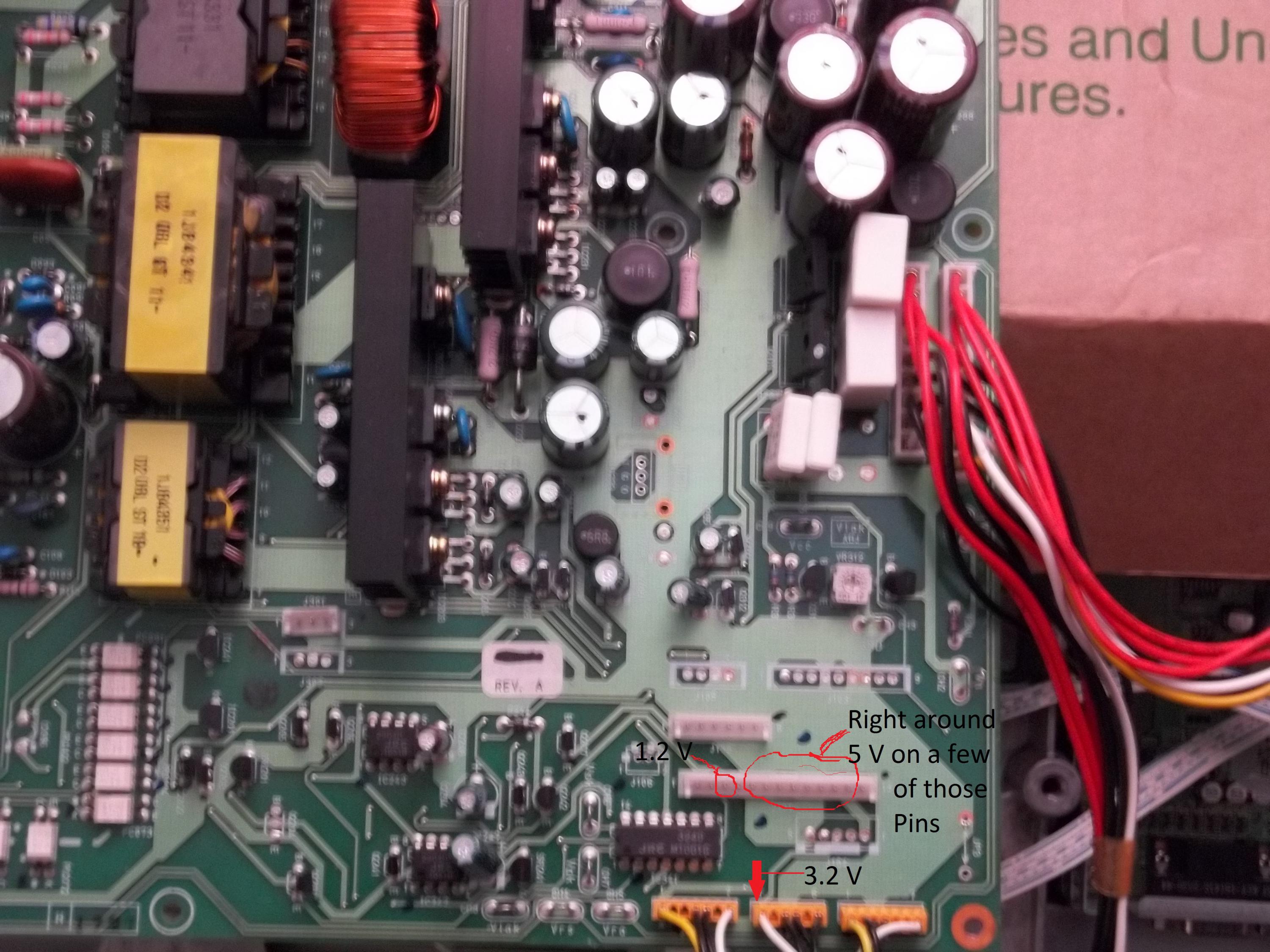

    I need to know 1. where to look for the voltages and what voltages to expect. I also want to jump the psu to see if it functions on its own but I'm not sure 2. which wires to jump together. I will try to show the voltages I read so far.

    Thank you.
