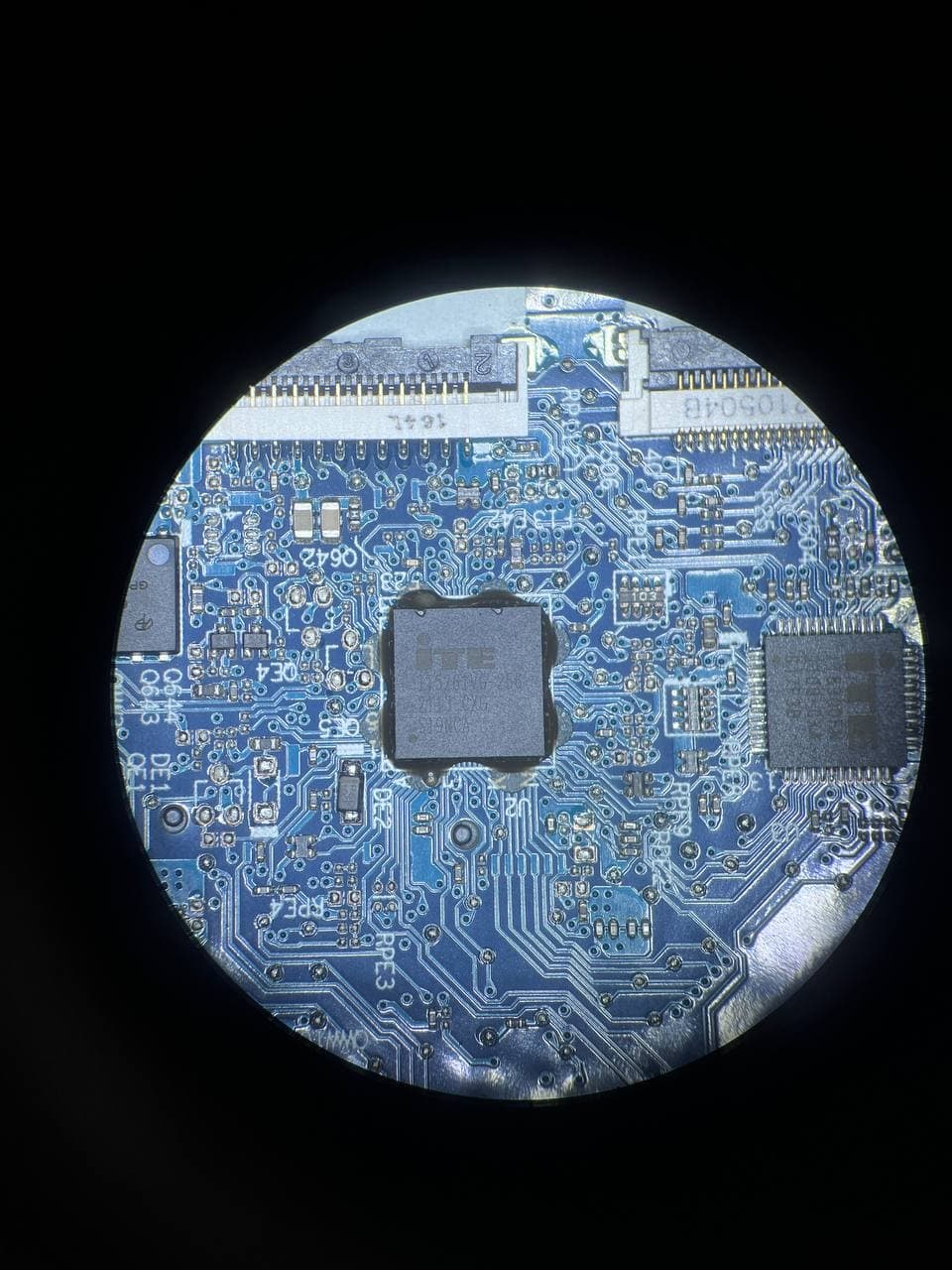

I need the schematic, or boardview Lenovo T14 AMD board NM-C801 or JTAG pinout for reading kbc ITE for RT809H
Attached Files
-
Lenovo 3000 Series Schematic
Lenovo 3000 was a line of low-priced notebook and desktop computers designed by Lenovo Group targeting small businesses and individuals. It was replaced with the IdeaCentre and IdeaPad brands.
3000 C100 laptop with Braille keyboard
Lenovo 3000 C
C100, C200 - 15-inch XGA screen
Lenovo 3000 N
N100, N200 - 14.1-inch- and 15.4-inch- WXGA models
N500 - 15.4 inch screen.
Lenovo 3000 V
V100, V200 - 12.1-inch WXGA models
Lenovo 3000 G
G400, G410, G430, G450, G455, G510, G530, G550, and G560...10-04-2024, 06:05 AM -
For Badcaps Readers, Please note that I am hopefully going to present this same message to Lenovo to see if they have any insight to the matter as well and figured to share the entirety here for clarification. The System is out of warranty as it is but does have the option to have it extended.
Model Information: T14 Gen 2 (Type 20XK, 20XL) Laptop (ThinkPad) - Type 20XK - Model 20XK0069US
Board: T14 Gen 2 (Type 20XK, 20XL) - Type 20XK.
System Hardware:
Processor: AMD Ryzen 7 PRO 5850U
Memory: 1x 16GB DDR4 3200 (Soldered on Board); 1x Crucial 32GB DDR4...09-08-2025, 10:46 PM -
Hello everyone,
OK, so here is my issue.
This Lenovo B470 motherboard I am troubleshooting died and I identified it is the discrete Nvidia graphics chip that has lost it's ways!
So I removed it and now I am trying to change this motherboard to use UMA graphics, but I am having an issue interpreting the attached diagram. I have a 10K resistor in at the R2013 position and another one at the R2012. R2010 and R2011 are empty.
The motherboard starts, the fan spins but no display. It turns off by itself. I restart it and it does start but stays on...08-12-2024, 02:01 PM -
If someone will share schematic and boardview for motherboard described below i will be very grateful.
I need to switch graphics from SWG into UMA.
The laptop model is:
LENOVO LEGION 5 15ARH05H
the motherboard model is :
NM-D281 REV. 1.0
2020-06-11
Thank You very much in advance -
Hi everyone.
I need schematic or boarview mainboar colorful CF-B365M-HD V21
please share with me. thanks:
Error description : Can not turn on power. But when forced to turn on the power ( green wire to ground ). Can turn on power and use ok.
So, I think the circuit from Sio to green wire ( atx power ) is broken.but i don't know what electronic components it goes through.
Anyone know, can you show me where that electronic component is located on the motherboard? share schematic with me please . thanks:
...04-03-2025, 09:23 PM
