Hp 250 g5 LA-D703P Schematic

[dylen]

Anyone having a schematic for HP 250 G5

[jatoi]

Re: Hp 250 g5

need schematics
la-d703p

[raileanu]

Re: Hp 250 g5

Hello. Has anyone yet found a schematic for this laptop motherboard BDL50 LA-D703P REV:1 as i need to find out what is the exact number for this IC 8A 3G B59 please.
Thanks.

[raileanu]

Re: Hp 250 g5

Finally I found it myself (but no the laptop diagram/schematic) and I can confirm 100% that 8A 3G B59 IC is RT8243A and any of this sub-models will work:
RT8243AZ RT8243A RT8243AZQ 8A=EC 8A=ED 8A=EF 8A=xx RT8243AZQW QFN20
If your chip is overheating and the 3.3V and 5V coils are not in short circuit then check the output pins 15 and 14 (LDO3/LDO5) respectively 3.3V and 5V ALWAYS ON. Most common problem will be the KB9022Q D Embedded Controller that is in short circuit due to faulty (broken plastic) DC Socket/Power Socket that short the middle info pin to the positive +19V.
The link of the Stand-By Voltage IC RT8243A is here

https://www.badcaps.net/download/?id=576dc79c

[mferna14]

Re: Hp 250 g5

Thanks for informing this Chipset to all us. All works well but the WiFi is not sensing at all. I updated the WiFi latest drives, updated the BIOS & even reloaded Windows 10 again. Still the same. I think something is wrong with the PCIe slot on the man motherboard. Does anyone know what chipset is controlling this WiFi. Anyway help would be appreciated. Thanks

[gsrubel]

Re: Hp 250 g5

need schematic plz

[zvasile]

Re: Hp 250 g5

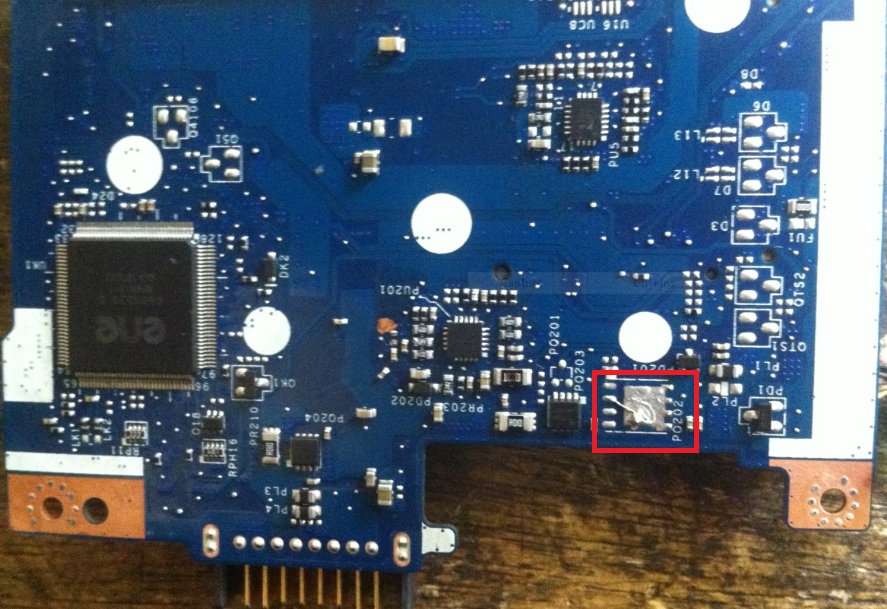

hello everyone, does anyone say what mosfet was there?
I found a wire in place,
Mb.BDL50 LA - D703P Rev;3.0
thank you in advance

[eniac22]

Re: Hp 250 g5

hello everyone, does anyone say what mosfet was there?
I found a wire in place,
mb.bdl50 la - d703p rev;3.0
thank you in advance

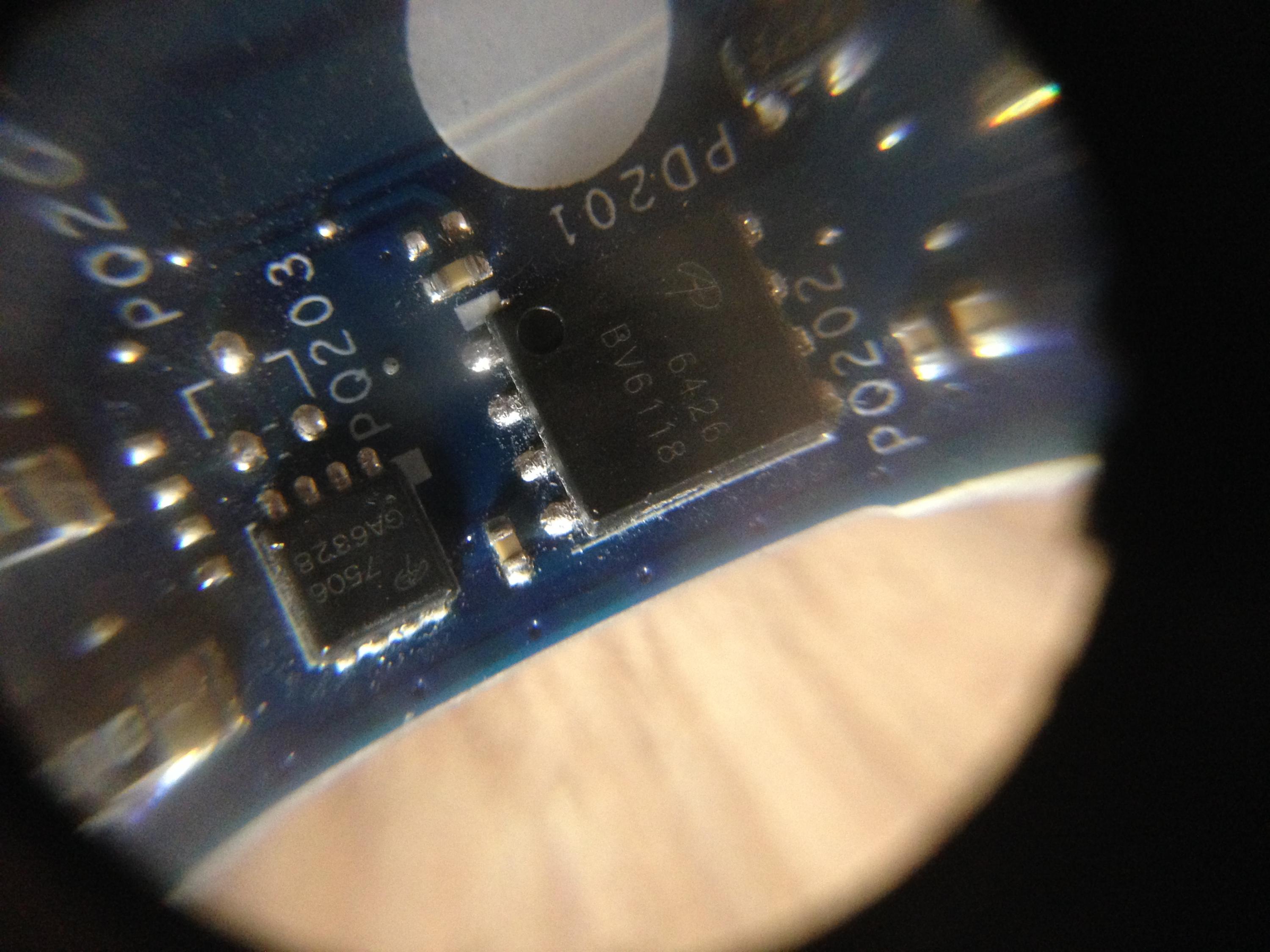

aon6426

[setcom]

Re: Hp 250 g5

Thank you so much

[sumi12345]

Re: Hp 250 g5 LA-D703P Schematic

there are 2 bios in bdl50 la-d703p i could not f on ind the on bios can anybody please help me for the location of on bios thx

[mafiaxxx]

Re: Hp 250 g5 LA-D703P Schematic

try this

[Bartoloni]

Re: Hp 250 g5 LA-D703P Schematic

on my motherboard the mosfet is a tpca 8059-h

[satheesh123]

Re: Hp 250 g5 LA-D703P Schematic

Thankd-zzzzzz

[DesireNyasha]

Re: Hp 250 g5 LA-D703P Schematic

i need a schematic for hp 250 g5 LA-D703P

[RepairCARE]

thank you so much

[rumensat]

thank you so much
