    820-01869 (iPhone SE 2020) Board View

    Hello,

    I am working on an iPhone SE 2020 motherboard. I am hoping someone is able to provide a close-up to help me better see what this section is supposed to look like. I am including my digital microscope images. I am also looking for schematics. This is a v3 board I believe, and my schematics are for a v1 board only. You see this burned out area. Are you able to provide a digital microscope image for me of this section (problem area)?

    Thank you!

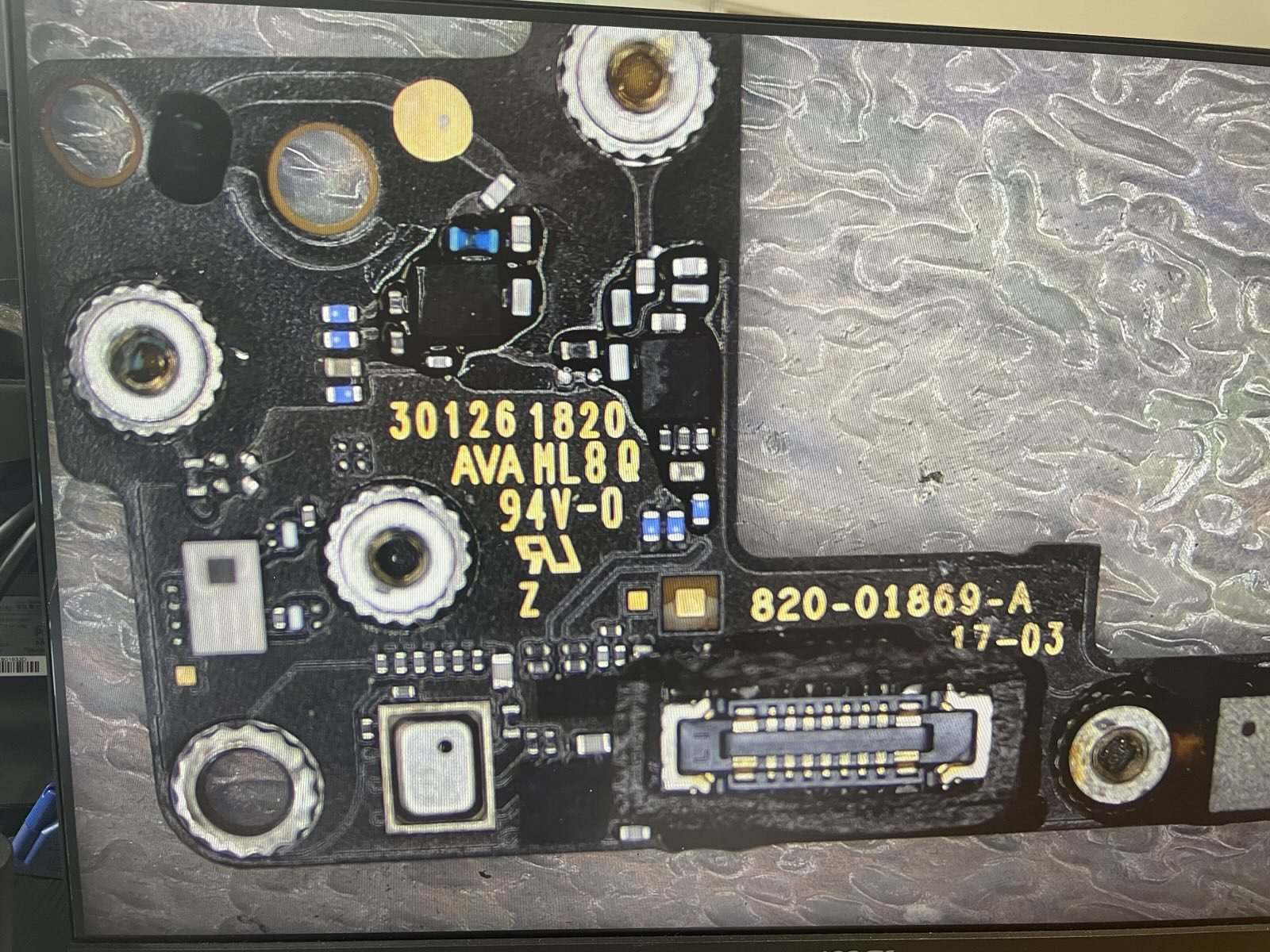

    Problem area:

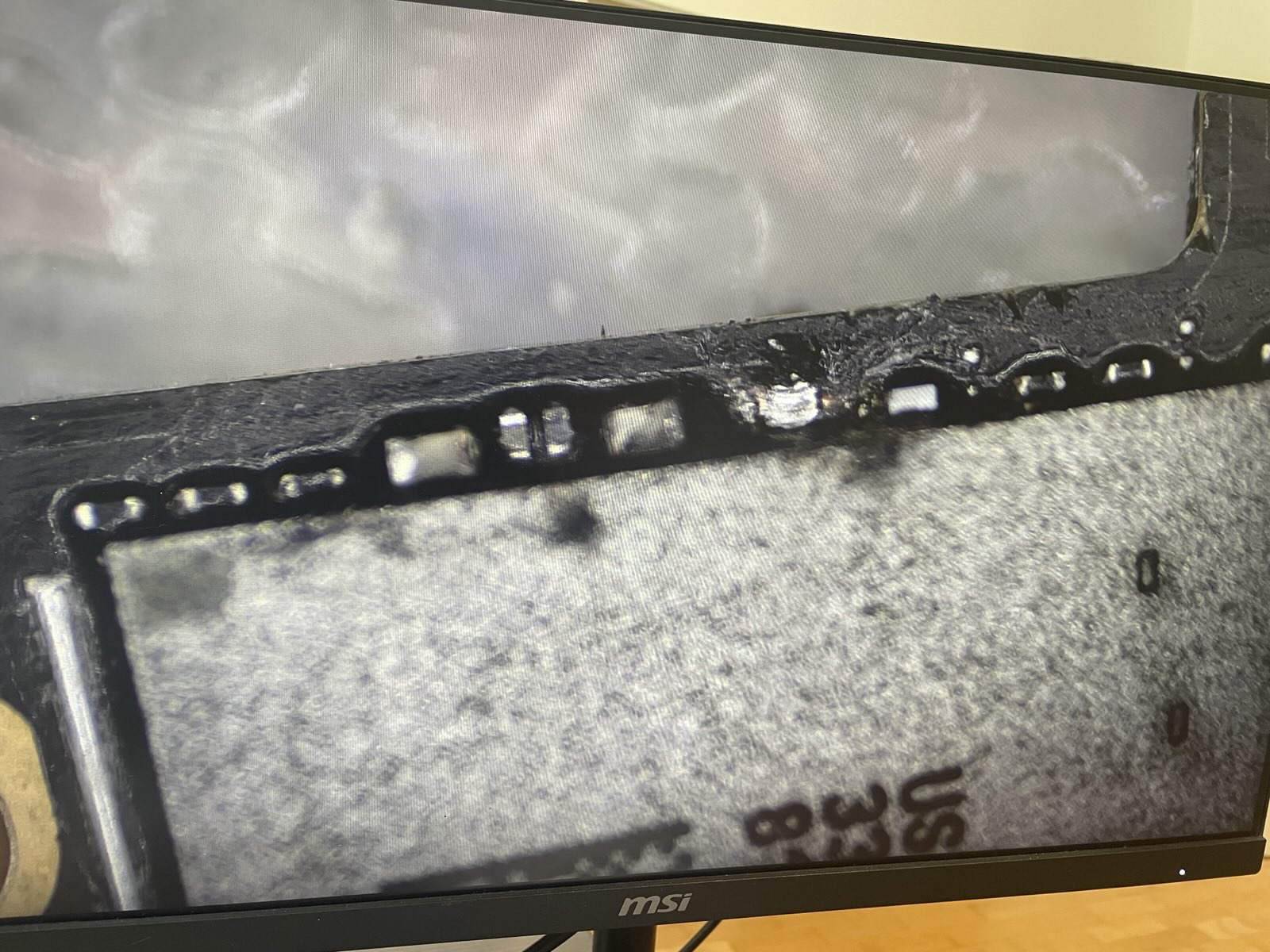

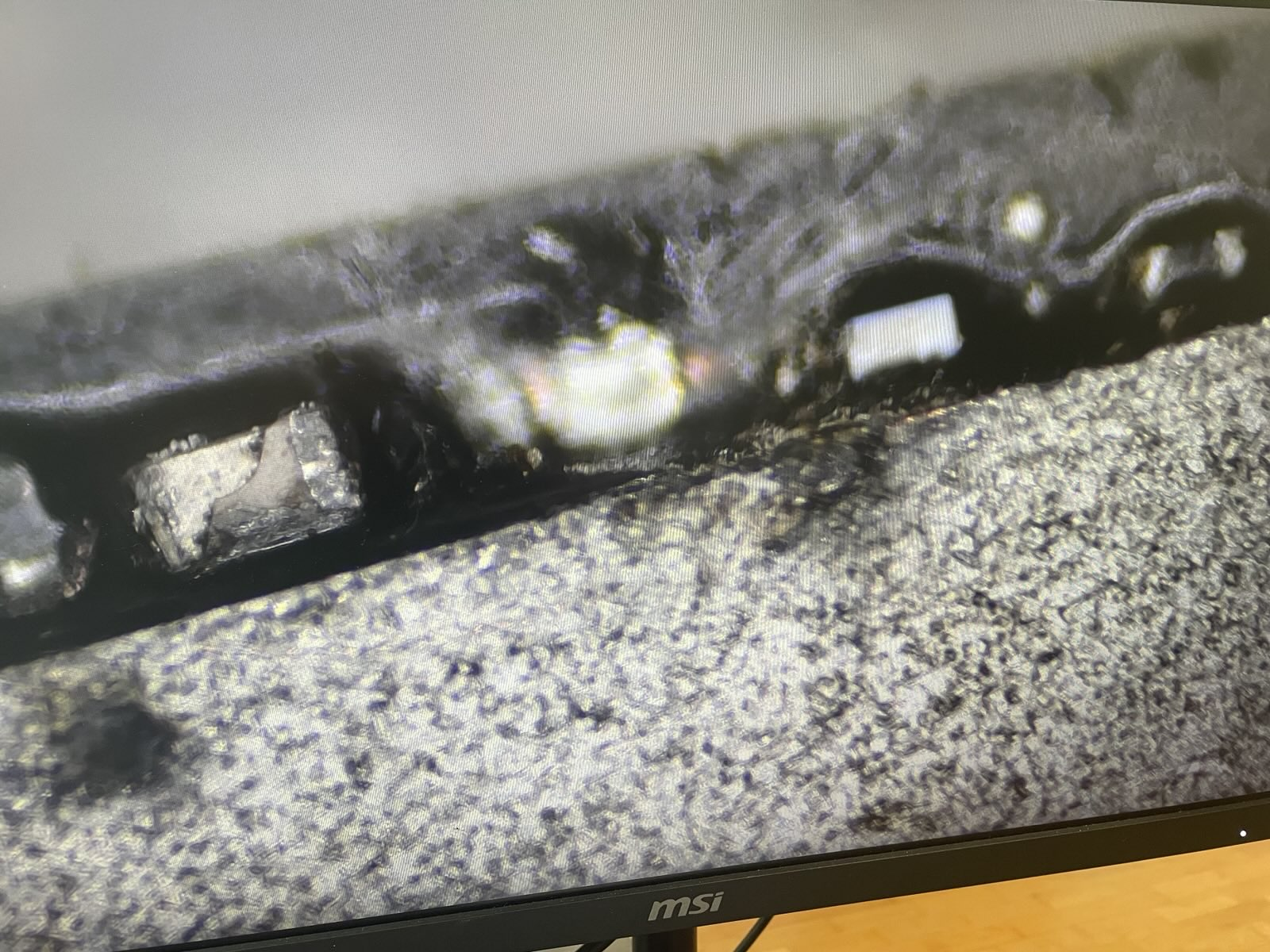

    Click image for larger version Name: image.png Views: 0 Size: 2.29 MB ID: 3665520
    Click image for larger version Name: image.png Views: 0 Size: 1.77 MB ID: 3665521
    Click image for larger version Name: image.png Views: 0 Size: 2.27 MB ID: 3665522​





    Front
    Click image for larger version Name: image.png Views: 0 Size: 2.37 MB ID: 3665519​
