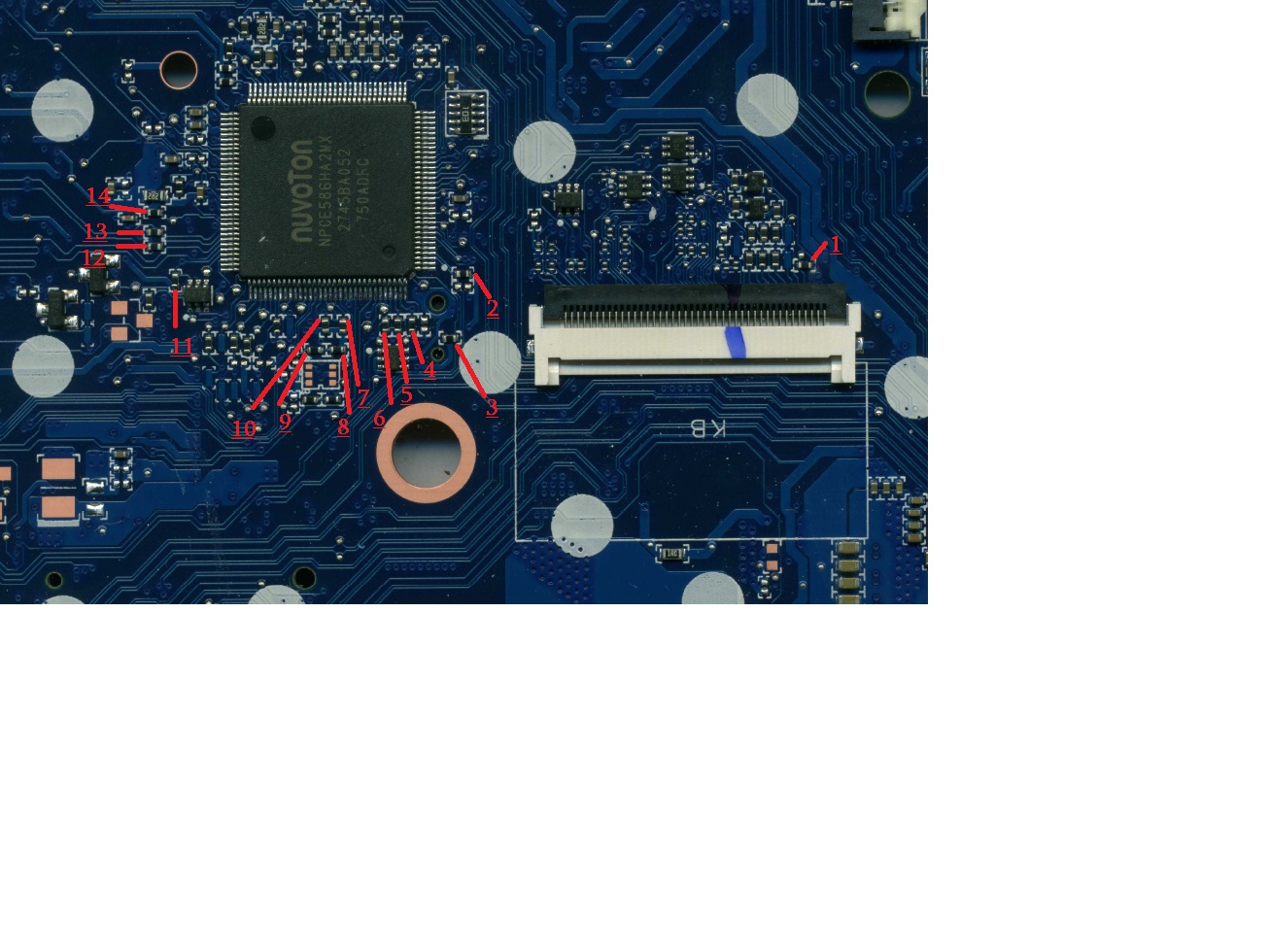

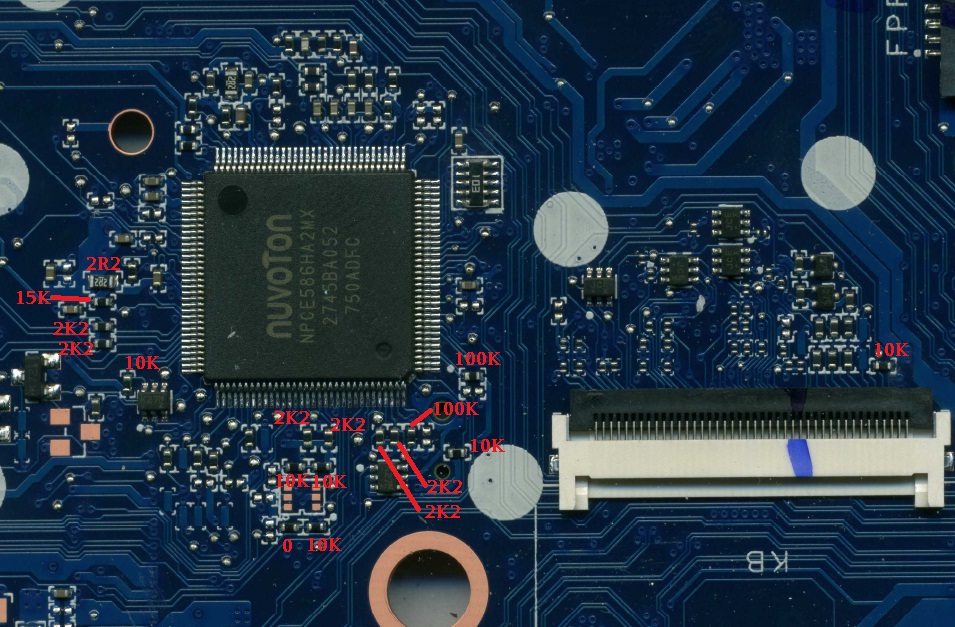

Hello for all, I have this motherboard DA0X8CMB6E0 REV:E , if anyone has a donor to measure the values of the resistors indicated in the photo, at least approximately. thanks
HP 450 G5 need rating resistors
