    X553M DC Power Jack solder problems

    Hello,

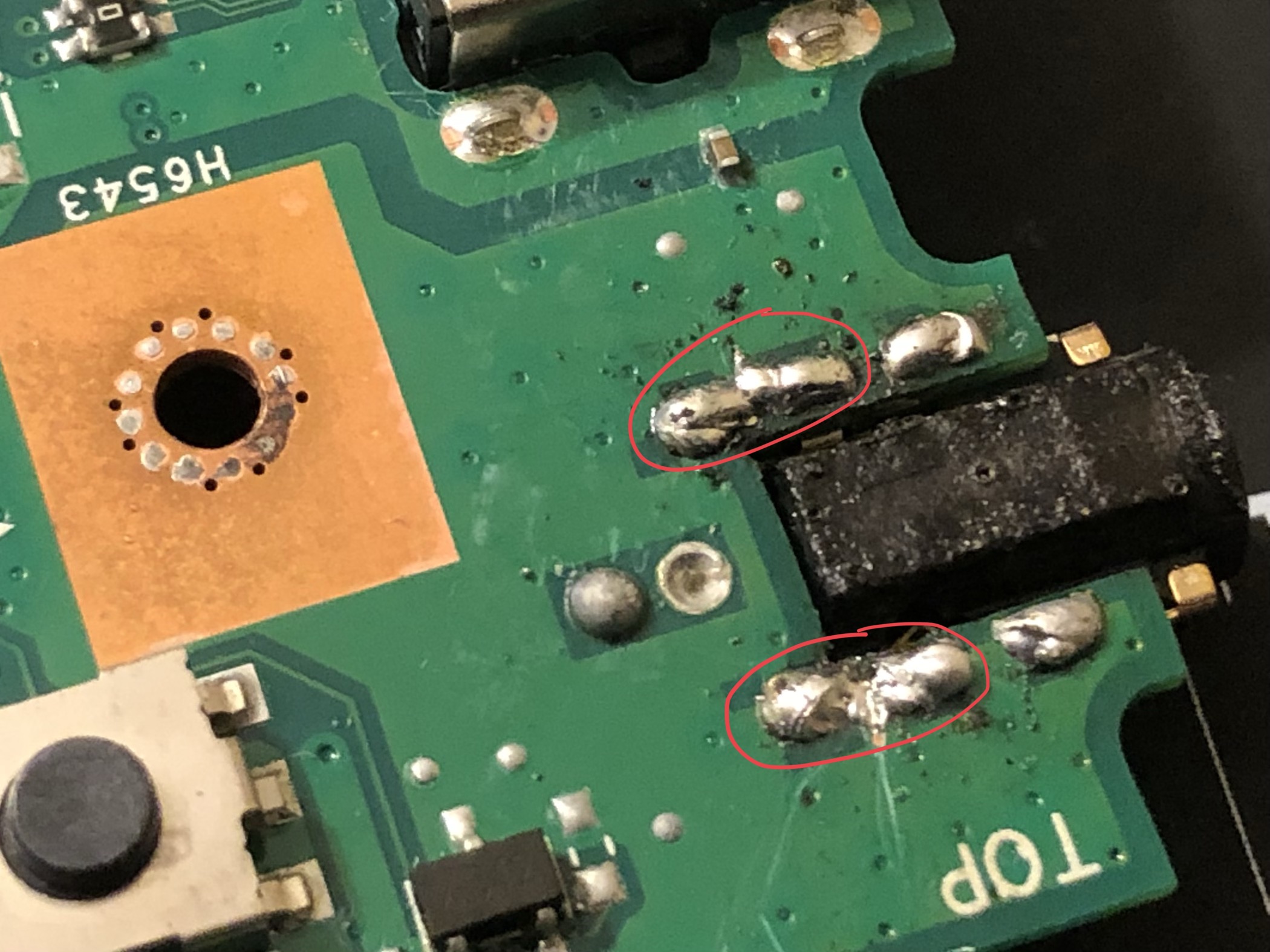

    Im replacing a Asus X553M DC power jack, but after a little trouble desoldering and soldering back I created a few solder bridges that will be pretty hard to "unbridge". I am attaching a pic to describe better. My understanding is that is all ground, but after reading a little looks like makes a difference when the plug passes the middle prong? Not sure.

    Thanks for any advice.
    Attached Files
    Tags: None
    • cacla
      Badcaps Veteran
      • Apr 2015
      • 442
      • /
      #2
      Re: X553M DC Power Jack solder problems

      Its ok this is ground
