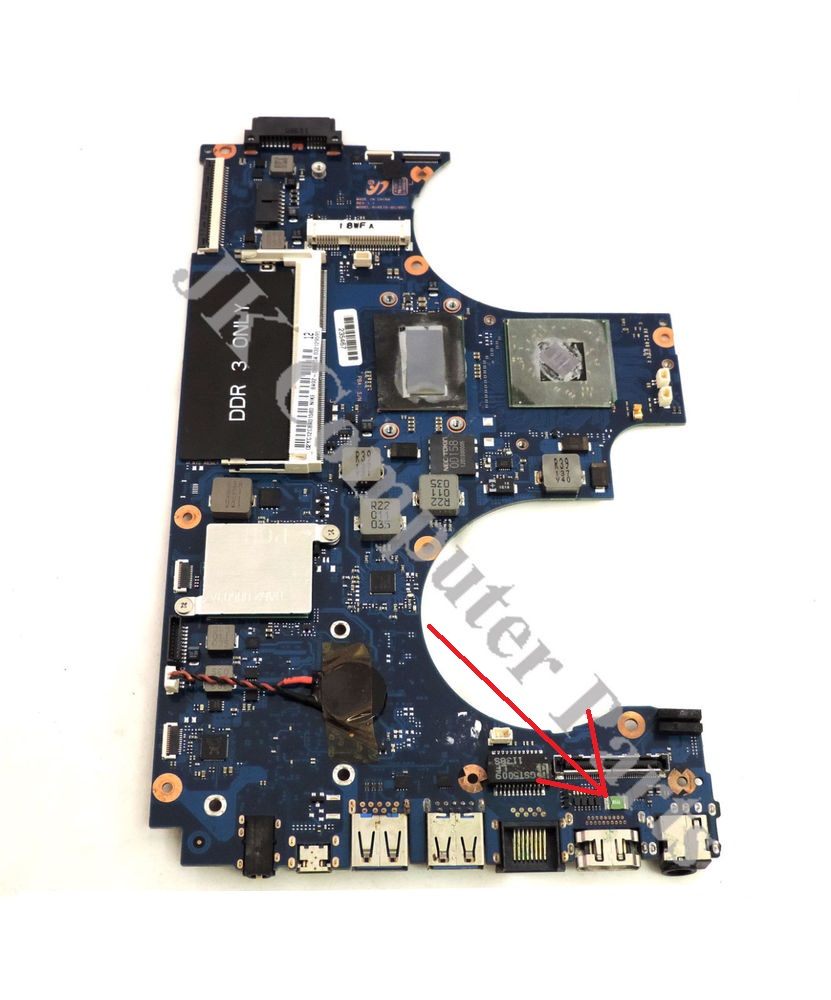

Anybody have schematic for this motherboard Nike-13b ,or I try to find fuse for backlight but no luck laptop works fine only no backlight on screen thx
-
- Prior owner tried a replacement main board. No difference.
- Samsung 2x red blinking standby LED = panel fault
- Jumpered FB_TRDY_1 (pin 1 CN1300 left. main tcon->left side buffer boards) and FB_TRDY_3 (pin 95 CN1301 right. main tcon->right side buffer boards) This allows testing individual T-Con (on main board) connection to panel on this Samsung. Found fault on left side (viewing from rear of TV)
- Each side has 2 buffer boards, disconnected left side flex between 2 buffer boards. Fault is on the left most board.
- Tape masking eventually isolated to CN1300 pin 15 (CKV4_GOA) Display
-
I came across this TV (UN65LSO3NAF) and would LOVE to replace the backlights and save it but i do not know how to access it. I attempted this repair not too long ago on a 50 inch model and cracked the display while tryjng to remove the bezel around it. Even after that display crack and i was free to do an autopsy on the remains i could not find a safer/proper way of removing the metal frame around the display. Does anyone know the trick to opening these FRAME TV displays? Im not above carefully taking a dremel to the corners but im pretty sure there is a right way to do this. I have looked... -
Hello, everyone!
A co-worker gave me a 55-inch Samsung TV model UN55MU6103F so I can try to fix the following problem... As soon as I plug it in to the wall, the TV turns on, and the display shows a few stripes all over the screen. I took off the back cover and disconnected both ribbon cables that go to the display (one at a time) so by doing that I can narrow down the bad section of the problem, but in both cases the display turns black. I know there are some voltages that I have to check (VGH, VGL, etc.) but don't know what reading each has to show. If anyone could guide me on this,... -
Samsung LN46C630K1F – Intermittent Backlight, BN44-00341B Power Board
Summary for TL-DR readers:
• Backlight is intermittent, may come on with TV boot or not. No flickering, never fails during TV on.
• Have obtained Samsung schematic & service documents - Can upload if helpful.
• Have read ALL applicable threads
• C1818 and CP820 replaced as low hanging fruit
• CN802 data taken for normal and failed BL operation. SUMMARY: Pin 2 - 5vDet = 3.52 @normal, 0.0 @BL fail. Pin 6 - EPWM = 1.631 @normal, 1.058 @BL fail.
• VCC pin (18) of PFC... -
hi guy my friend gives me this tv a 50tu8070u that has no picture at all, sound ok, backlights ok. i tought it was a bad panel, but the tv has many horizzontal lines green, i tried with the tape method but nothing change, only the green lines disappear but still no picture. You that have more good than me, do you think it s a panel or can be the main board, because my friend wants buy a new main board....but the tv respond to the remote control, have sound only no picture so i think it s a panel problem that is so broken that i cant fix with tape...or i wrong if someone can help me thanks, i give...
