Unstable voltages on the motherboard battery connector on the Lenovo BT-X103F tablet

09-21-2023, 02:46 AM

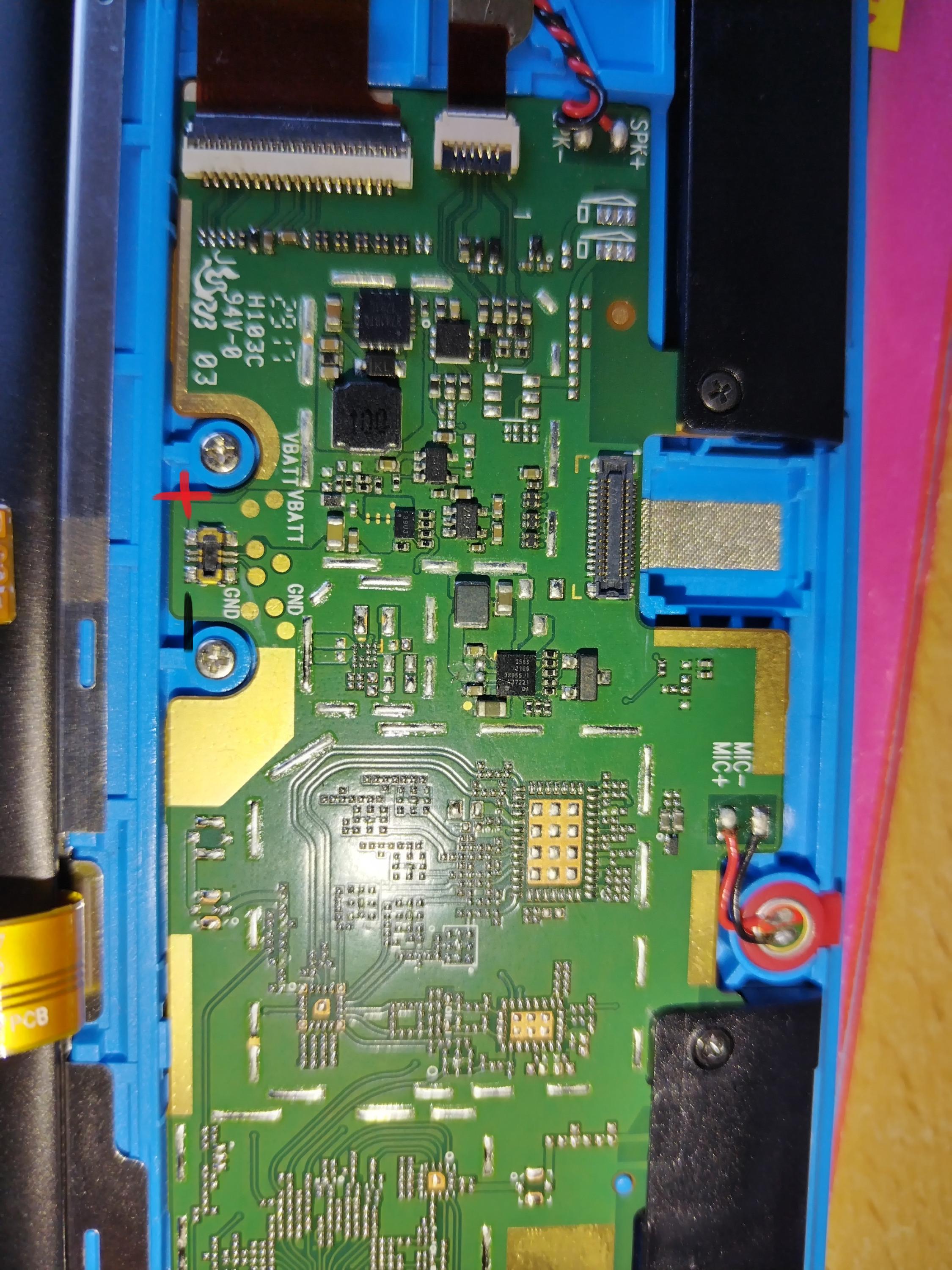

I see the voltages on the motherboard battery connector at 3.3V, below 4V they are not stabilized and rise and fall.
Where is the problem?
Thanks
