    PS4 SAC 001 CUH-1001A Component ID

    Im trying to fix this liquid damaged PS4 thats been sitting on my shelf for some time. It appears there are some missing SMDs around the motor control IC. The system works but doesnt load discs.

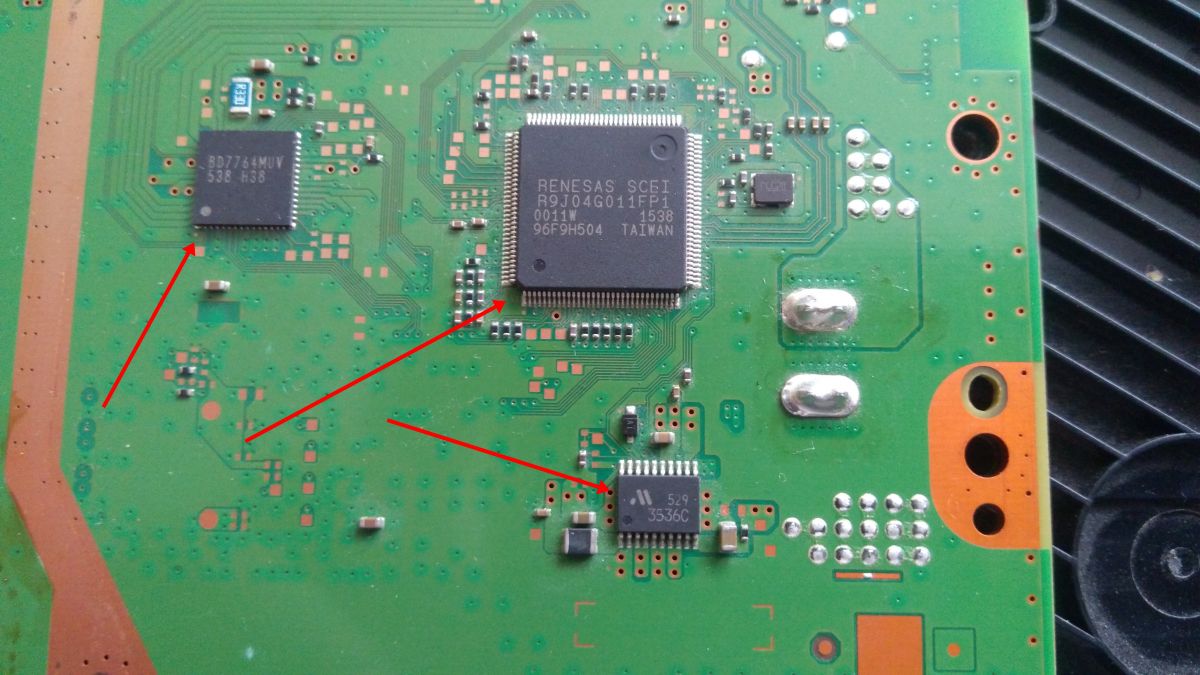

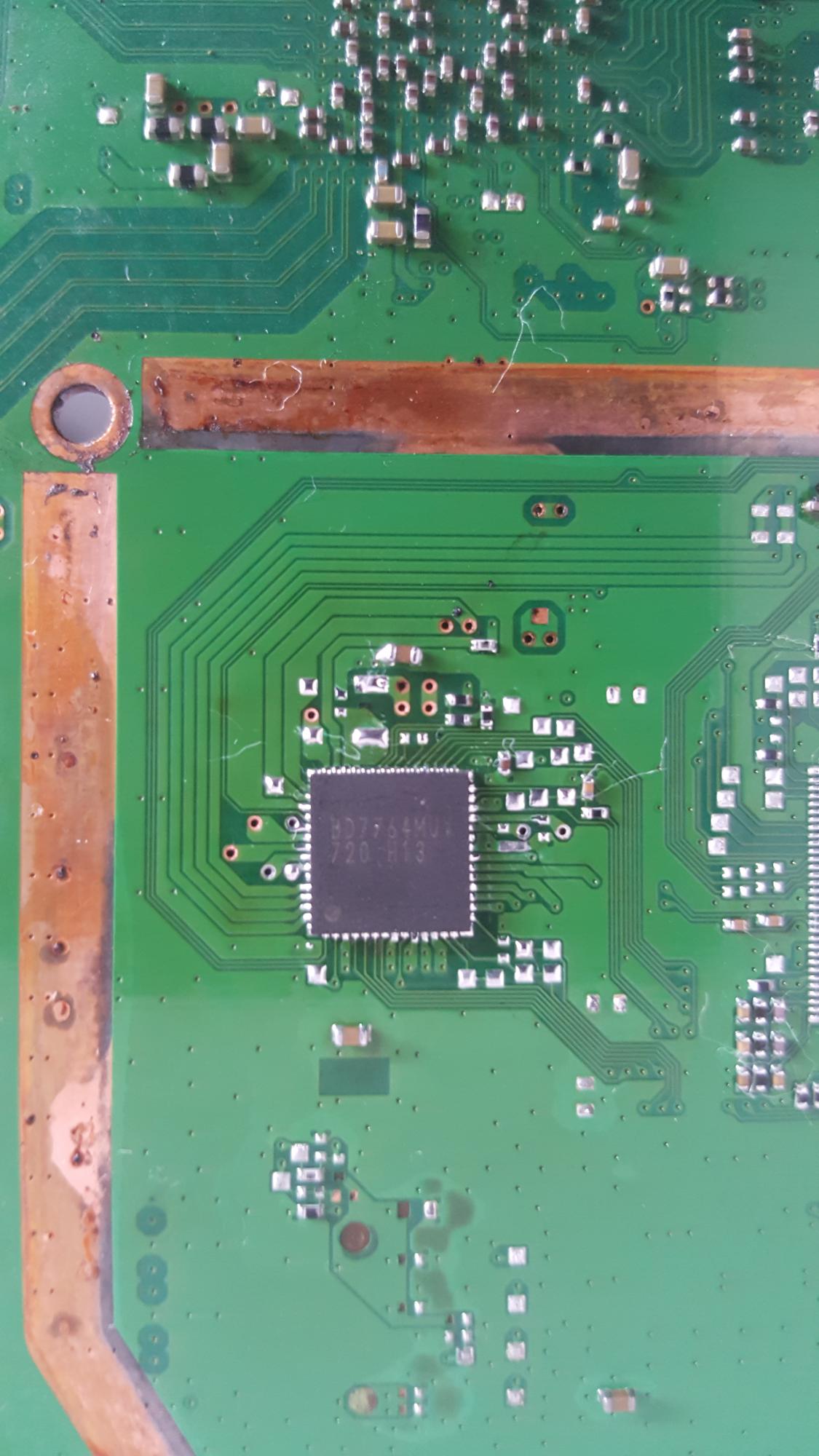

    I included 2 of the best pics I could find and both of them appear to have SMDs in different positions. The large resistor looks like its labeled 330. Does anyone have a board they can check for proper location and values?

    Thanks for any help.

    Imgur links if you need to zoom in the pic
    https://imgur.com/xyznfDO
    https://imgur.com/a/fJRsHwz

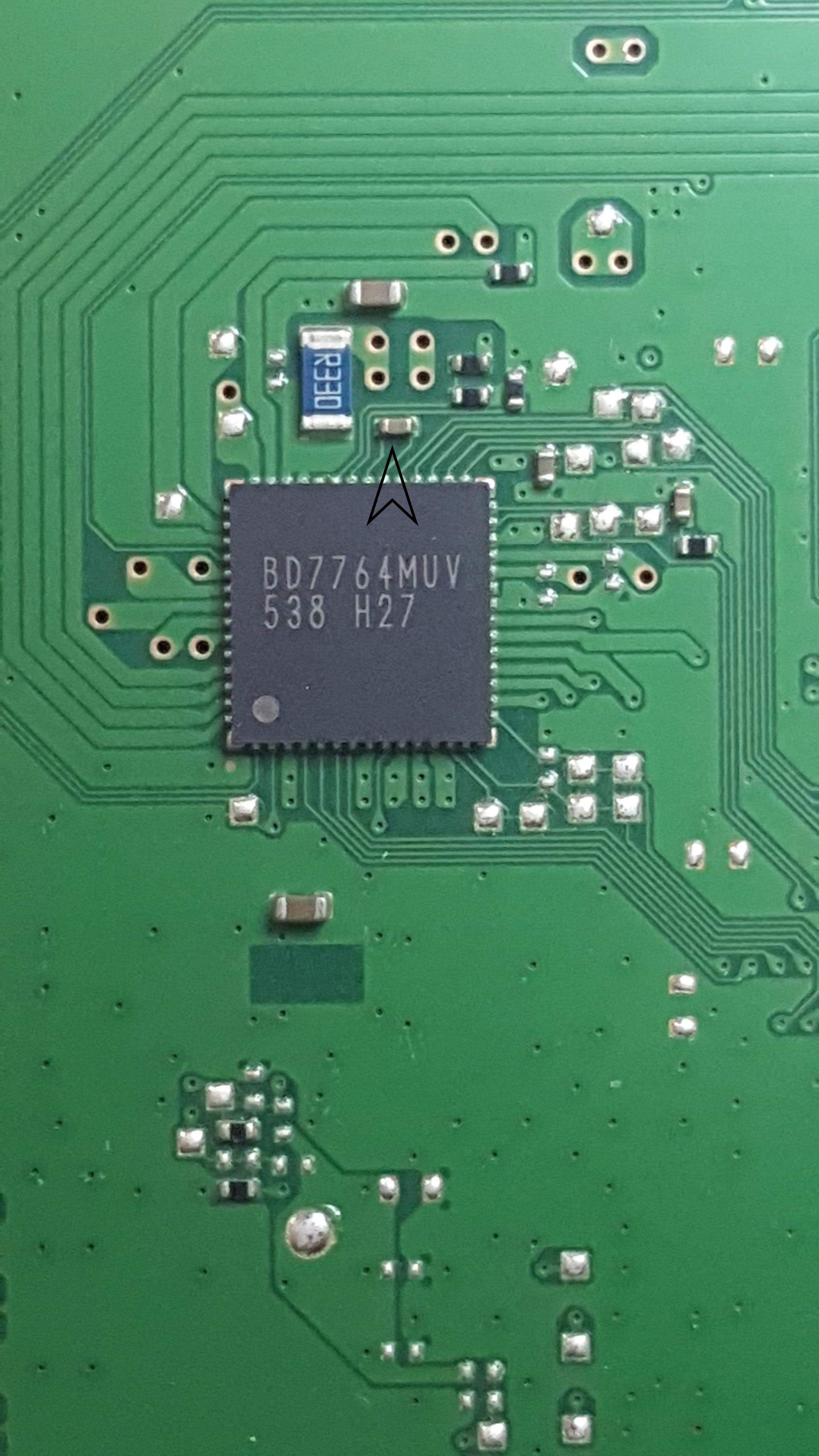

    I found a better pic. Large resistor is R330. What about that smaller SMD next to it?
    https://imgur.com/lse4b2k
    Attached Files
    Last edited by m4a2t0t; 10-29-2021, 08:21 PM.
    Tags: None
    • m4a2t0t
      Badcaps Veteran
      • Mar 2013
      • 276
      • USA
      #2
      Re: PS4 SAC 001 CUH-1001A Component ID

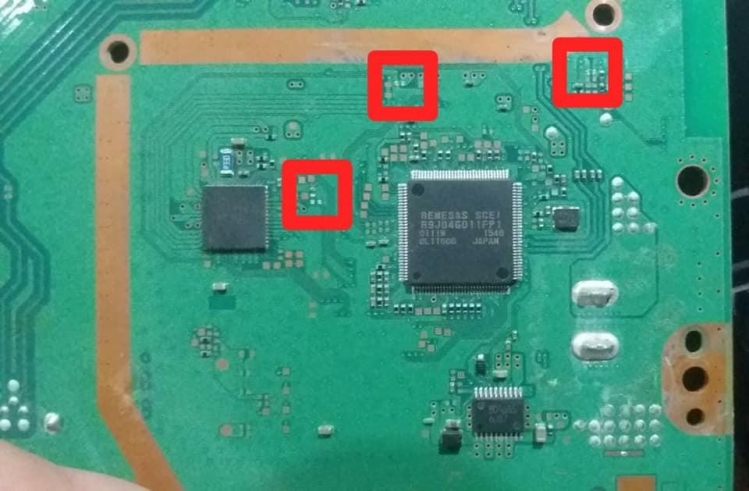

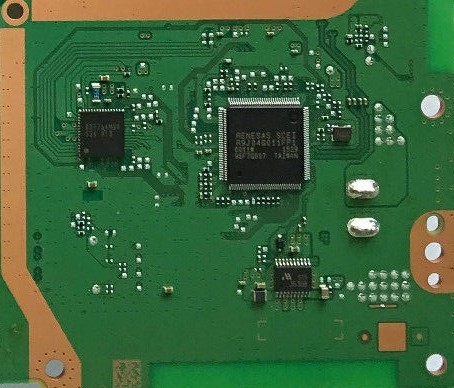

      I found a picture I took of another board.What do you think will work to replace that missing SMD? thanks
      Attached Files
