    IPISB-AG Rev 1.03 schematic

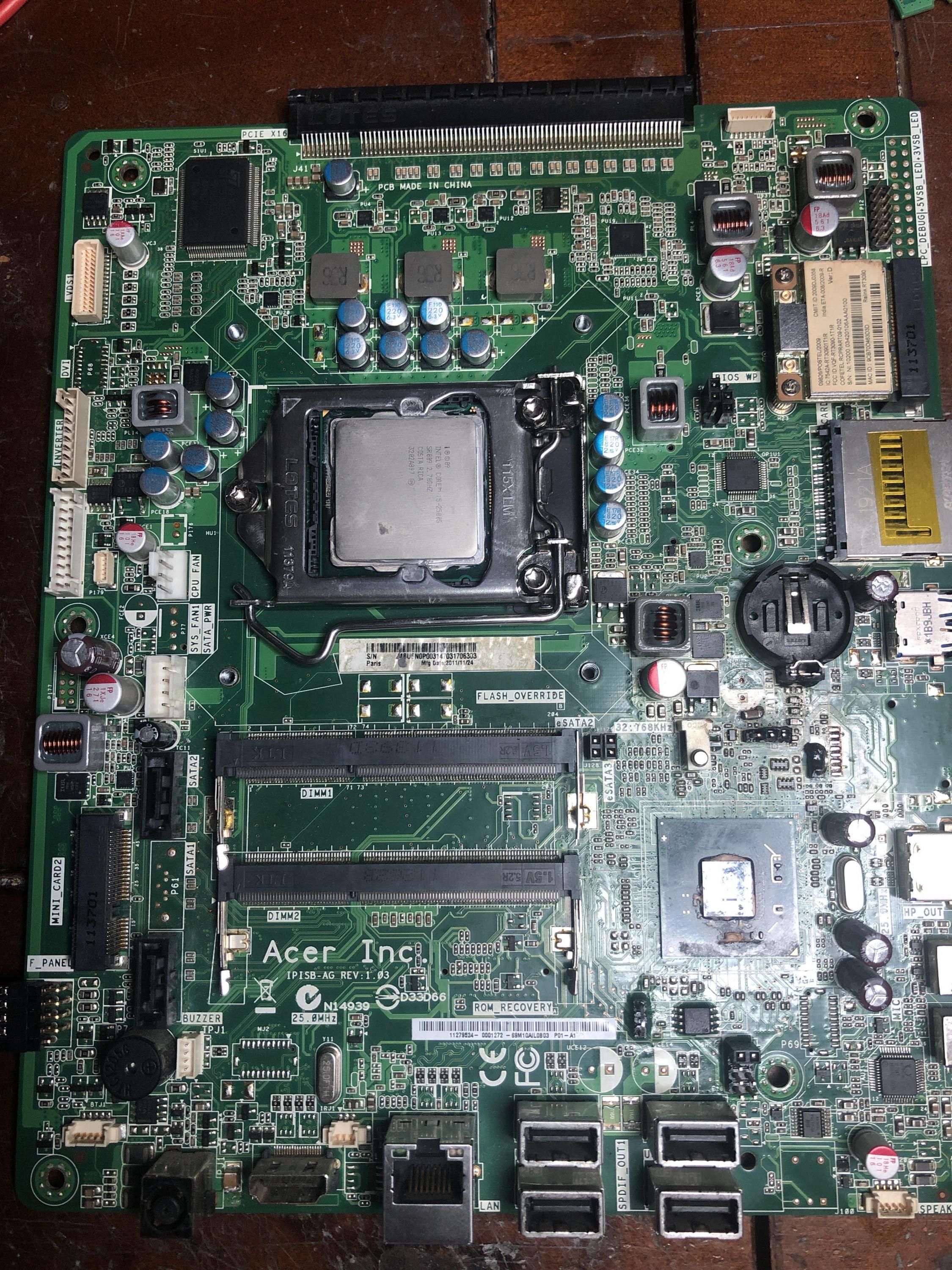

    I have this motherboard. When I connect to current, the current led switches on and slowly goes off. If I disconnect and wait a little, it will do same. Or if I breach the bios battery and connect to current, it will switch on and goes off slowly.
    Can anyone give me helping hand? The Board name is IPISB-AG Rev 1.03. I need schematic also.
    Attached Files
    Tags: None
    • aboumohamed
      Badcaps Veteran
      • Dec 2018
      • 258
      • algeria
      #2
      Re: IPISB-AG Rev 1.03

      Originally posted by emotechsys
      I have this motherboard. When I connect to current, the current led switches on and slowly goes off. If I disconnect and wait a little, it will do same. Or if I breach the bios battery and connect to current, it will switch on and goes off slowly.
      Can anyone give me helping hand? The Board name is IPISB-AG Rev 1.03. I need schematic also.
      I think it's the same 1.03 and 1.04
      Attached Files

        Comment

        • emotechsys
          New Member
          • Oct 2021
          • 5
          • Spain
          #3
          Re: IPISB-AG Rev 1.03

          Originally posted by aboumohamed
          I think it's the same 1.03 and 1.04
          Thanks. let me go through it.
