    troubleshooting broken RX 480 4GB Nitro+

    Hi guys.

    im trying to fix my RX 480 4GB Nitro+. This card run fine before and the card suddenly died and my pc can't turn on when the card is attached. The pc run fine when i pull out the card, it seems like i have short on the card.

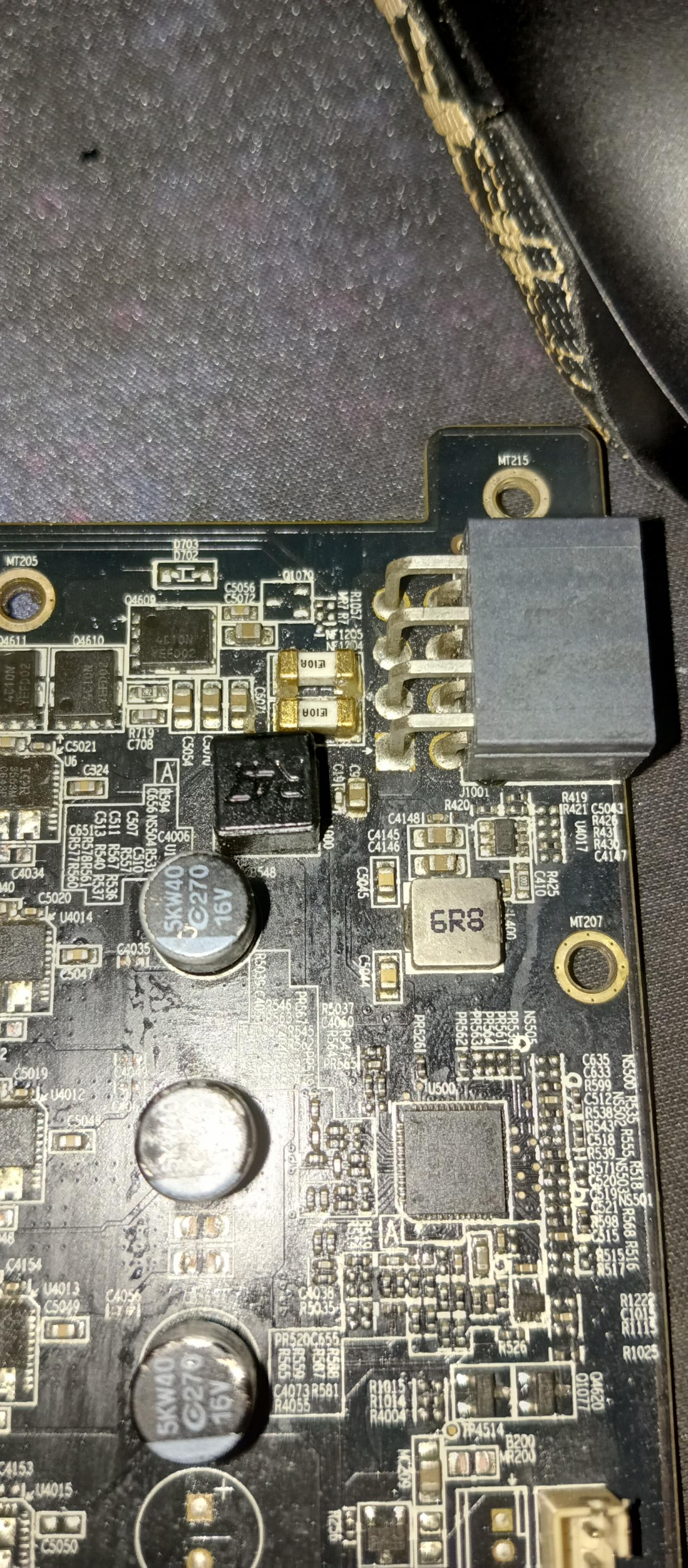

    i look at the card and measured the fuse near the 12volt power with multimeter and the result the fuse is blown.

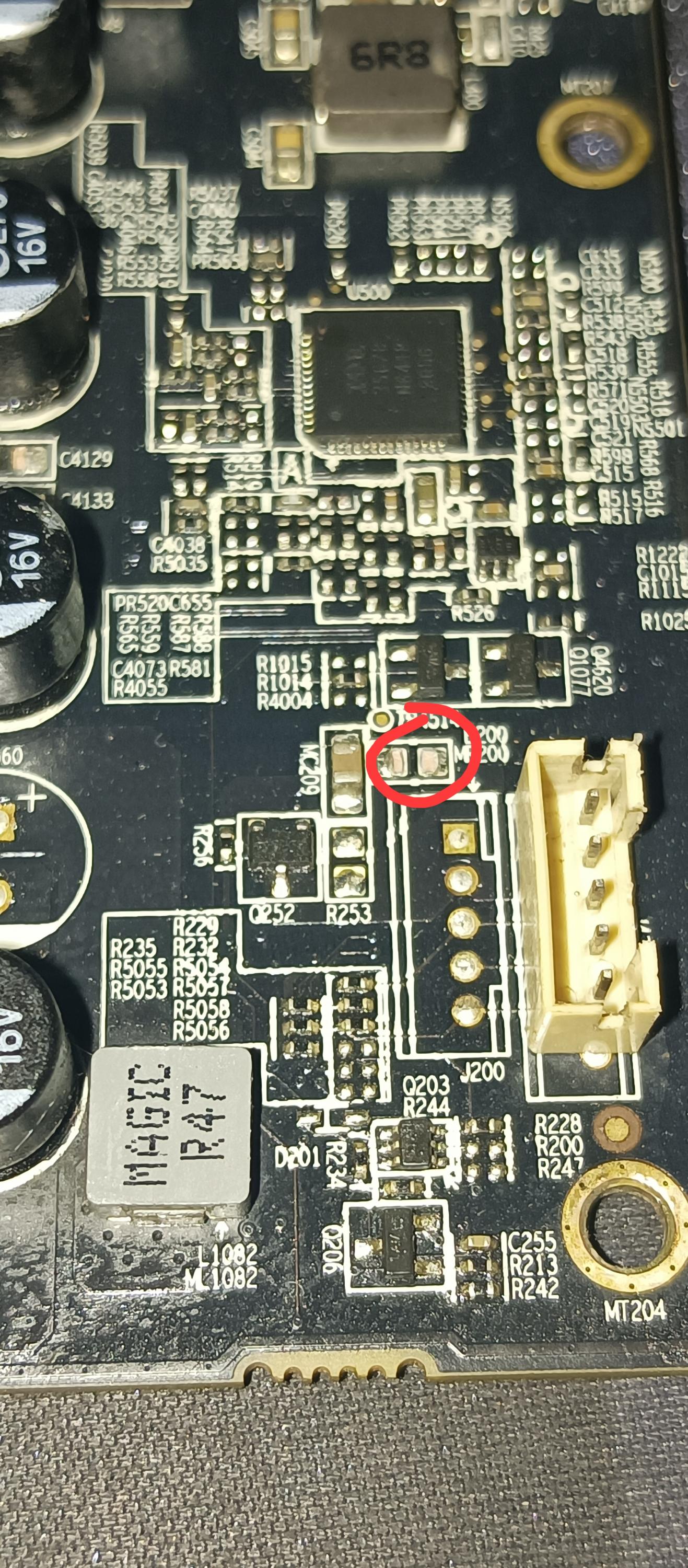

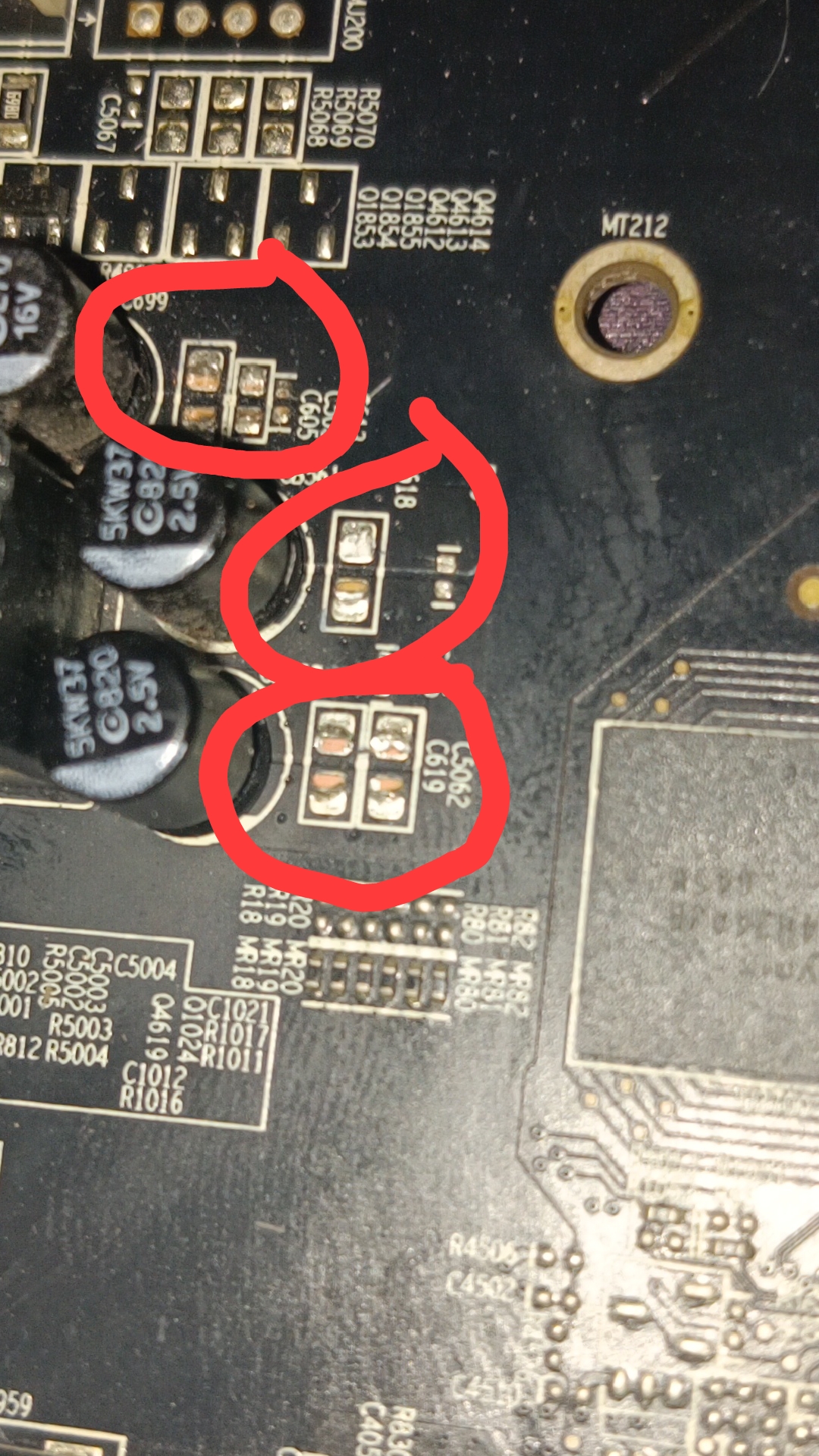

    i also have missing components on the card and i don't know what it is. it looks like a capacitor maybe it's blown from the short.



    I've tried to sort this myself but am a bit out of my depth and don't know where to start or in which order to test components.

    If someone could point me in the right direction or maybe talk me through what I should do next.
    Attached Files
    Tags: None
    • ktmmotocross
      Boardkiller
      • Feb 2014
      • 3578
      • slovakia
      #2
      Re: troubleshooting broken RX 480 4GB Nitro+

      u have shorted some of core powering mosfets. that missing components is not missing, dont worry about them

        Comment

        • Erinka
          New Member
          • Oct 2023
          • 4
          • Netherlands
          #3
          Re: troubleshooting broken RX 480 4GB Nitro+

          i'm looking the pcb at this video https://www.youtube.com/watch?v=EPwsLOX7Y_k&t=184s and it seems to have some component at it while mine is not

            Comment

            • ktmmotocross
              Boardkiller
              • Feb 2014
              • 3578
              • slovakia
              #4
              Re: troubleshooting broken RX 480 4GB Nitro+

              dont worry about that and worry how u find that shorted mosfet

                Comment

                • Erinka
                  New Member
                  • Oct 2023
                  • 4
                  • Netherlands
                  #5
                  Re: troubleshooting broken RX 480 4GB Nitro+

                  Originally posted by ktmmotocross
                  dont worry about that and worry how u find that shorted mosfet
                  how can i find the shorted mosfet?
                  i'm new at this kind of stuff, but i know how to use multimeter.

                    Comment

                    • ktmmotocross
                      Boardkiller
                      • Feb 2014
                      • 3578
                      • slovakia
                      #6
                      Re: troubleshooting broken RX 480 4GB Nitro+

                      watch more youtube videos before this

                        Comment
