    Transformer Identfication

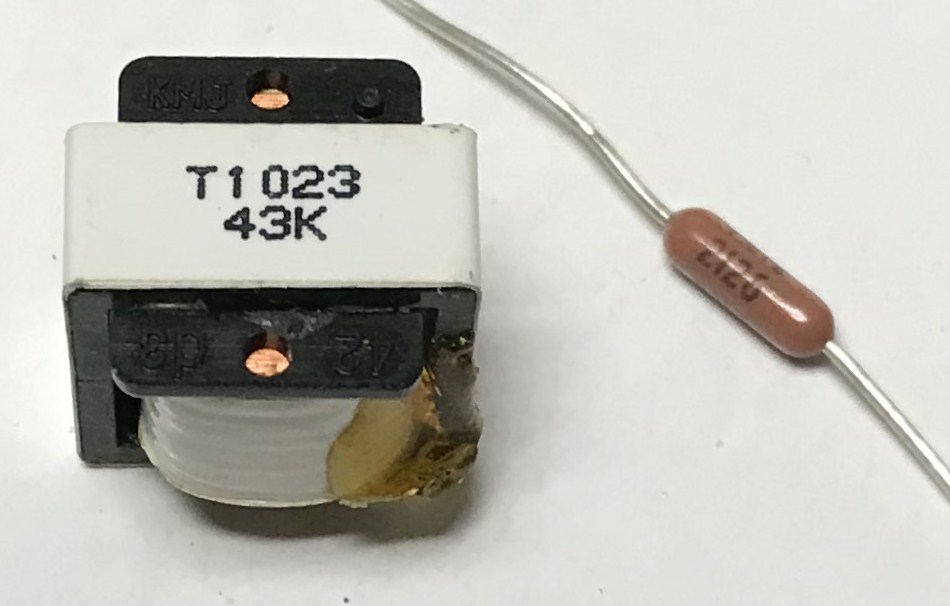

    I don't know which section to put this question, but I frequent here and know you guys are most knowledgeable, so here goes. This transformer(?) is out of a Termiflex HT-2000 hand pendant. The resistor is shown to correlate size. It fell out when I opened the case. In lieu of trying to repair the broken case and leads, I wish to replace it. Can anyone help me to identify. The device operates on 5VDC. This is not my area of expertise as I have no area of expertise. Thank you.
    Attached Files
    Tags: None
    • eccerr0r
      Solder Sloth
      • Nov 2012
      • 8682
      • USA
      #2
      Re: Transformer Identfication

      Usually custom device and repairing leads/salvaging another from like device is the only way to do it. Photograph board and where the transformer used to go would get some ideas how to find a possible substitute.

        Comment

        • MEB
          Badcaps Veteran
          • Sep 2013
          • 371
          • USA
          #3
          Re: Transformer Identfication

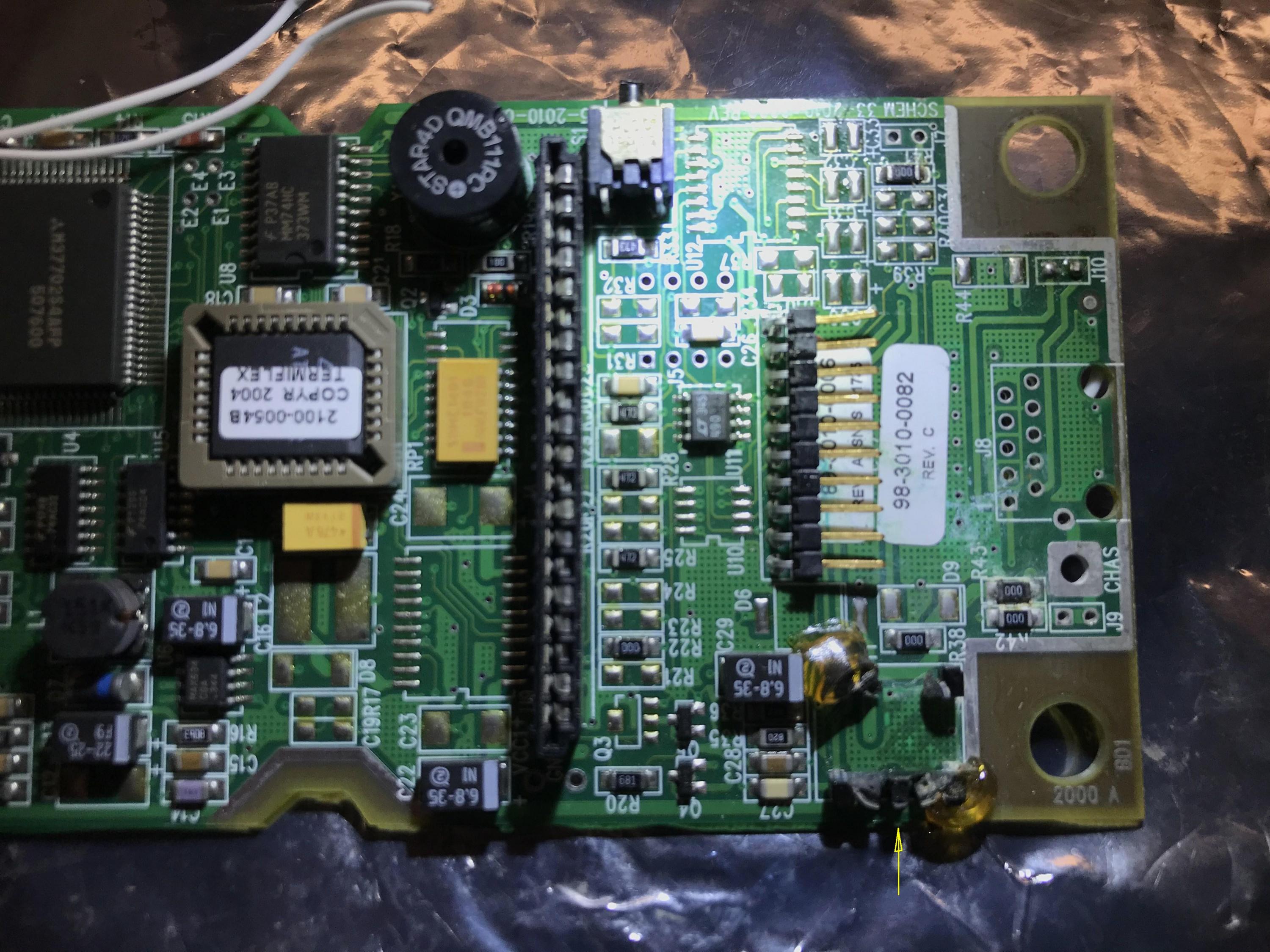

          Thank you. Here is a picture of a portion of the board. I could remove all the remnants if that would be of any help.
