    Request datasheet for i8996c chip!

    Hello, I have a faulty screen with an I8996c chip getting very hot, I would like to know what this chip is doing, so I request datasheet as I did not find anything online. Or schematic for NCPD-TS156-014 V1.0 board (screen model is LM156LFCL) would be also very helpful. Thank you in advance
    Last edited by StellaT93; 09-13-2023, 01:57 AM.
    Tags: None
    • SMDFlea
      Super Moderator
      • Jan 2018
      • 21880
      • UK
      #2
      Re: Request datasheet for i8996c chip!

      Post the make and model number of this faulty screen please

      .
      All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

        Comment

        • StellaT93
          New Member
          • May 2023
          • 5
          • Romania
          #3
          Re: Request datasheet for i8996c chip!

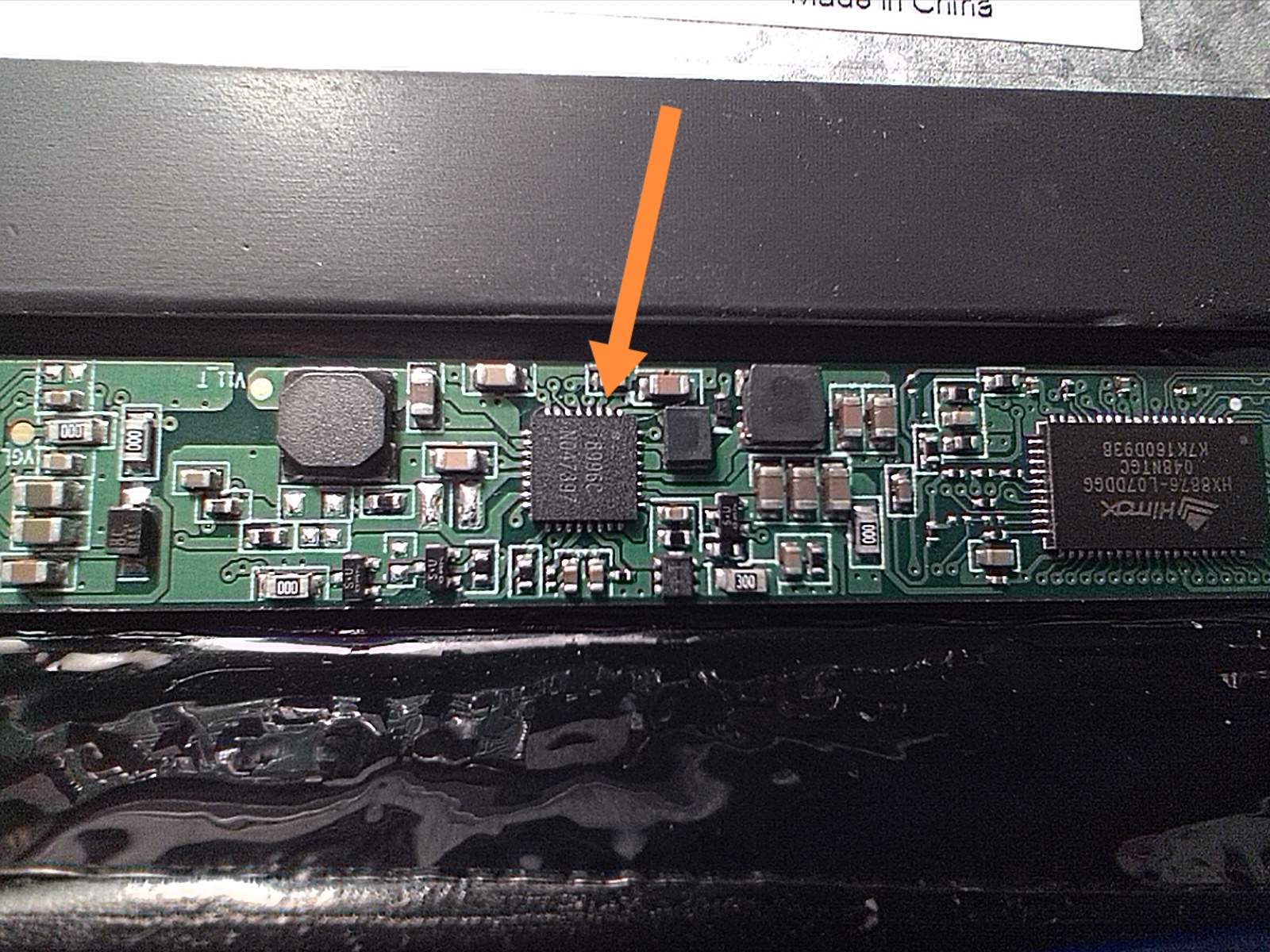

          Model number is LM156LFCL and on the picture you see the supposedly faulty chip...
