    Logitech z623 volume controller

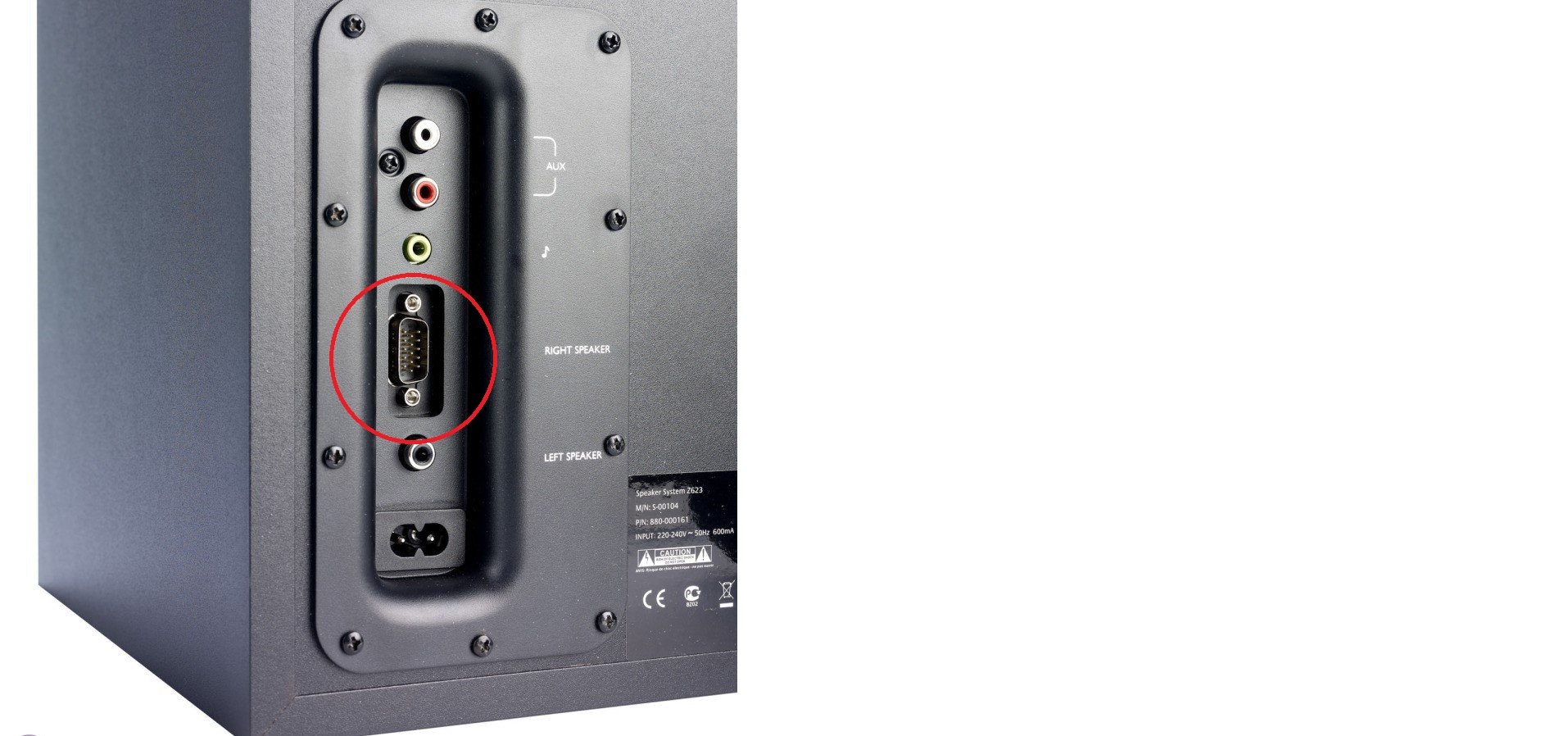

    I have lost my Logitech z623 speaker with volume controller.
    so i need its schematic or pin connection to ON the system.
    Friend please share here any Information about this
