    Amplifier Subwoofer Gale 3090

    Hello guys ,

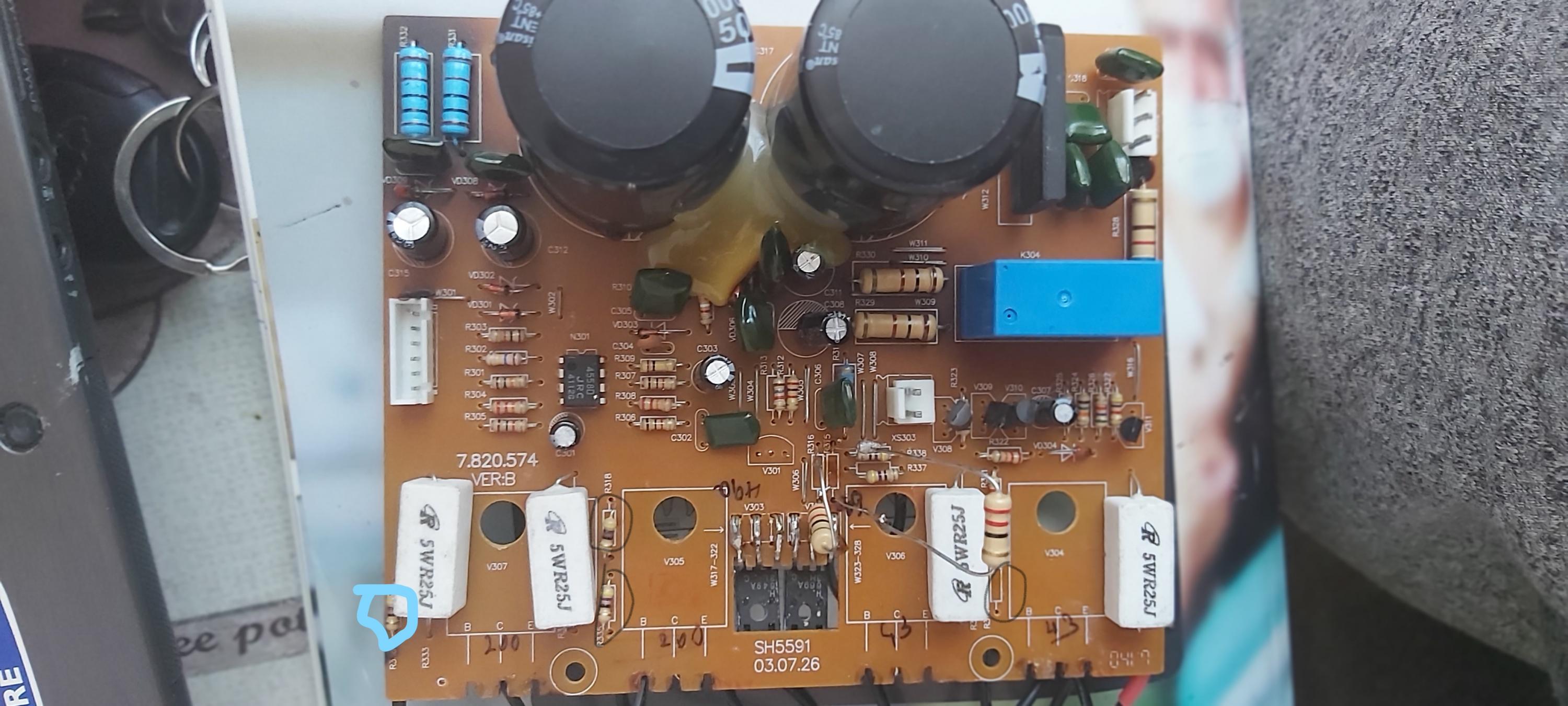

    So first time I took this subwoofer with amplifier damaged "no power " , I checked the amplifier board and I found two power resistor missing and some smoked board around , I've changed them and now I got power but some smoke comes out from other resistor I can't find a diagram . The amplifier board is poor exfoliates.
    Please if is someone here who can help me I need a diagram because I found some missing resistor I've put them back and now when I turn on I get smoke from 47r 1/4w resistors .
    This using Toshiba 2sa1943 transistor
    Attached Files
    Tags: None
    • petehall347
      Badcaps Legend
      • Jan 2015
      • 4422
      • United Kingdom
      #2
      Re: Amplifier Subwoofer Gale 3090

      whatever happened to it i wonder ?

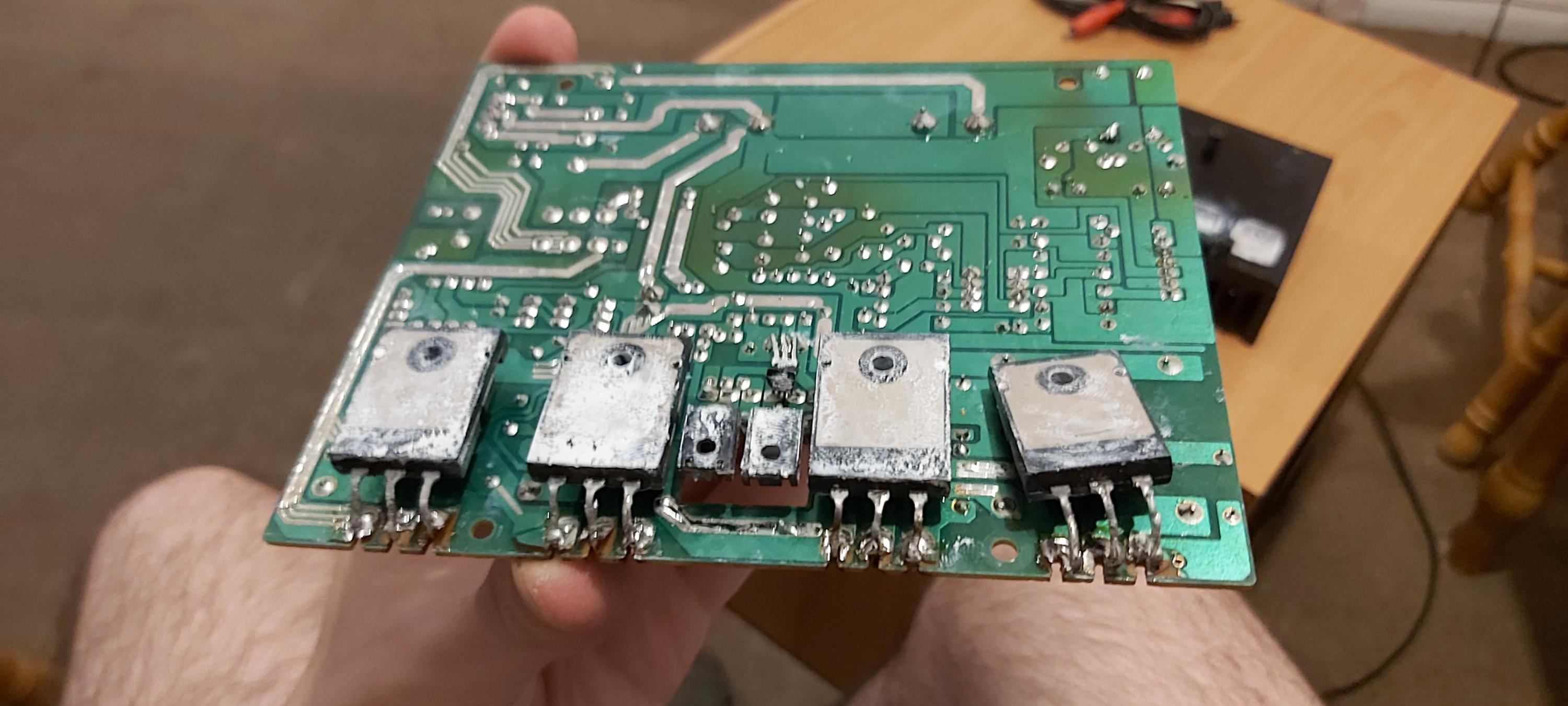

      i see traces ripped off or burned off . solder short . mica insulators in the wrong places . bodged in wires .

        Comment

        • stefan94stefan
          Member
          • Feb 2017
          • 15
          • UK
          #3
          Re: Amplifier Subwoofer Gale 3090

          I don't know someone else tried to fix it .

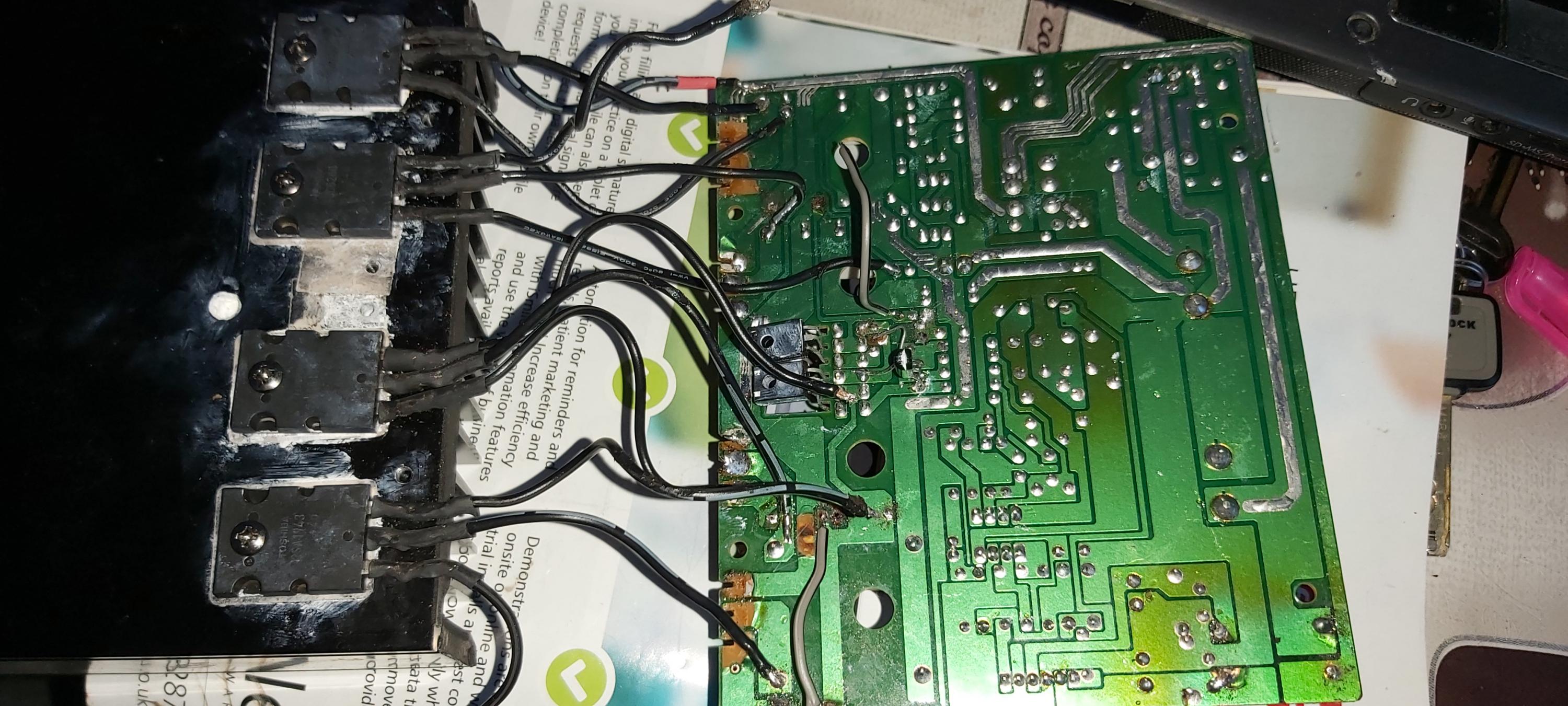

          I fit the wires because all transistor comes out from board when I disassembled .

            Comment

            • stefan94stefan
              Member
              • Feb 2017
              • 15
              • UK
              #4
              Re: Amplifier Subwoofer Gale 3090

              Originally posted by petehall347
              whatever happened to it i wonder ?
              i see traces ripped off or burned off . solder short . mica insulators in the wrong places . bodged in wires .

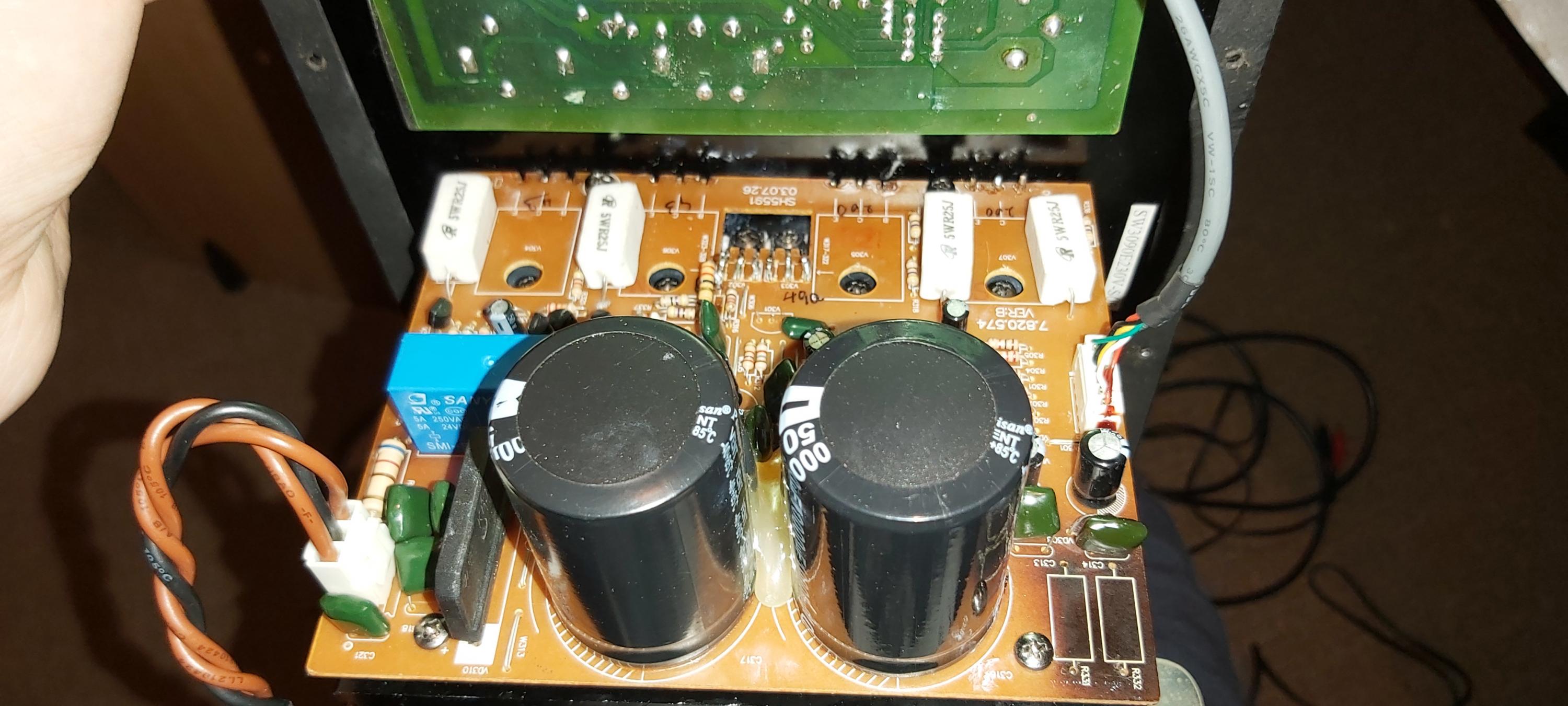

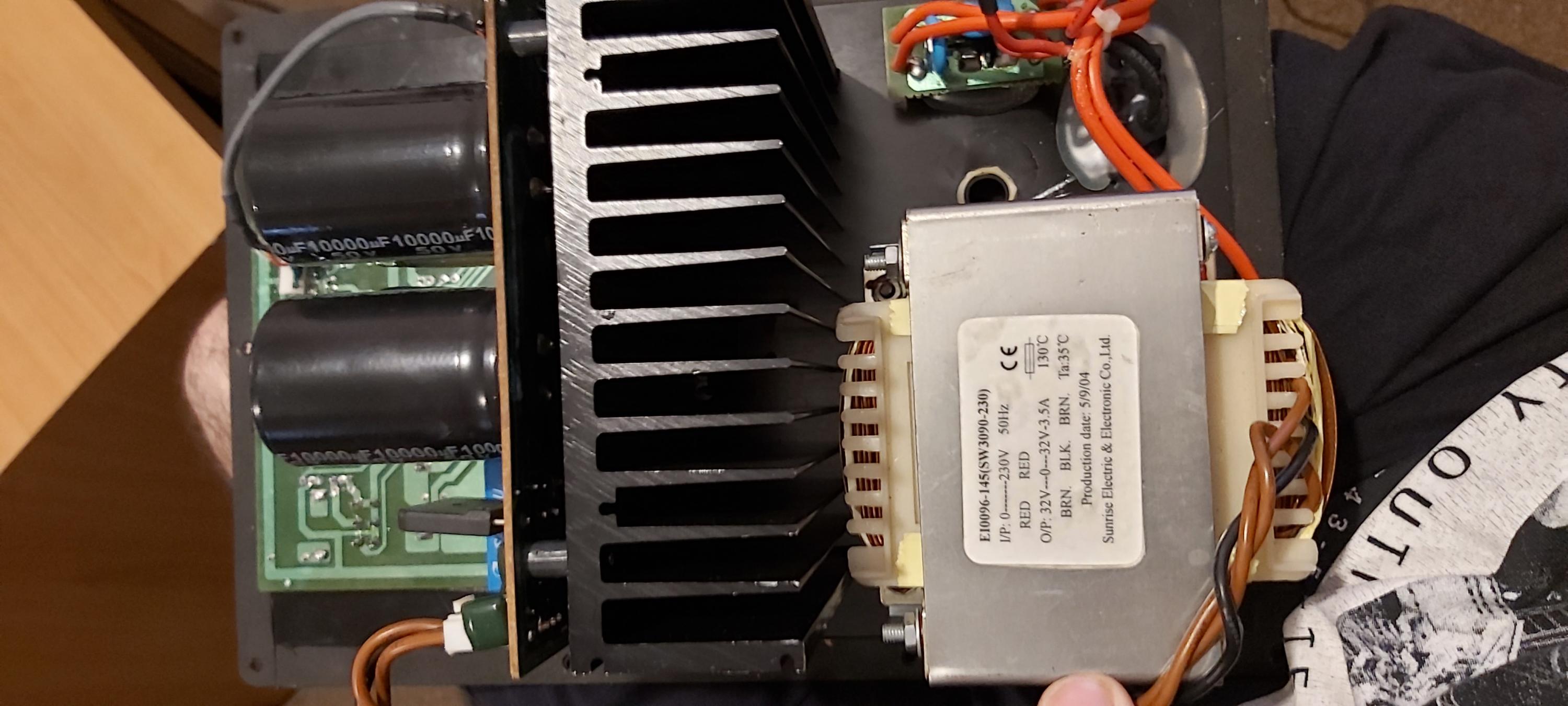

              This is how it looks when I opened for the first time.
              Attached Files

                Comment

                • petehall347
                  Badcaps Legend
                  • Jan 2015
                  • 4422
                  • United Kingdom
                  #5
                  Re: Amplifier Subwoofer Gale 3090

                  best check all transistors for shorts
