    Request for Phonic powerpod 1860 plus powered mixer service manual and/or schematics

    Model: Phonic powerpod 1860 plus
    ​Board: pod1860 v11 master pcb
    (number above this): 0D02005Q0100G

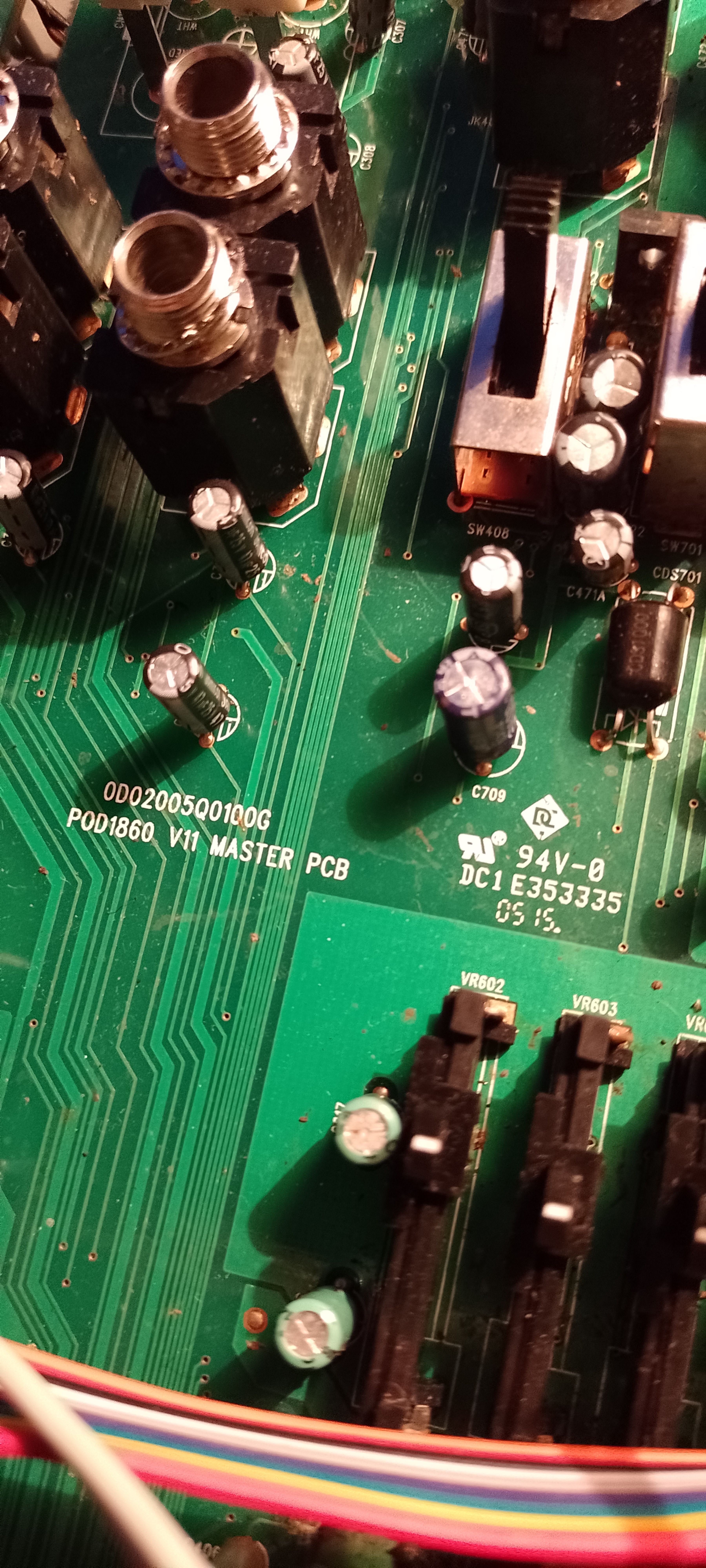

    I attached photo of the specific board which I need to check.

    Thanks in advance, guys/gals.
